Description

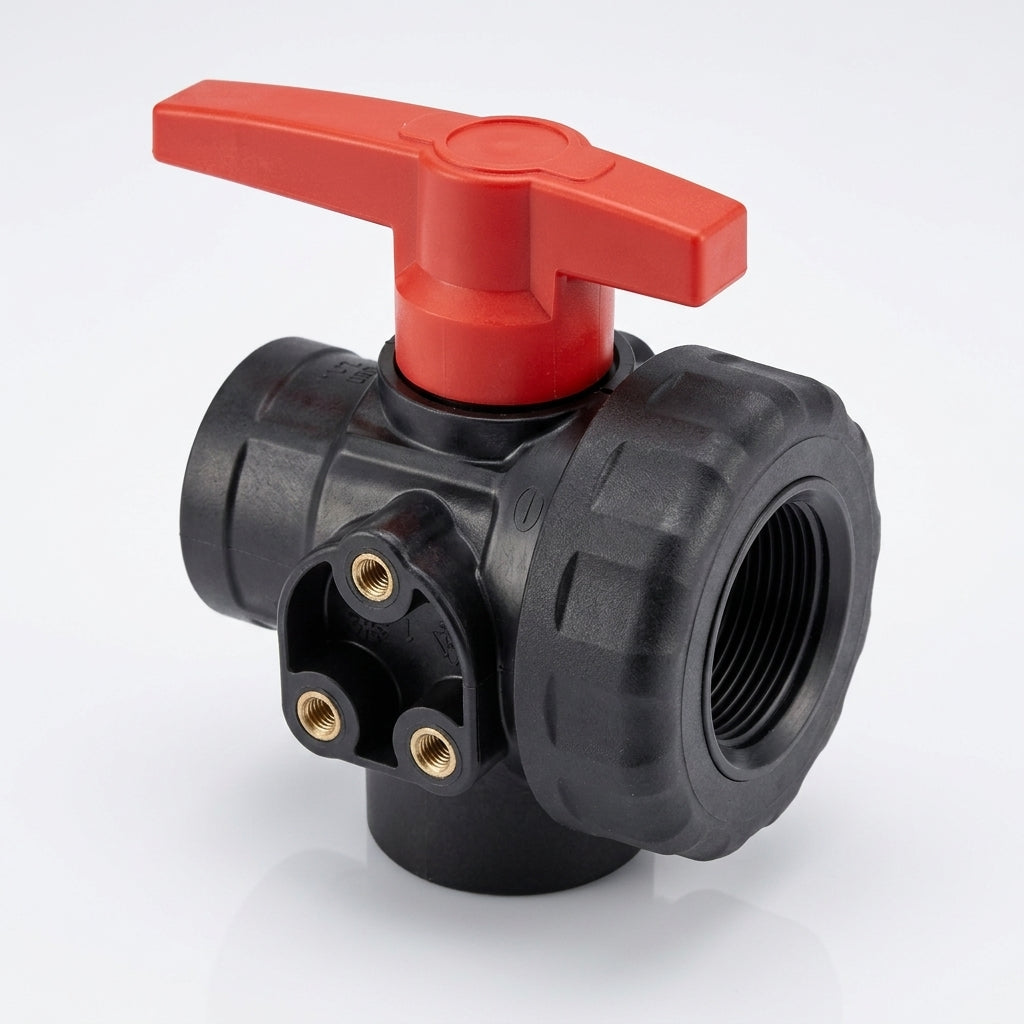

Three-port polypropylene ball valve with 1 1/2" BSP female connections and L-port configuration for selectable flow control.
This fibreglass-reinforced polypropylene valve combines chemical resistance with robust pressure handling. The L-port design allows flow to be directed or shut off between the main inlet and two outlet paths. Teflon ball seats and EPDM seals ensure reliable long-term operation across a wide range of media.
Key Features
- 16 bar maximum working pressure
- Fibreglass-reinforced polypropylene body
- Teflon ball seats for smooth operation
- EPDM elastomer seals
- L-port configuration enables flow shutoff
- Two M8 mounting threads for installation flexibility
Specifications
- Port size: 1 1/2" BSP female
- Port arrangement: 3-way L configuration
- Maximum pressure: 16 bar
- Material: Fibreglass-reinforced polypropylene
- Seal material: EPDM
- Ball seat material: Teflon
- Mounting: 2× M8 threads
Applications
- Chemical distribution and dosing systems
- Irrigation and water management
- Food and beverage processing
- Industrial fluid transfer and control
- Corrosive media handling
