Description

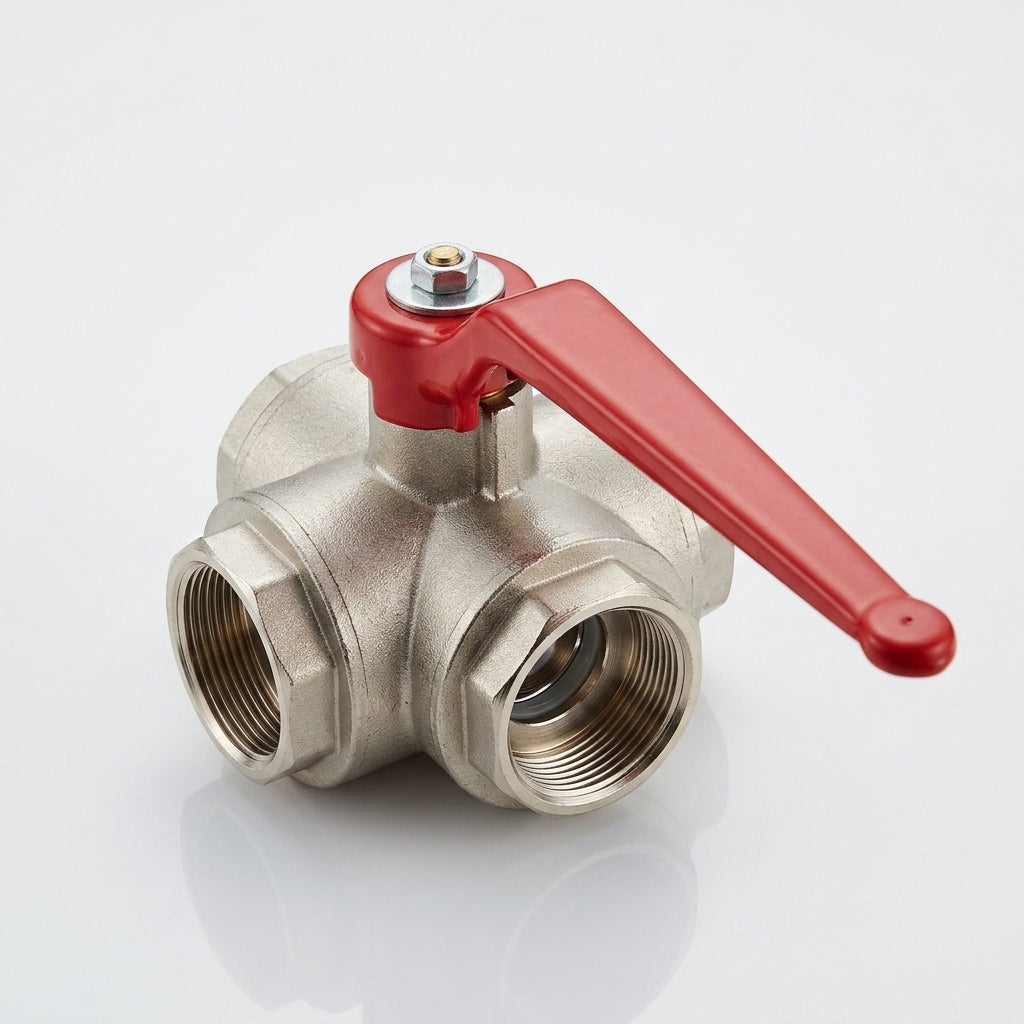

Three-way L-pattern ball valve with 1 1/2″ BSP female ports, designed for moderate-pressure fluid distribution and diversion applications.
This nickel-chromium plated brass valve combines robust construction with reliable sealing technology. The L-port configuration enables flow to be directed between two branch lines whilst isolating the main inlet, making it ideal for bypass, selector, and changeover duties in industrial systems.
Key Features
- 1 1/2″ BSP female threaded connections on all three ports
- 20 bar maximum working pressure
- 80°C maximum fluid temperature
- L-port flow path for selective line routing
- Nickel-chromium plated brass body for corrosion resistance
- PTFE ball seats and Viton seals for durability
Specifications
- Port size: 1 1/2″ BSP female
- Valve type: 3-way ball valve, L configuration
- Pressure rating: 20 bar maximum
- Temperature range: 0°C to 80°C
- Body material: Nickel-chromium plated brass
- Seat material: PTFE
- Seal material: Viton
Applications
- Fluid line diversion and selector duties
- Bypass valve installations
- Industrial changeover and isolation systems
- Pump discharge routing
- Multi-circuit flow control
