Description

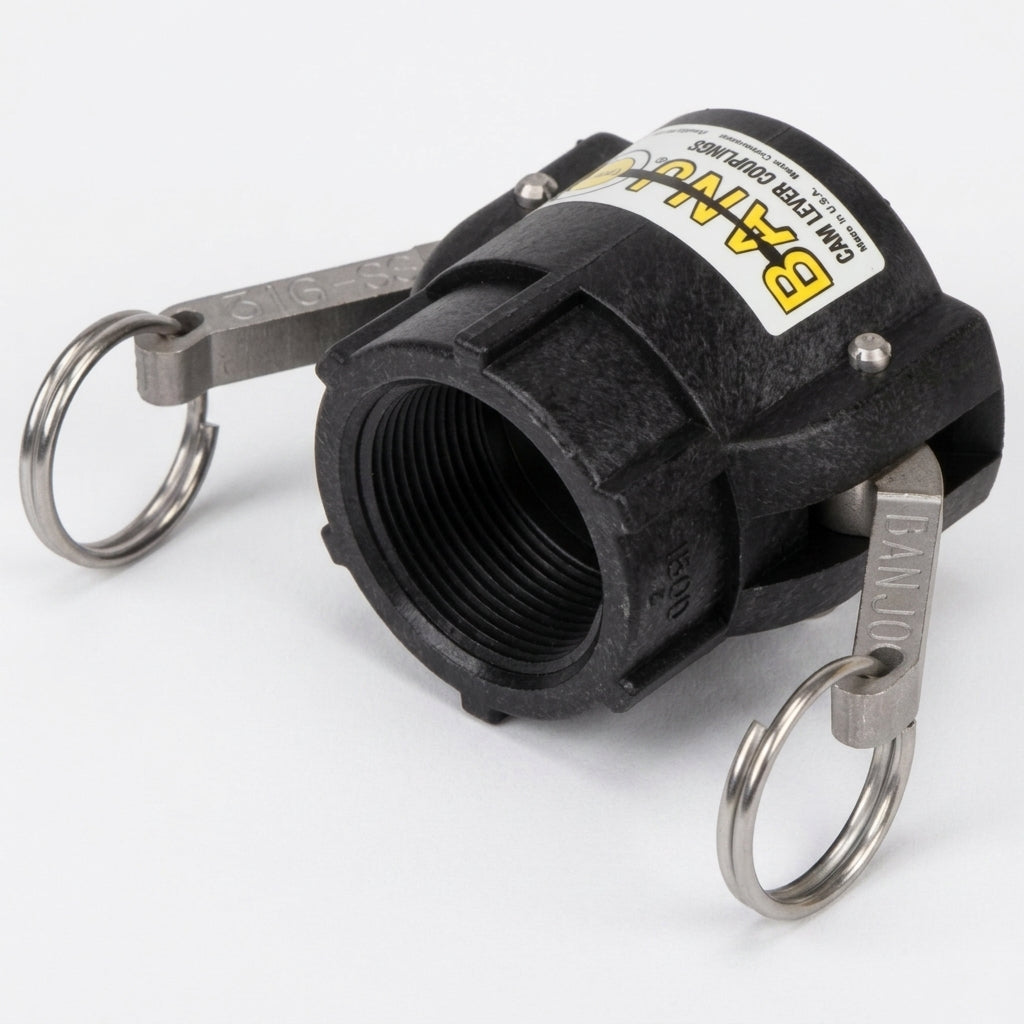

Glass-reinforced polypropylene cam lever coupler with 1 1/2" female thread and coupling connection.
This robust coupling solution features a lightweight, corrosion-resistant design combining glass-filled polypropylene body with stainless steel arms, rings and pins. The integral EPDM gasket ensures secure sealing for pressurised fluid transfer across multiple temperature ranges, making it suitable for both temporary and permanent installation in agricultural, industrial and commercial applications.
Key Features
- Glass-reinforced polypropylene body for durability and chemical resistance
- Stainless steel arms, rings and pins for extended service life
- EPDM gasket for reliable pressure sealing
- Quick-connect cam lever mechanism for tool-free engagement
- Temperature-rated pressure capabilities from -17.8°C to 47.8°C
- Compatible with standard 1 1/2" adaptors and fittings
Specifications
- Female thread: 1 1/2"
- Coupler size: 1 1/2"
- Material: Glass-reinforced polypropylene with stainless steel components
- Gasket material: EPDM
- Maximum pressure at -17.8°C: 6.4 bar
- Maximum pressure at 21.2°C: 8.6 bar
- Maximum pressure at 47.8°C: 4.8 bar
Applications
- Agricultural spray systems and chemical transfer
- Water distribution and tank connection
- Temporary and permanent fluid coupling
- Industrial process liquid handling
- Portable tank and pump systems
