Description

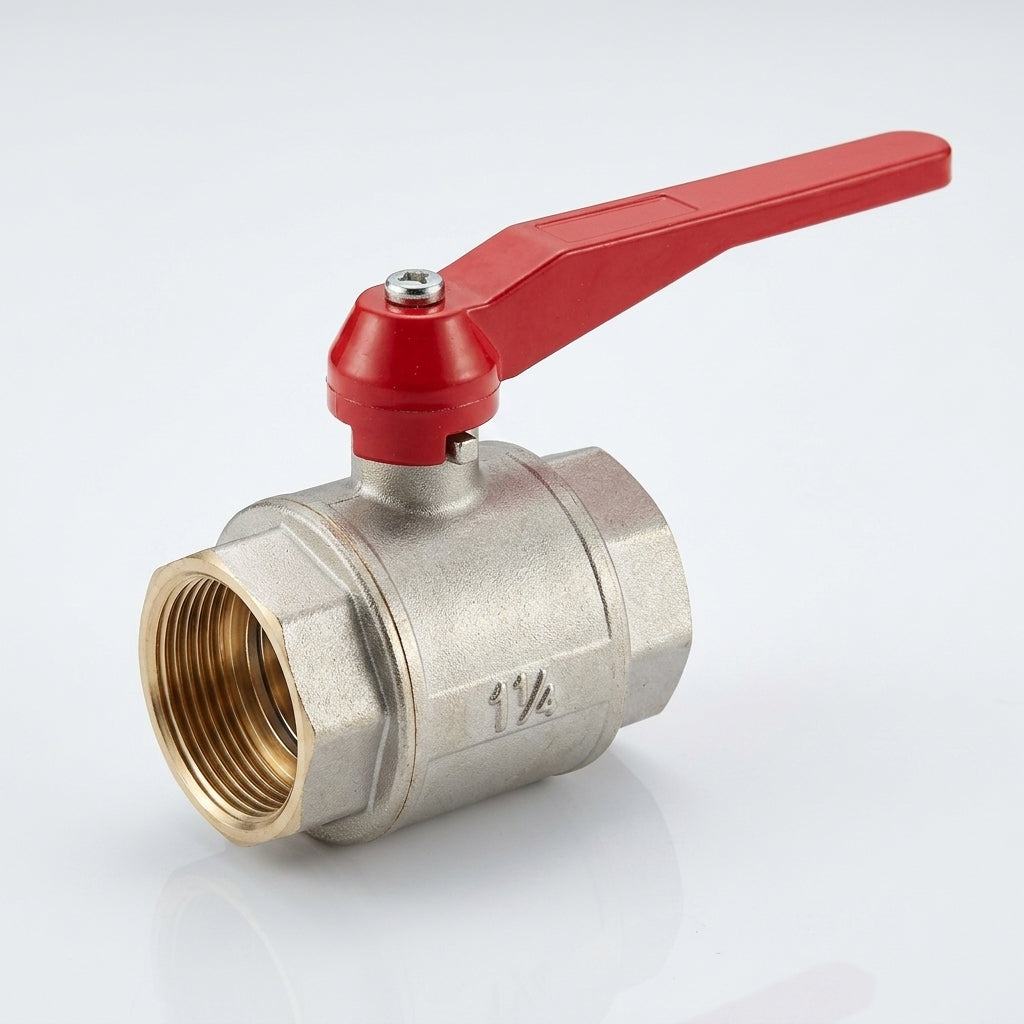

Nickel-plated brass lever ball valve with 1 1/4" BSP female connections for two-way flow control.
This full-bore ball valve combines durability with ease of operation, featuring a lever handle for quick on-off control. The plated brass body resists corrosion whilst PTFE ball seats ensure reliable sealing performance across a wide range of industrial and commercial applications.
Key Features
- 1 1/4" BSP female thread both ends
- Lever handle for rapid manual operation
- Nickel and chromium plated brass construction
- PTFE ball seats for dependable sealing
- Compact 82mm body length
- Maximum pressure rating 20 bar
Specifications
- Connection type: 1 1/4" BSP female × 1 1/4" BSP female
- Maximum working pressure: 20 bar
- Maximum fluid temperature: 80°C
- Body length: 82mm
- Material: Plated brass
- Ball seat material: PTFE

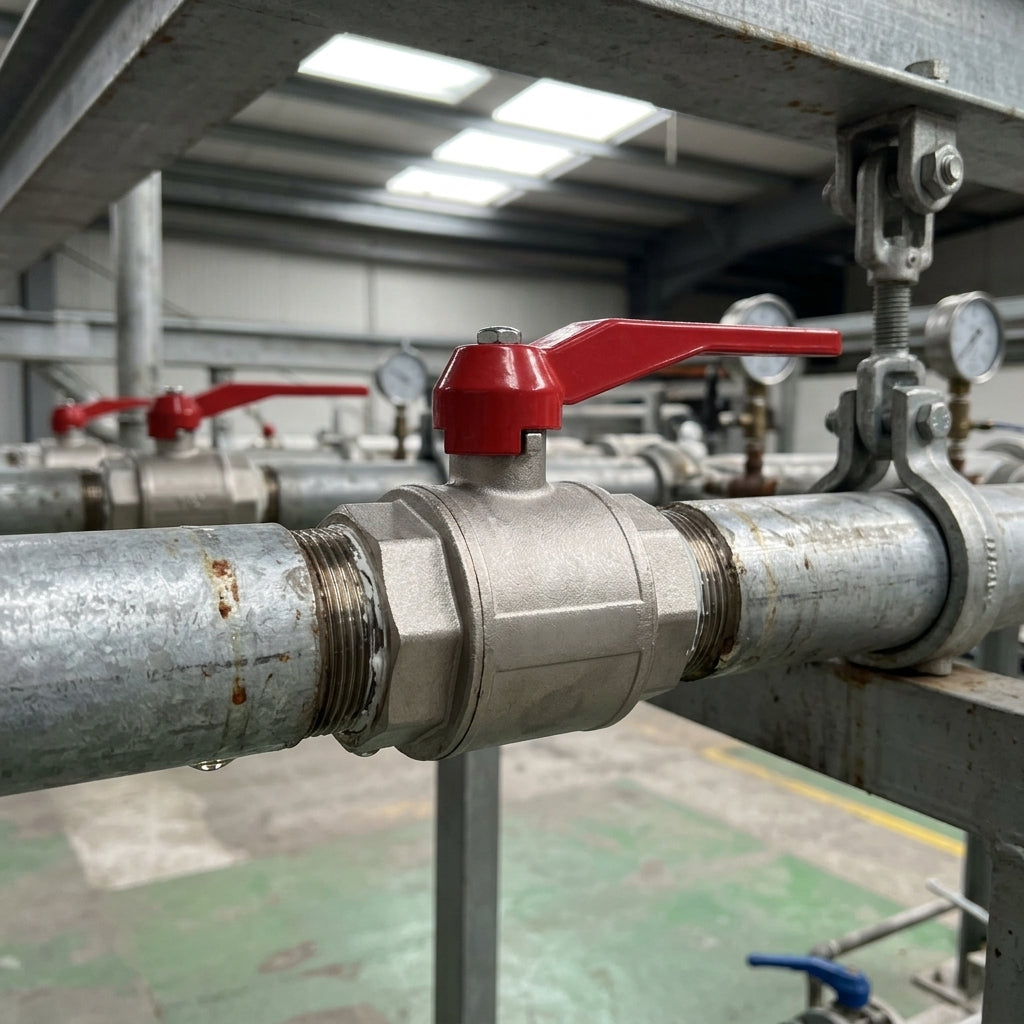

Applications
- Water supply and irrigation systems
- Industrial fluid transfer
- HVAC and heating systems
- General industrial shut-off control
- Pressure line isolation
