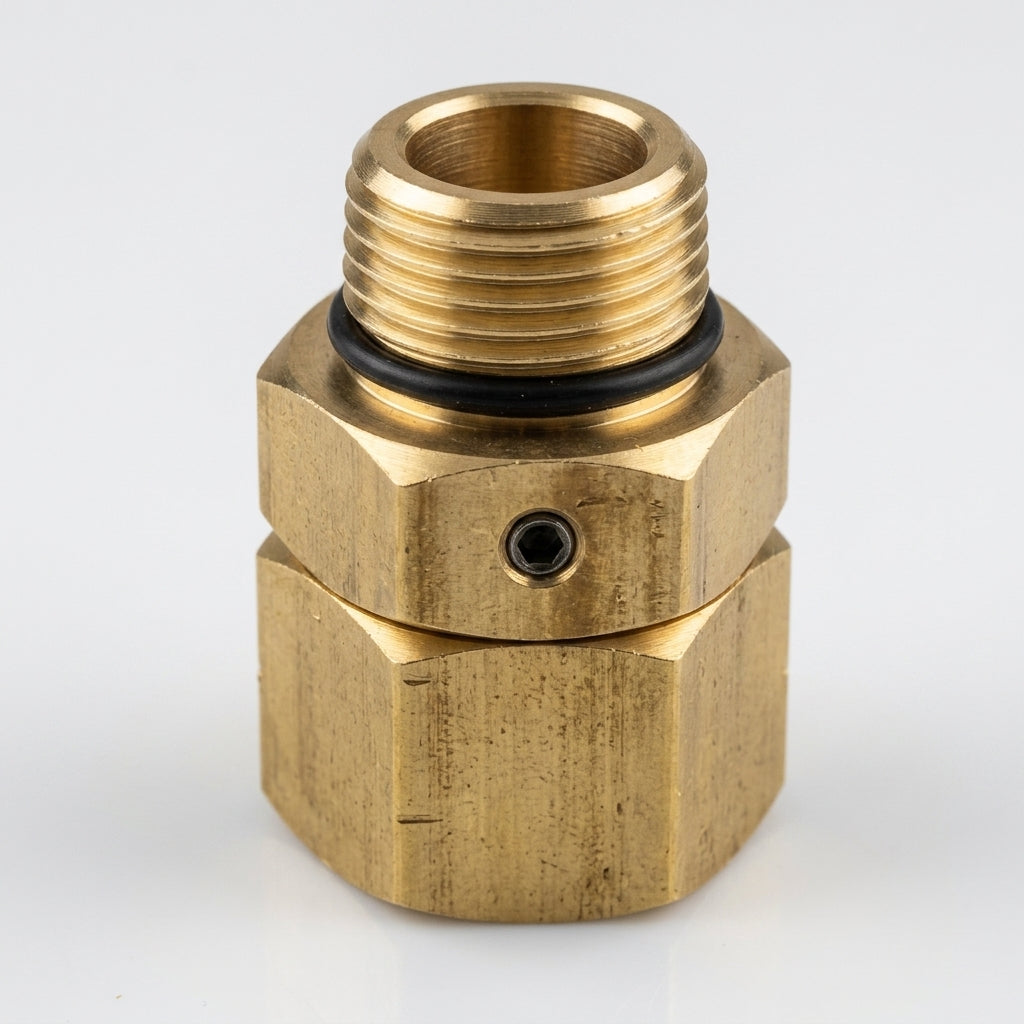

1/2" BSP Brass Swivel Coupling, 24 Bar, 100 Lpm

Threaded brass swivel coupling with male and female BSP connections for high-flow applications.

This large-flow swivel fitting accommodates up to 100 litres per minute whilst maintaining a 24 bar pressure rating. The rotating design reduces stress on connected hose assemblies and minimises vibration-related wear. Brass construction with elastomer seals ensures reliable performance across a wide temperature range.

Key Features

• 1/2" BSPF inlet, 1/2" BSPM outlet configuration
• 24 bar maximum rated pressure
• 100 lpm maximum flow capacity
• Brass body with FKM (Viton) and NBR (Buna) seals
• 30 rpm maximum rotational speed
• Operating temperature range to 100°C

Specifications

• Connection size: 1/2" BSP both ends
• Material: Brass
• Seal type: FKM and NBR elastomers
• Pressure rating: 24 bar
• Flow capacity: 100 lpm
• Temperature rating: 100°C maximum
• Rotational speed: 30 rpm maximum

Applications

• Pump discharge and suction hose connections
• High-flow cleaning and transfer systems
• Industrial fluid handling installations
• Mobile and temporary deployment systems
• Vibration-sensitive hose assemblies
