1/2" BSP Brass Swivel Coupling – 250 Bar, 40 Lpm

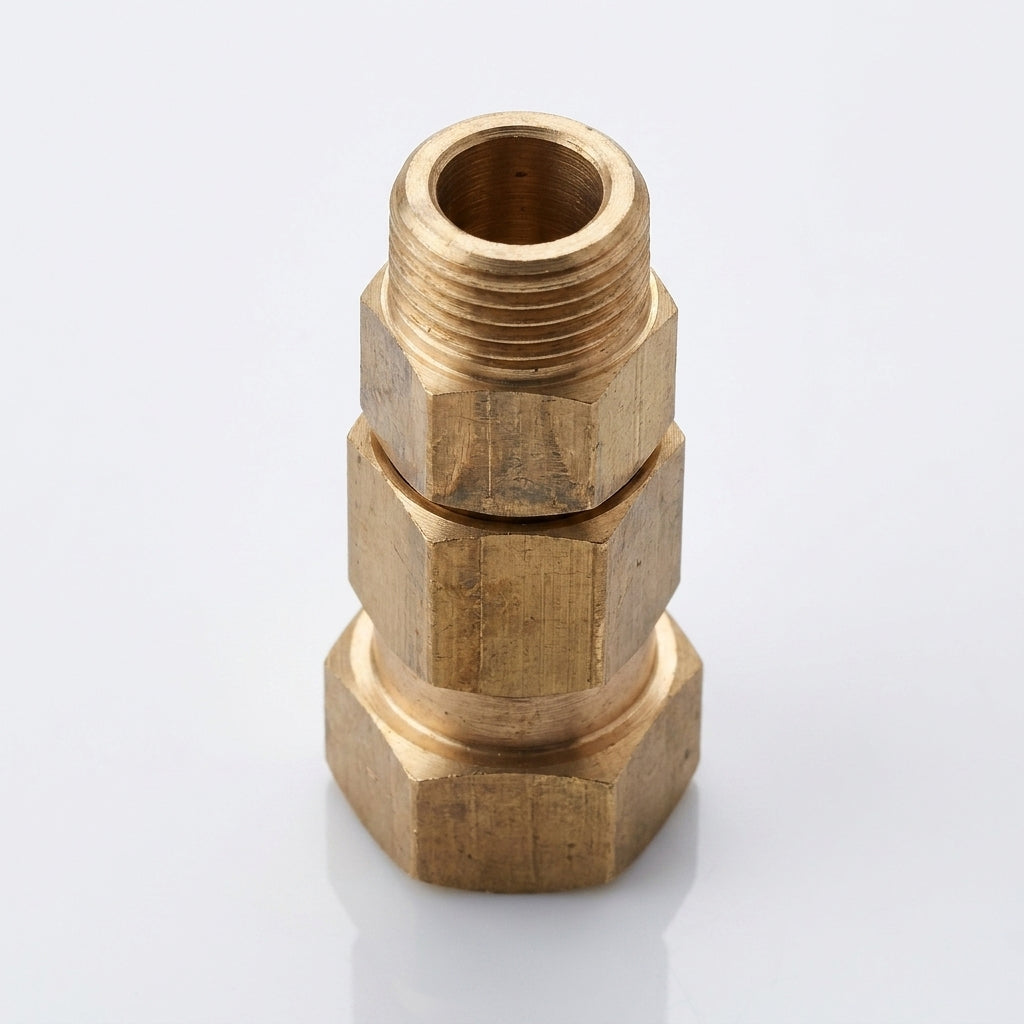

Brass swivel coupling with 1/2" BSP male and female ports, designed for high-pressure hydraulic systems and fluid transfer applications.

This swivel fitting enables 360° rotation without leaking, making it essential for applications where hoses or equipment need flexible positioning. The brass construction provides excellent corrosion resistance, whilst FKM seals ensure reliable performance across a wide temperature range.

Key Features

• 360° swivel action prevents hose kinking and tangling
• 250 bar working pressure rating
• Flow capacity up to 40 litres per minute
• Brass body for durability and corrosion resistance
• FKM (Viton) seals for temperature stability
• Male and female 1/2" BSP taper connections

Specifications

• Inlet: 1/2" BSP male taper
• Outlet: 1/2" BSP female
• Maximum working pressure: 250 bar
• Maximum flow rate: 40 Lpm
• Maximum working temperature: 90°C
• Rated temperature: 160°C
• Body material: Brass
• Seal material: FKM (Viton)

Applications

• Hydraulic systems and machinery

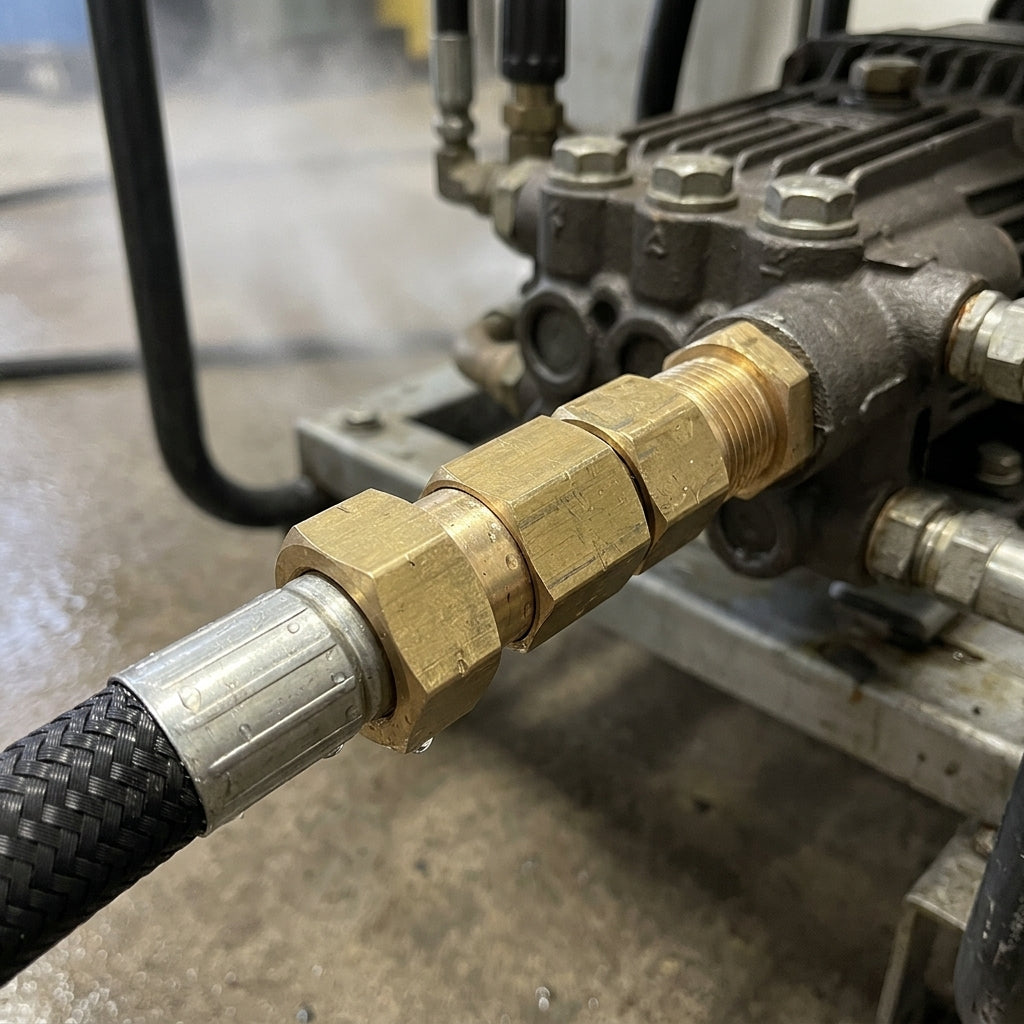

• Pressure washing and cleaning equipment
• Fluid transfer and circulation systems
• Industrial pump connections
• Mobile equipment and vehicles requiring flexible hose routing
