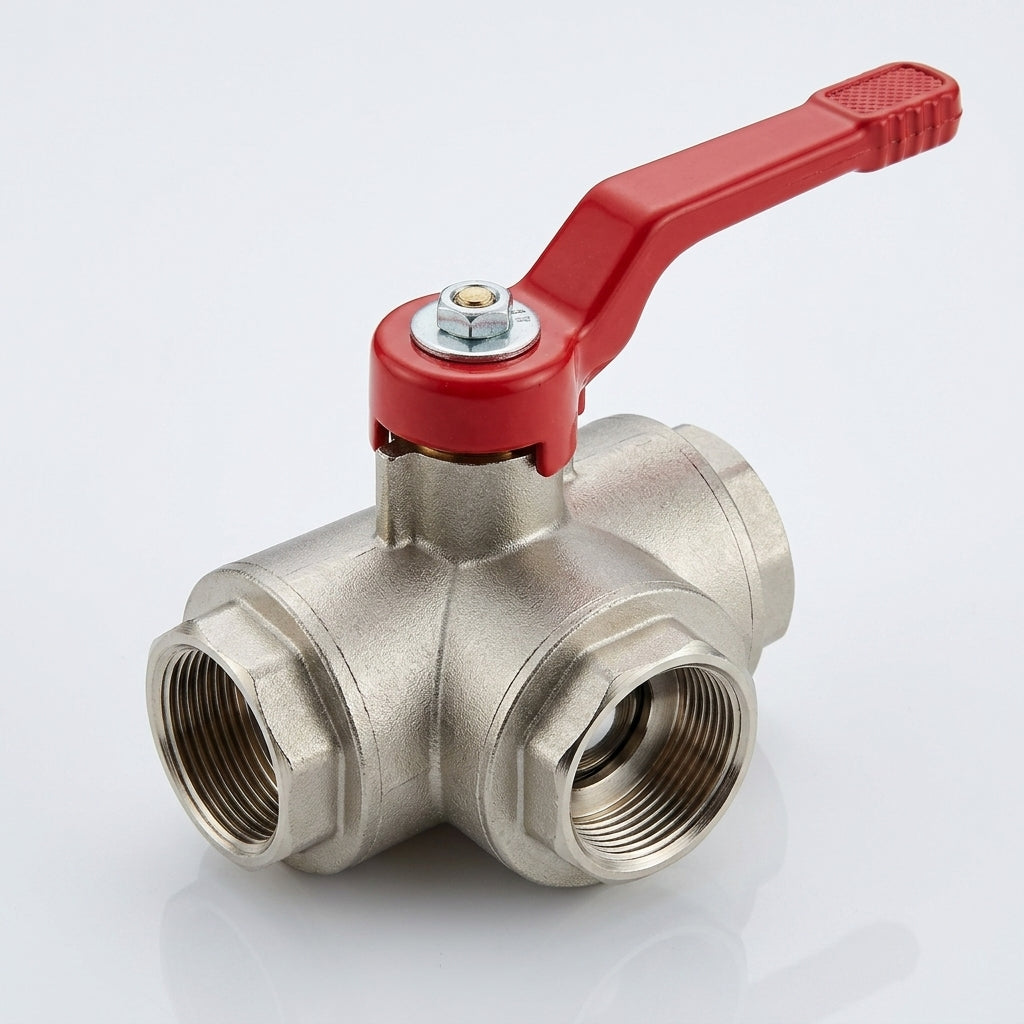

1/2" BSP Female 3-Way L-Port Ball Valve, 40 Bar

Three-way L-port ball valve with 1/2" BSP female connections, rated to 40 bar and 80°C maximum operating temperature.

This compact manual ball valve features an L-port configuration that enables selective flow direction to any two of three ports. The nickel-chromium plated brass construction resists corrosion whilst maintaining dimensional stability across industrial applications. PTFE ball seats and Viton seals deliver consistent shutoff and extended service life.

Key Features

• 1/2" BSP female threaded connections on all three ports
• L-port design for flexible flow routing
• Maximum pressure rating: 40 bar
• Maximum temperature: 80°C
• Nickel/chromium plated brass body
• PTFE ball seats with Viton seals for reliable sealing

Specifications

• Thread size: 1/2" BSP female
• Valve type: 3-way ball valve (L-port)
• Pressure rating: 40 bar maximum
• Temperature rating: 80°C maximum
• Body material: Nickel/chromium plated brass
• Internal seals: PTFE ball seats, Viton seals

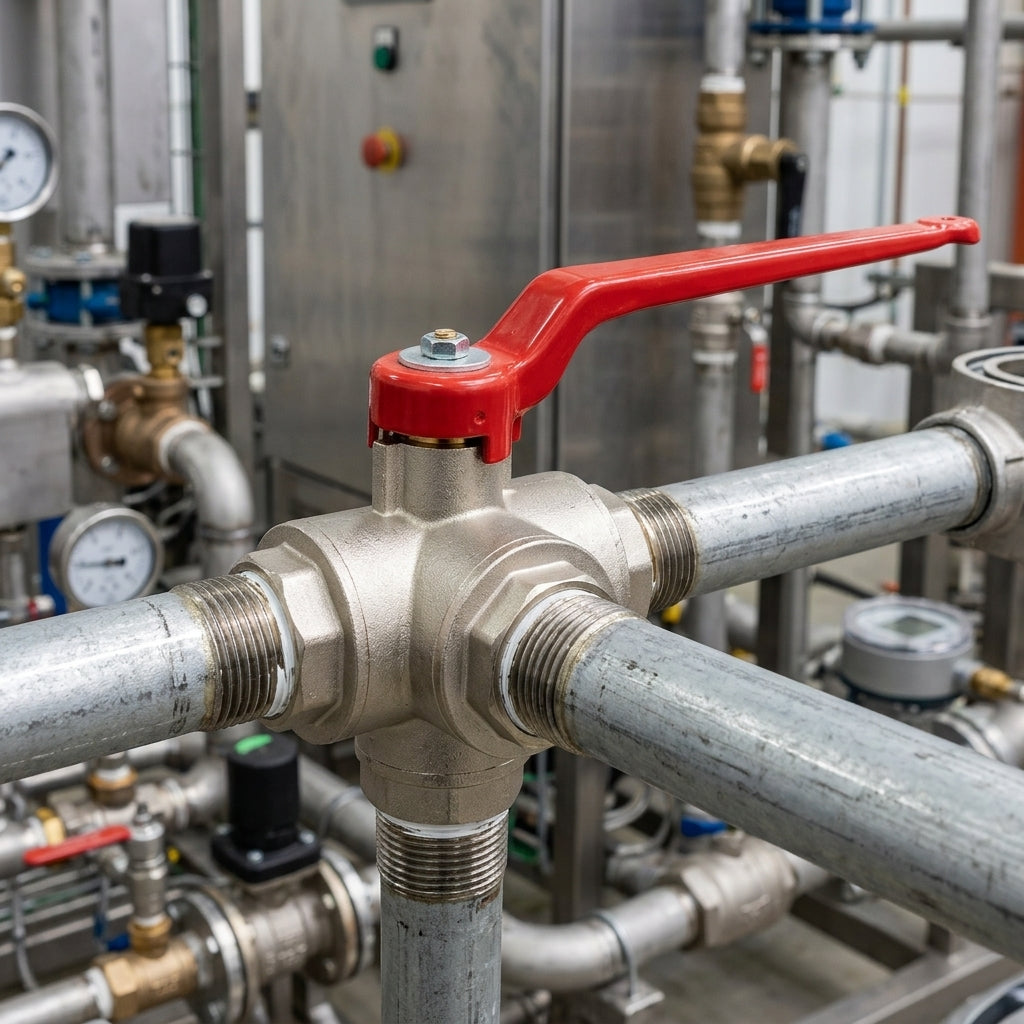

Applications

• Industrial fluid distribution systems requiring directional flow control
• Equipment with alternating fluid circuits
• Water and coolant circulation management
• Pneumatic and hydraulic system routing
• Multi-line manifold assemblies
