Description

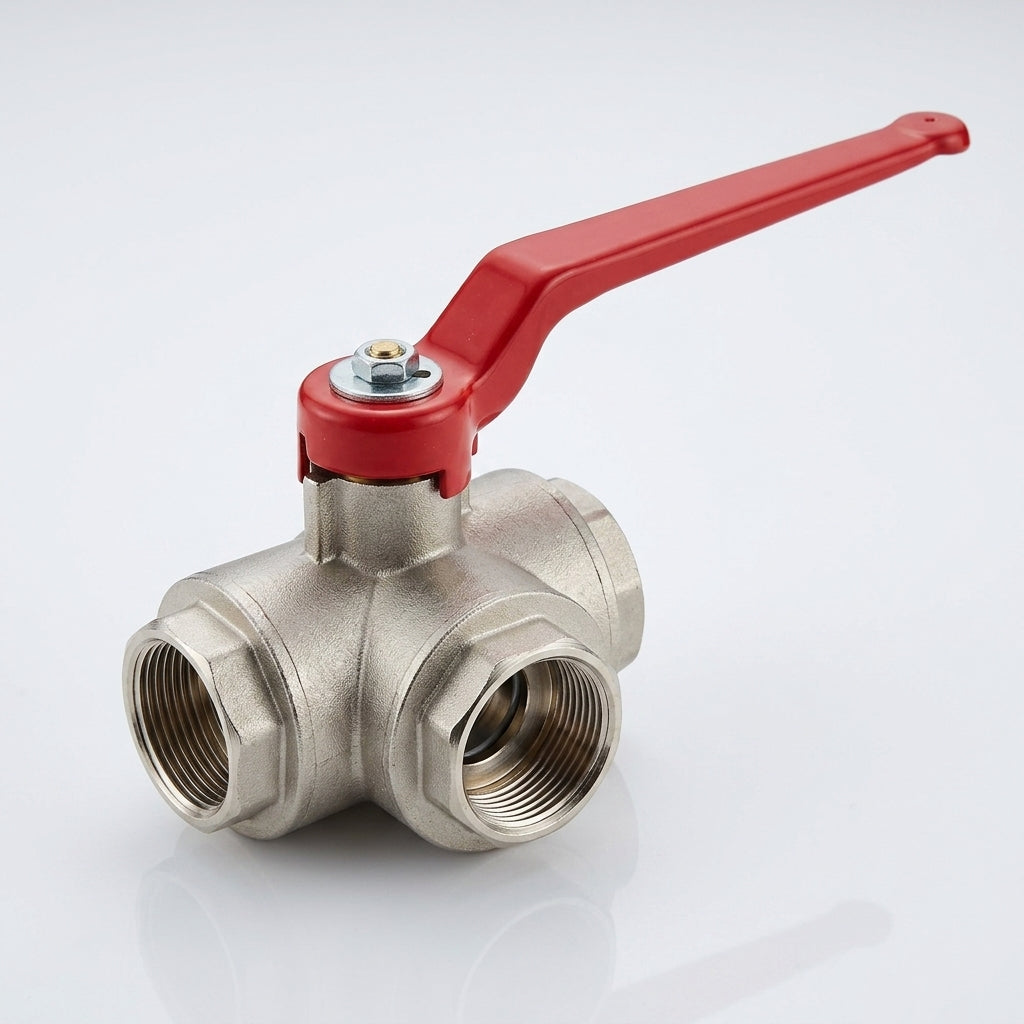

Three-way T port ball valve with 1/2" BSP female connections for directional flow control in industrial applications.
This nickel and chromium-plated brass valve combines reliable T port functionality with robust construction suitable for pressurised systems. The PTFE ball seats and Viton seals ensure long service life across a range of industrial fluids and operating conditions.
Key Features
- 1/2" BSP female thread connections
- T port configuration for three-way flow direction
- 32 bar maximum operating pressure
- 80°C maximum fluid temperature rating
- Nickel/chromium plated brass body
- PTFE ball seats with Viton elastomer seals
Specifications
- Port size: 1/2" BSP female
- Port type: T configuration
- Maximum pressure: 32 bar
- Maximum temperature: 80°C
- Body material: Nickel/chromium plated brass
- Ball seat material: PTFE
- Seal material: Viton

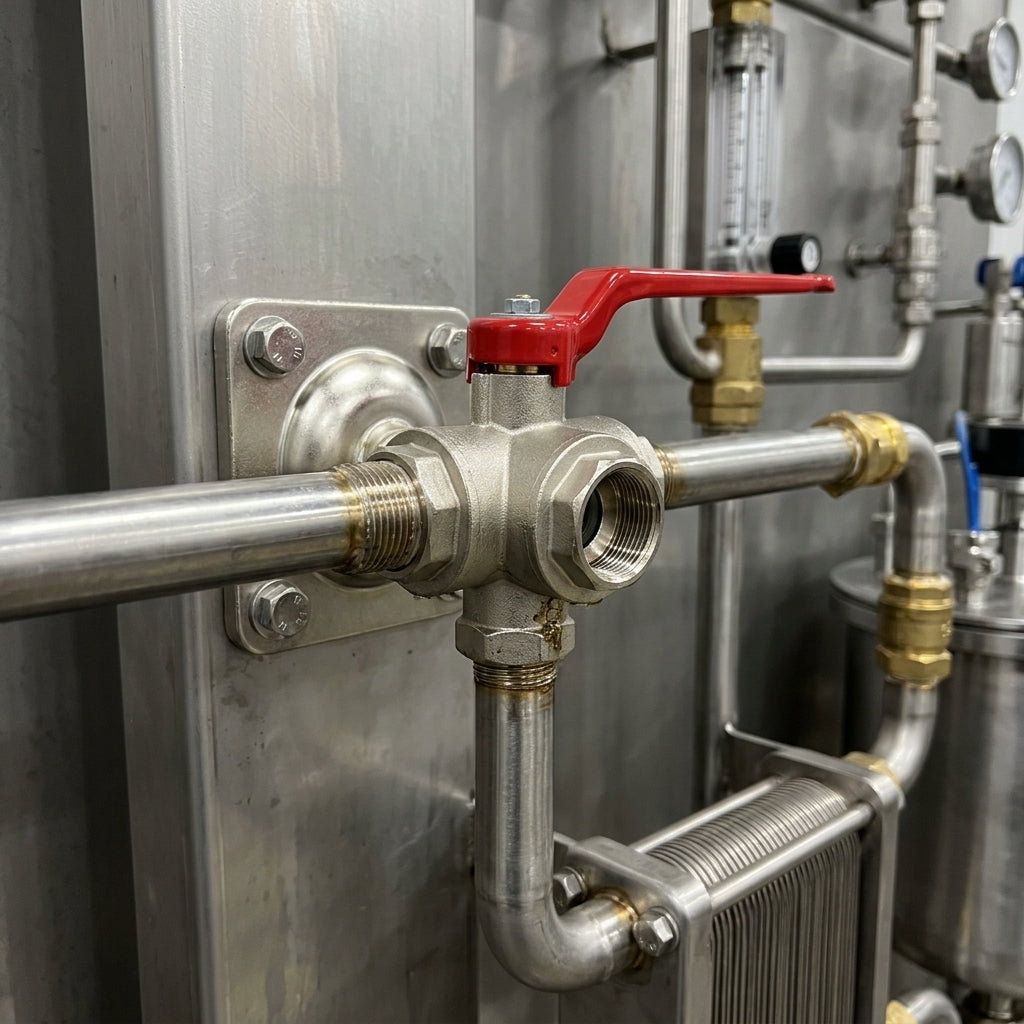

Applications
- Fluid distribution and bypass systems
- Industrial plant process control
- Pressure equipment and manifold assemblies
- Directional flow switching in hydraulic circuits
- Coolant and lubricant systems
