Description

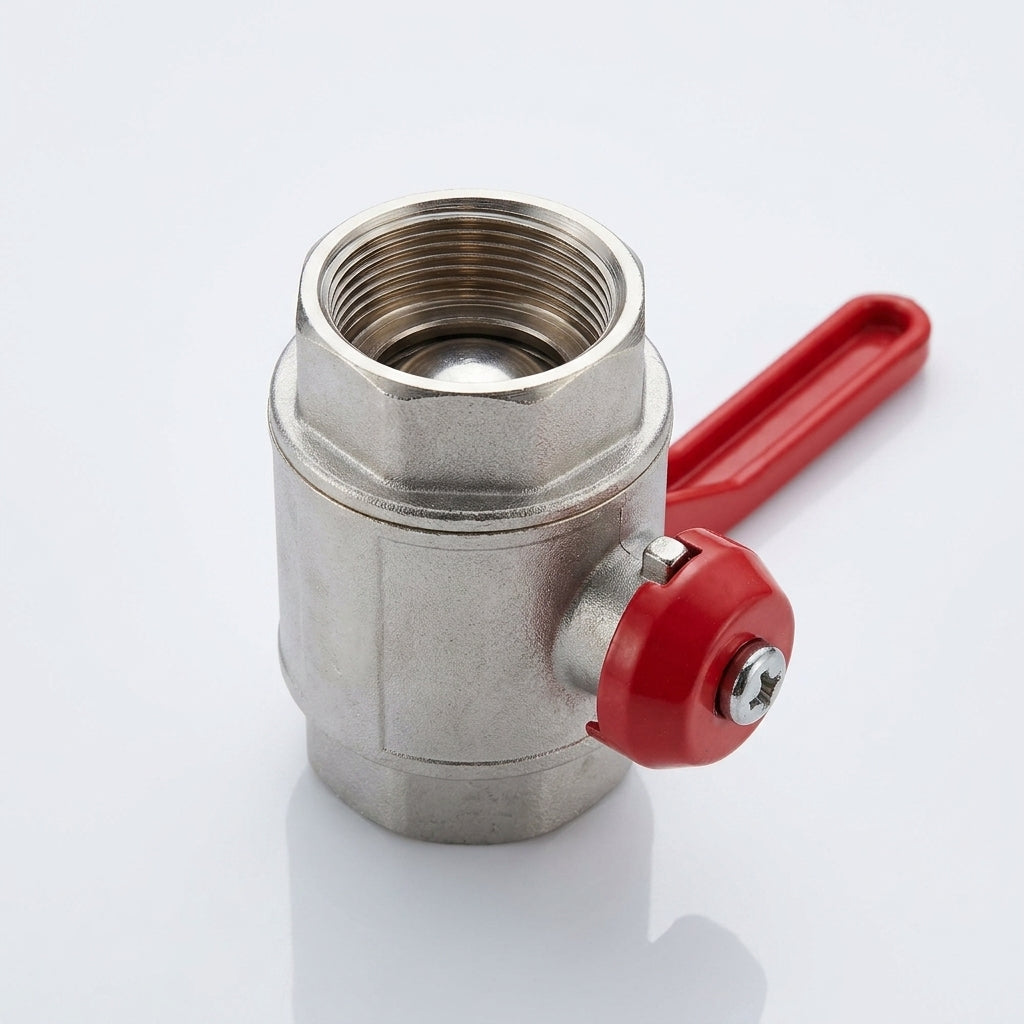

Nickel-plated brass lever ball valve with 1/2" BSP female connections on both ports.
A compact, durable ball valve designed for general industrial and domestic fluid control systems. The lever handle provides quick on-off operation, whilst PTFE ball seats ensure reliable sealing. Rated for moderate pressure and temperature applications up to 25 bar and 80°C.
Key Features
- Both ports 1/2" BSP female thread
- Nickel and chromium plated brass body
- PTFE ball seats for reliable sealing
- Lever handle for quick operation
- Compact 54mm length
- 25 bar maximum working pressure
Specifications
- Port size: 1/2" BSP female × 1/2" BSP female
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Body material: nickel/chromium plated brass
- Seat material: PTFE
- Overall length: 54mm
- Handle type: lever
Applications
- Water supply systems
- General fluid distribution lines
- Industrial process control
- Heating and cooling circuits
- Compressed air systems (low pressure)
