Description

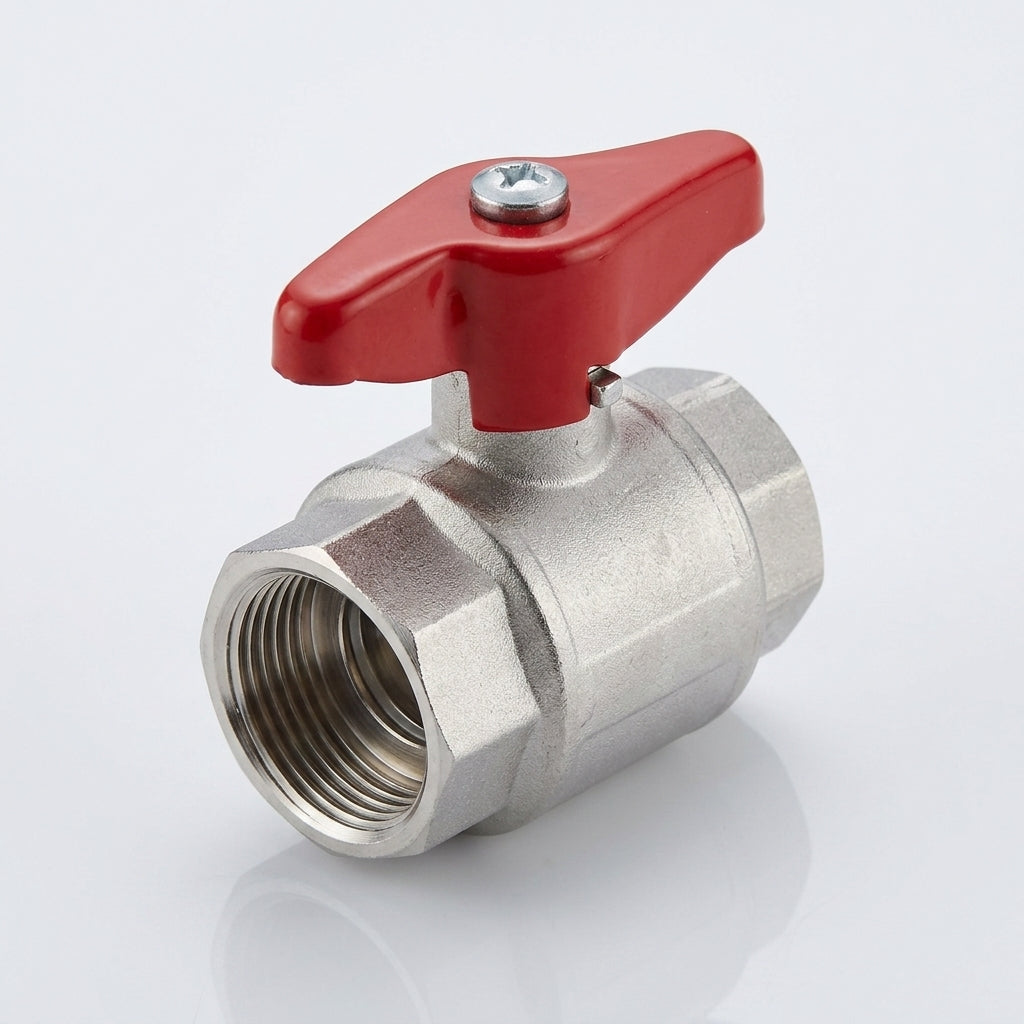

Nickel-plated brass ball valve with 1/2" BSP female-to-female connections, rated to 25 bar and 80°C.
A compact flow control valve designed for general industrial pipework systems. The T-handle provides reliable manual operation, while PTFE ball seats ensure consistent sealing performance across its working pressure range.
Key Features
- 1/2" BSP female thread both ends
- 25 bar maximum operating pressure
- 80°C maximum fluid temperature
- Nickel and chromium plated brass body
- PTFE ball seats for durable sealing
- T-handle lever for manual control
- 54 mm body length
Specifications
- Connection size: 1/2" BSP female
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Material: plated brass
- Seat material: PTFE
- Overall length: 54 mm
Applications

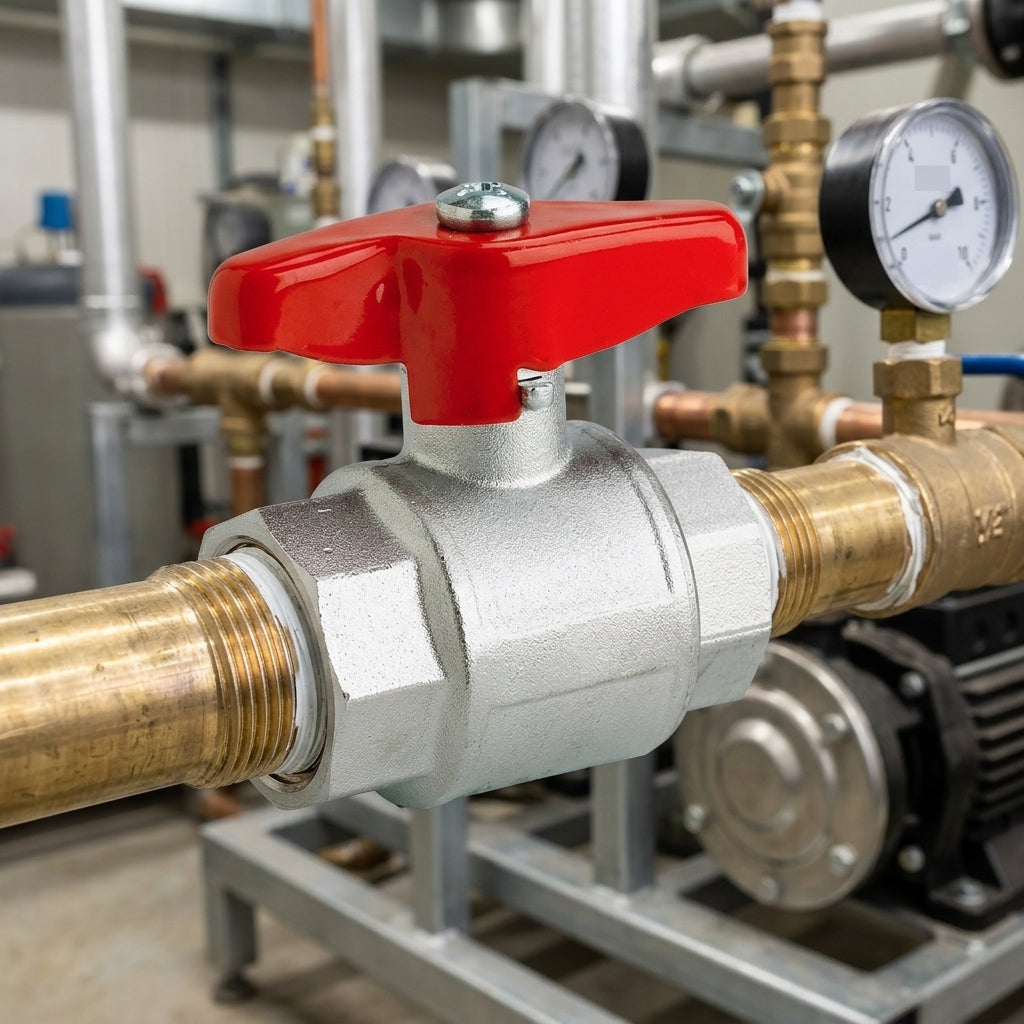

- Water circulation and supply systems
- Industrial fluid transfer lines
- Pump outlet isolation
- Tank filling and emptying control
- General hydraulic and pneumatic circuits
