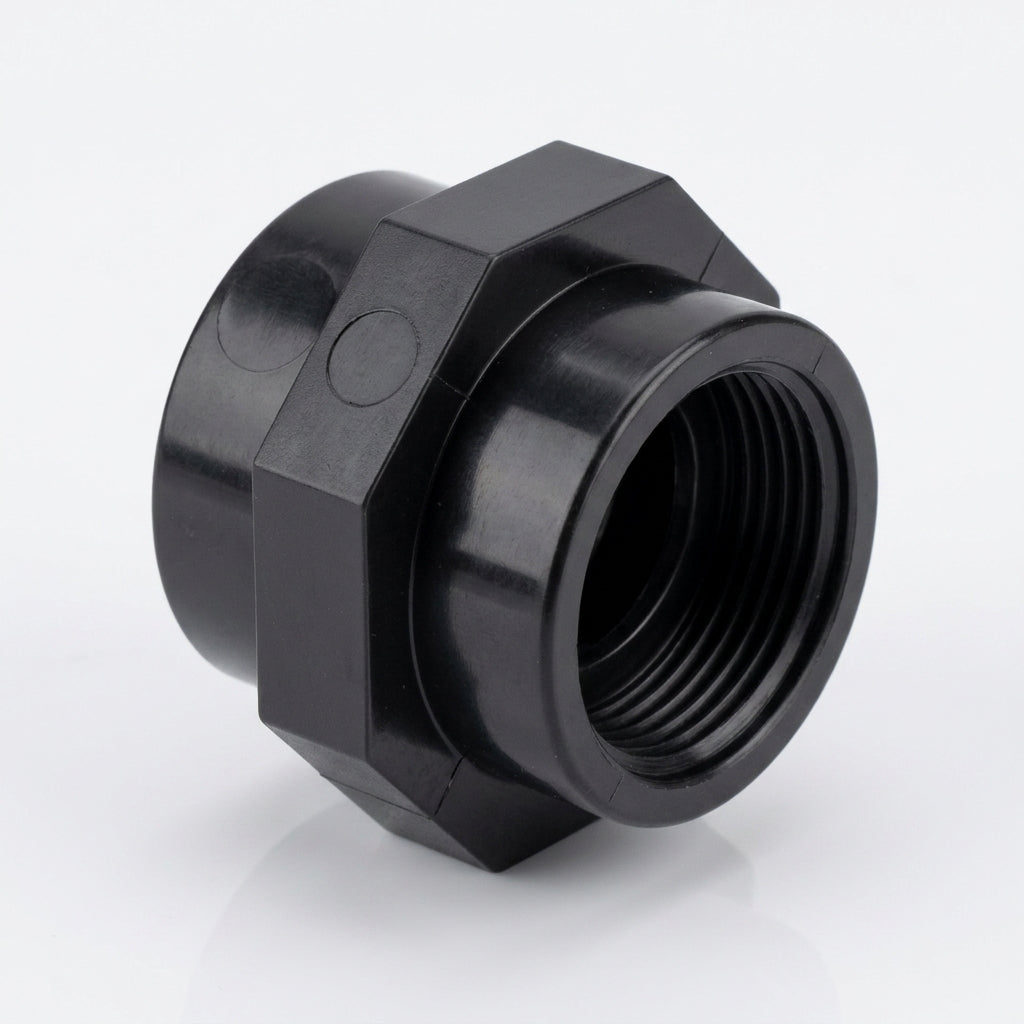

1/2" BSP Female x 3/8" BSP Female Reducing Socket

Polypropylene reducing socket adapter connecting 1/2" BSP female inlet to 3/8" BSP female outlet.

This reducing socket is engineered for low-pressure pneumatic and fluid distribution applications. The stepped design allows safe downsizing between 1/2" and 3/8" BSP connections without additional fittings.

Key Features

• 1/2" BSP female thread inlet
• 3/8" BSP female thread outlet
• Maximum working pressure: 10 bar
• Maximum operating temperature: 40°C
• Polypropylene construction for chemical compatibility
• Compact one-piece design

Specifications

• Thread size: 1/2" BSP female × 3/8" BSP female
• Material: Polypropylene
• Pressure rating: 10 bar maximum
• Temperature rating: 40°C maximum

Applications

• Low-pressure pneumatic airline systems
• Water delivery and distribution circuits
• Agricultural spray systems
• Process fluid connections requiring size reduction
• Tank and reservoir outlet configurations
