Description

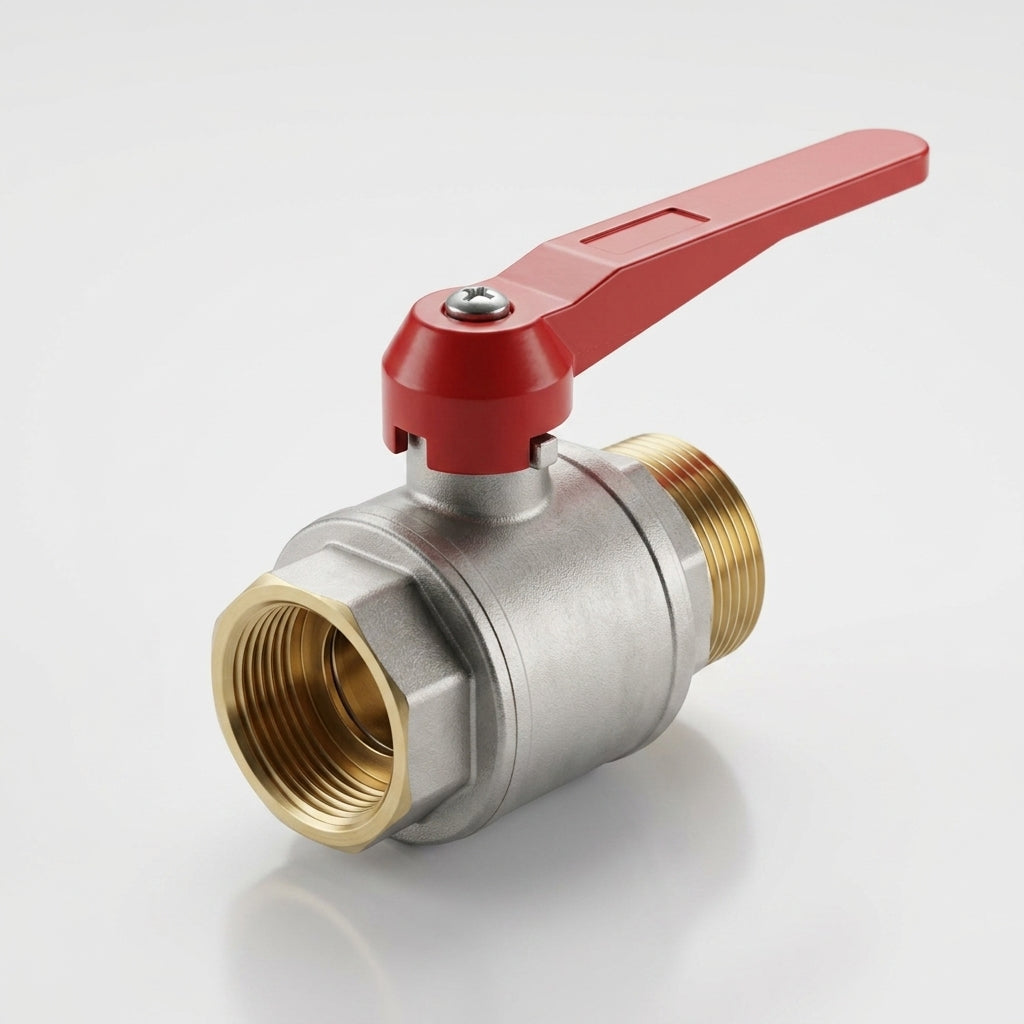

Nickel-plated brass lever ball valve with 1/2" BSP male and female connections for reliable flow control.
This compact valve combines straightforward on/off operation with durable construction, making it suitable for both industrial and commercial applications. The lever handle enables quick manual actuation, while PTFE ball seats ensure reliable sealing over extended service life.
Key Features
- 1/2" BSP male inlet × 1/2" BSP female outlet
- Lever handle for quick manual operation
- Nickel and chromium plated brass body
- PTFE ball seats for reliable sealing
- Maximum 25 bar working pressure
- 63 mm overall length
Specifications
- Connection type: BSP parallel threads
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Material: plated brass
- Seat material: PTFE
- Length: 63 mm

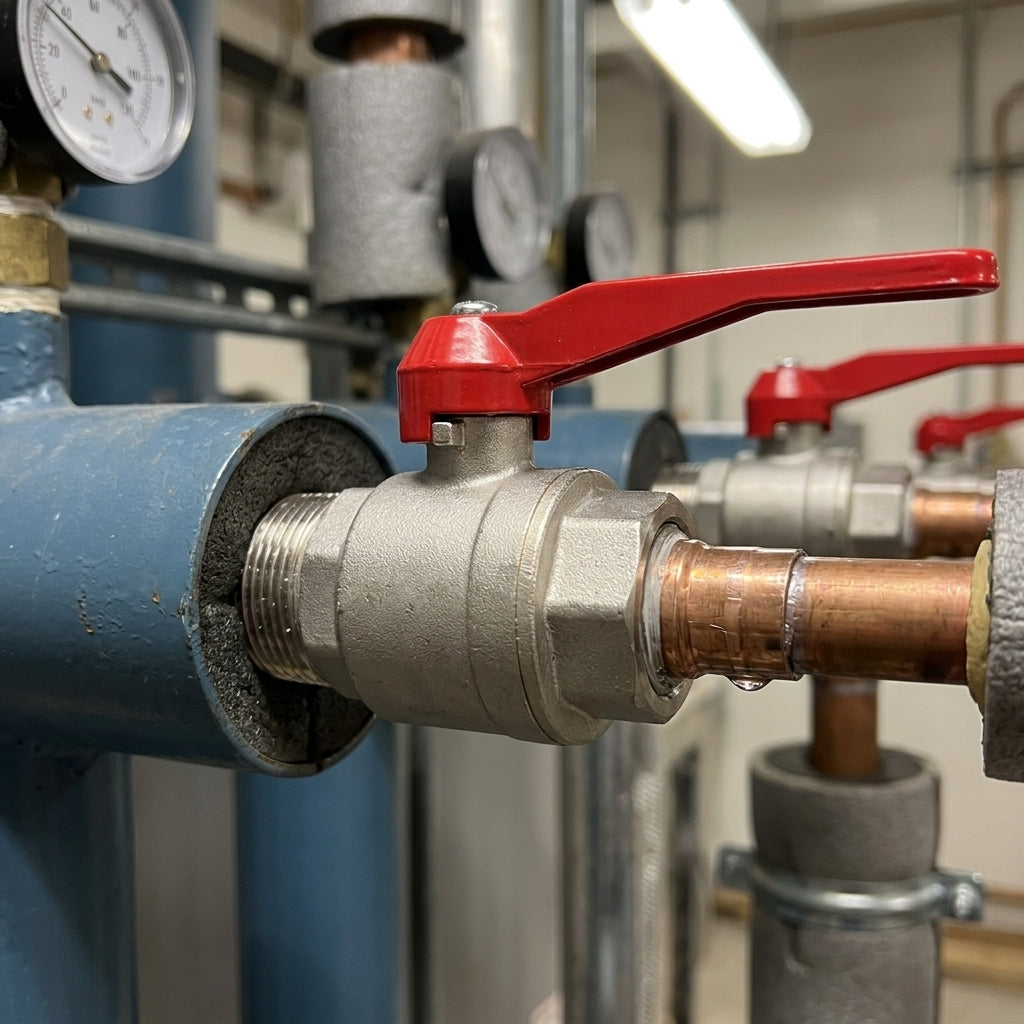

Applications
- Water supply and distribution systems
- Compressed air line isolation
- Hydraulic systems and circuits
- Industrial fluid transfer
- Equipment bypass and control lines
