Description

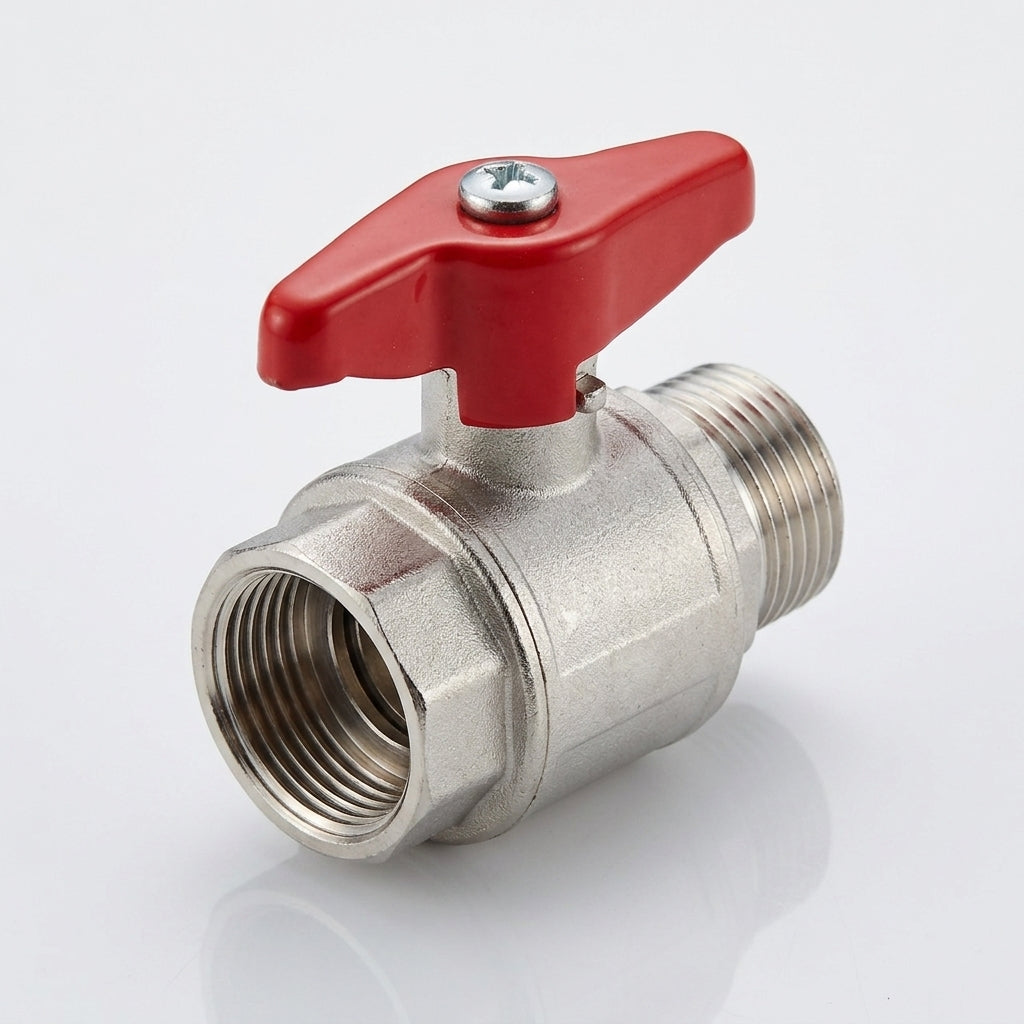

Nickel-plated brass ball valve with 1/2" BSP male-to-female connection and T-handle for manual control.
This compact 63mm valve combines corrosion-resistant plated brass construction with PTFE ball seats for dependable performance. Rated to 25 bar and 80°C, it offers reliable flow control in industrial water systems, compressed air circuits, and general-purpose hydraulic applications. The T-handle provides intuitive quarter-turn operation.
Key Features
- Nickel/chromium plated brass body for corrosion resistance
- PTFE ball seats for consistent sealing and durability
- T-handle for easy manual operation
- 25 bar maximum working pressure
- 80°C maximum fluid temperature
- Compact 63mm length
Specifications
- Connection: 1/2" BSP male inlet × 1/2" BSP female outlet
- Body material: Plated brass (nickel/chromium)
- Seat material: PTFE
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Overall length: 63mm
- Actuation: Manual T-handle (quarter-turn)
Applications
- Water distribution and supply systems
- Compressed air line isolation and control
- Hydraulic circuit shut-off valves
- General industrial fluid transfer systems
- Maintenance and service isolation points
