1/2" BSP Male x Female Plated Brass Mini Ball Valve, 41mm

Compact brass ball valve with 1/2" BSP threaded connections, rated to 10 bar and 80°C maximum.

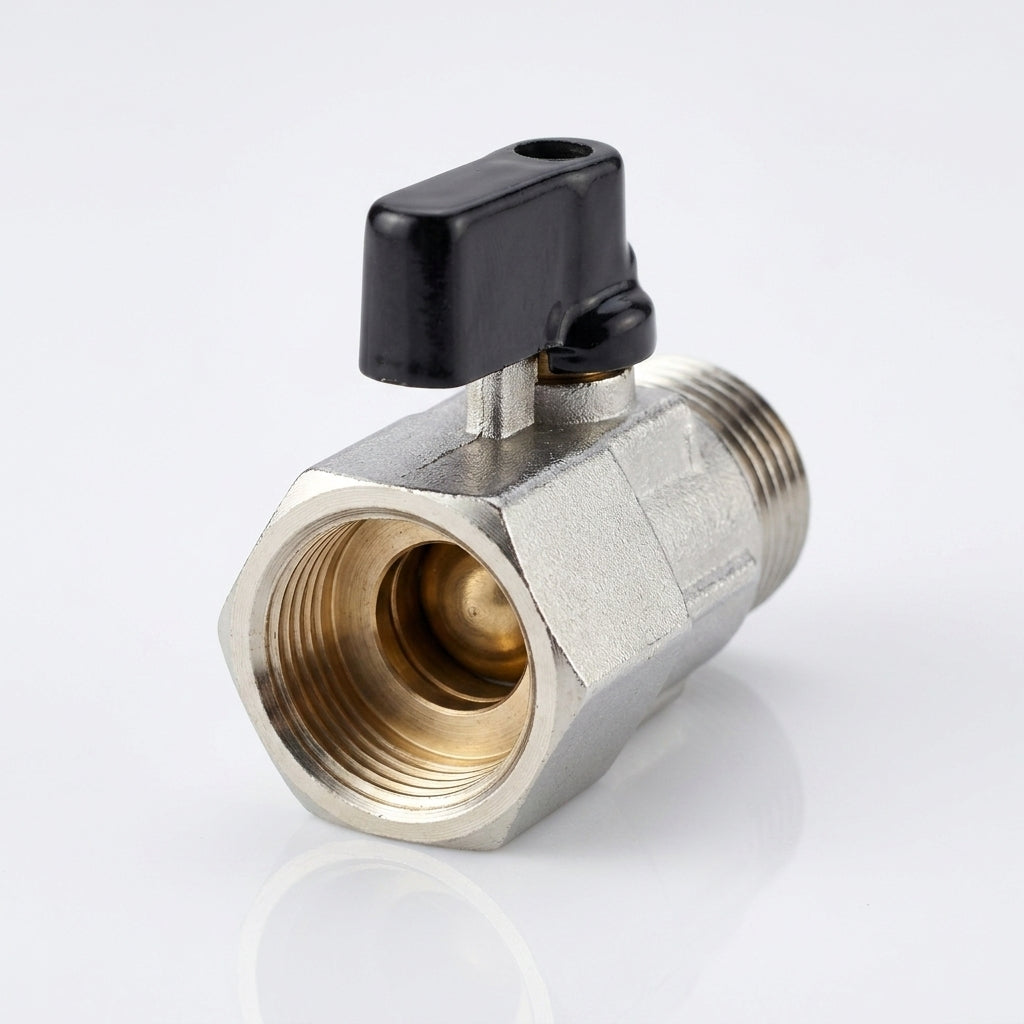

This miniature ball valve combines a male thread inlet with a female thread outlet, both 1/2" BSP size. The nickel and chromium plated brass body ensures corrosion resistance in demanding applications, while PTFE ball seats and nitrile seals provide reliable shutoff performance. At just 41mm in length, it fits easily into tight spaces on industrial fluid and gas systems.

Key Features

• 1/2" BSP male inlet and female outlet threads
• Nickel/chromium plated brass construction
• PTFE ball seats for smooth operation and longevity
• Nitrile seals for reliable sealing across temperature range
• Compact 41mm body length
• 10 bar working pressure maximum

Specifications

• Connection size: 1/2" BSP both ends
• Body length: 41mm
• Maximum pressure: 10 bar
• Maximum temperature: 80°C
• Material: Plated brass (nickel/chromium)
• Seat material: PTFE
• Seal material: Nitrile

Applications

• Water supply and distribution systems
• Compressed air circuits in industrial settings
• Hydraulic and pneumatic equipment interconnection
• General fluid transfer control in confined spaces
• Portable tank and container outlet isolation
