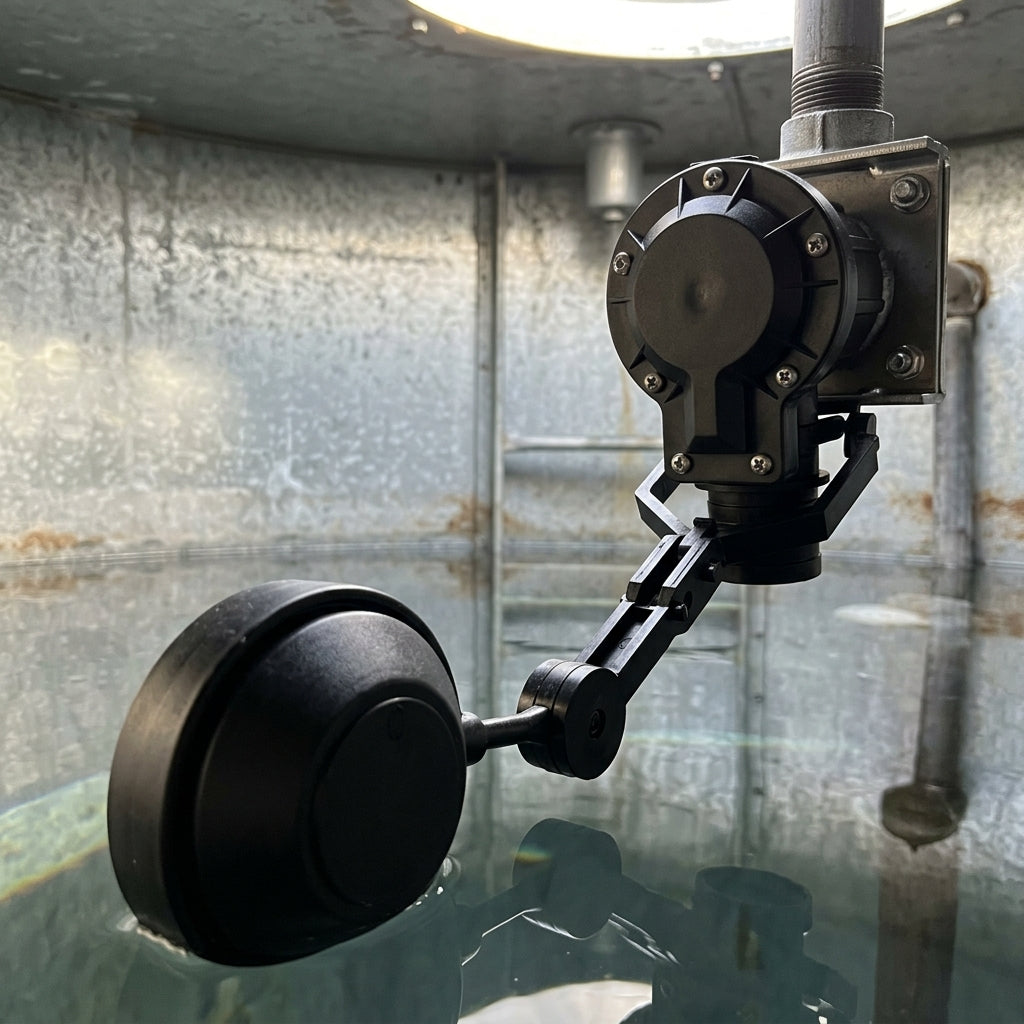

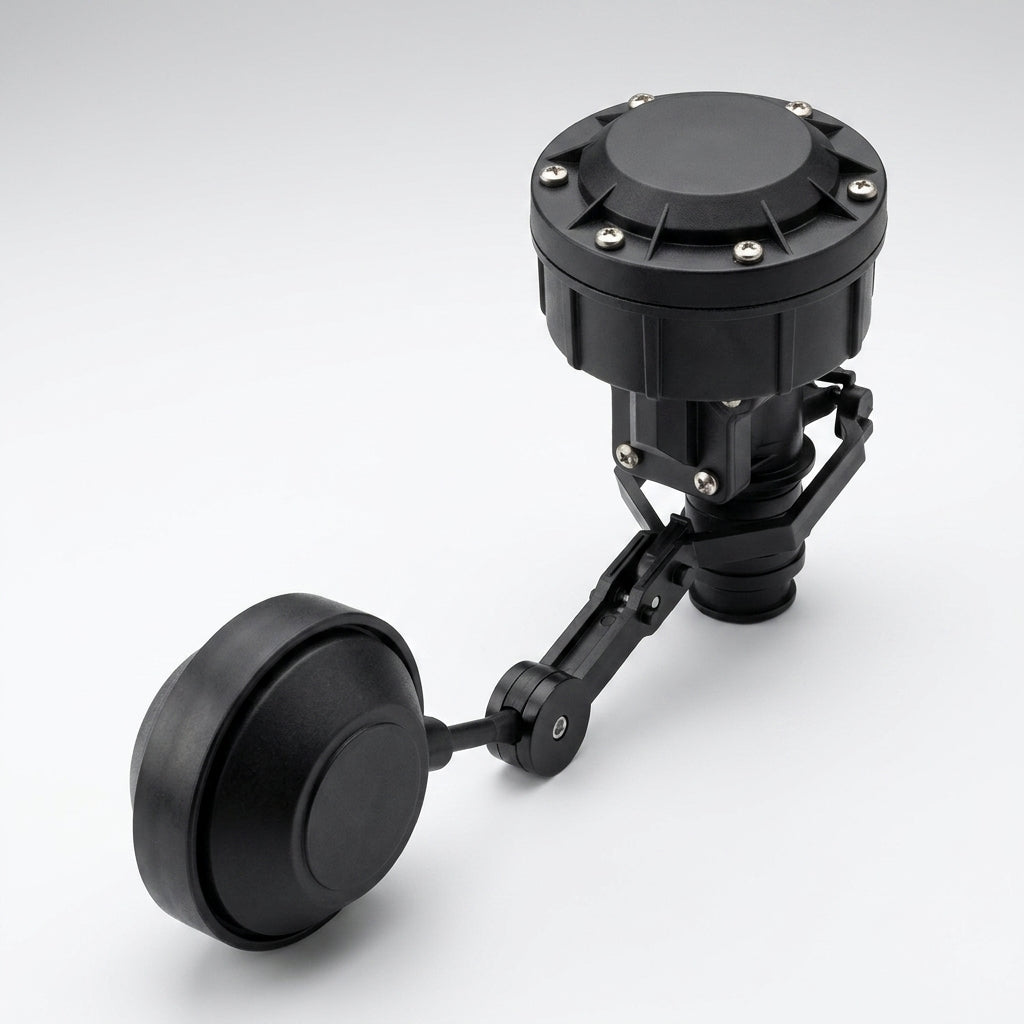

1/2" BSP Quick-Acting Float Valve for Water Tanks

Hydraulic water level regulator designed to replace conventional ballcock valves in tanks and cisterns.

This float valve transitions instantly from fully open to fully closed, eliminating repeated pump stop-start cycling during tank filling. The high flow rate enables rapid tank replenishment with minimal pressure loss, whilst the delayed re-start feature (approximately 3 cm water drop) further reduces pump cycling frequency. An adjustable arm extends up to 60 mm across six settings.

Key Features

• Instant open-to-closed transition prevents pump cycling
• High flow rate for rapid tank filling
• Delayed re-start at ~3 cm water level drop
• Adjustable arm with 6 extension settings (up to 60 mm)
• Polycarbonate body and float with stainless steel fasteners
• CE marked

Specifications

• Port size: 1/2" BSP
• Operating pressure: 0.2–6 bar
• Over-pressure rating: 15 bar
• Burst pressure: >20 bar
• Operating temperature: 0–50°C
• Storage temperature: −20–80°C
• Float movement range: 0–180°
• Body material: Polycarbonate
• Levers: ABS
• Membrane: SEBS

Applications

• Water storage tanks and cisterns
• Pump system inlet control
• Pressure vessel filling circuits
• Agricultural and industrial water systems
• Domestic and commercial tank installations
