Description

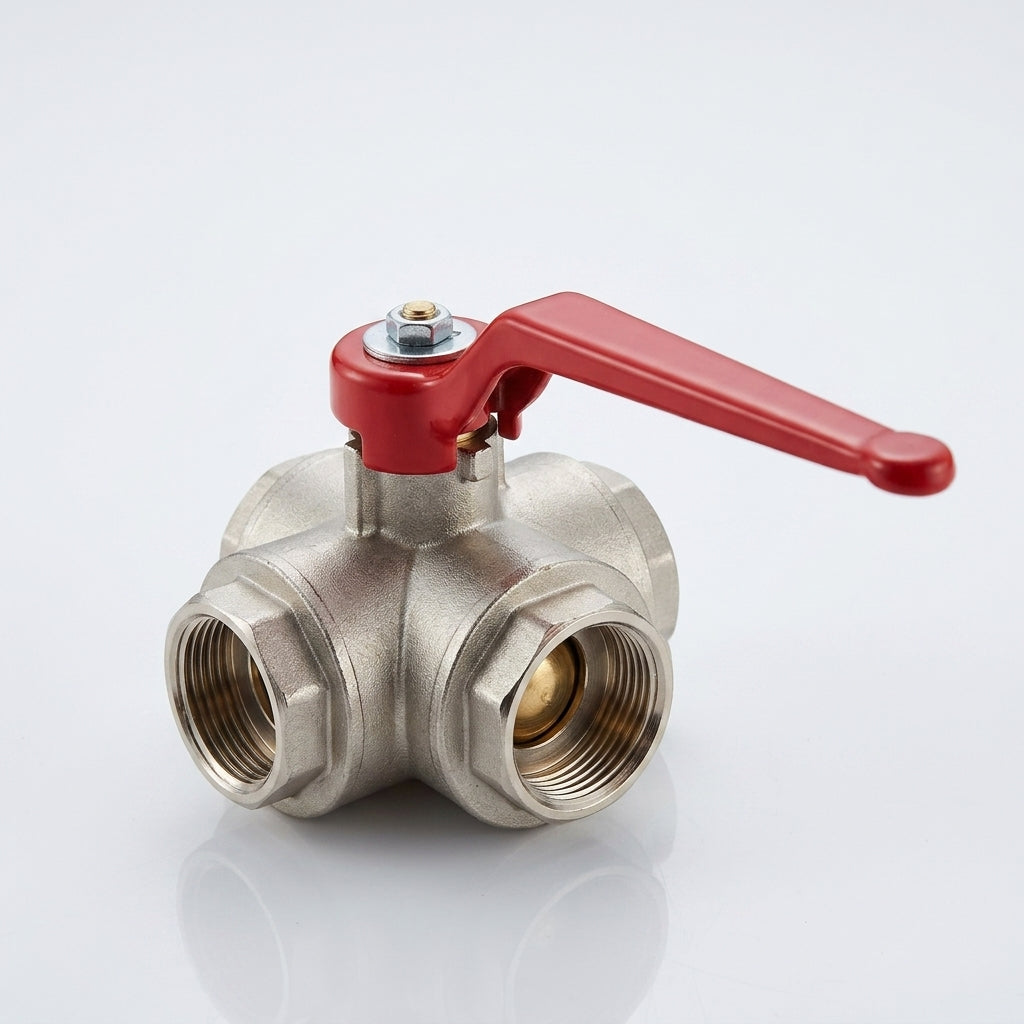

Three-way L port ball valve with 1/4" BSP female connections, rated to 40 bar and 80°C, manufactured from nickel-chromium plated brass.
This compact ball valve features an L port configuration suitable for diverting or combining fluid flow in compressed air and hydraulic systems. The PTFE ball seats and Viton seals ensure reliable operation across a wide temperature range, while the nickel-chromium plating provides corrosion resistance for industrial environments.
Key Features
- 1/4" BSP female thread connections
- L port configuration for flow diversion
- PTFE ball seats for smooth operation
- Viton elastomer seals
- Nickel-chromium plated brass construction
- Rated to 40 bar maximum pressure
Specifications
- Port size: 1/4" BSP female
- Maximum pressure: 40 bar
- Maximum temperature: 80°C
- Port type: L configuration
- Seal material: Viton
- Body material: Nickel-chromium plated brass
Applications
- Compressed air system control and isolation
- Hydraulic circuit flow diversion
- Pneumatic equipment switching
- Industrial automation circuits
- Fluid transfer manifold assembly
