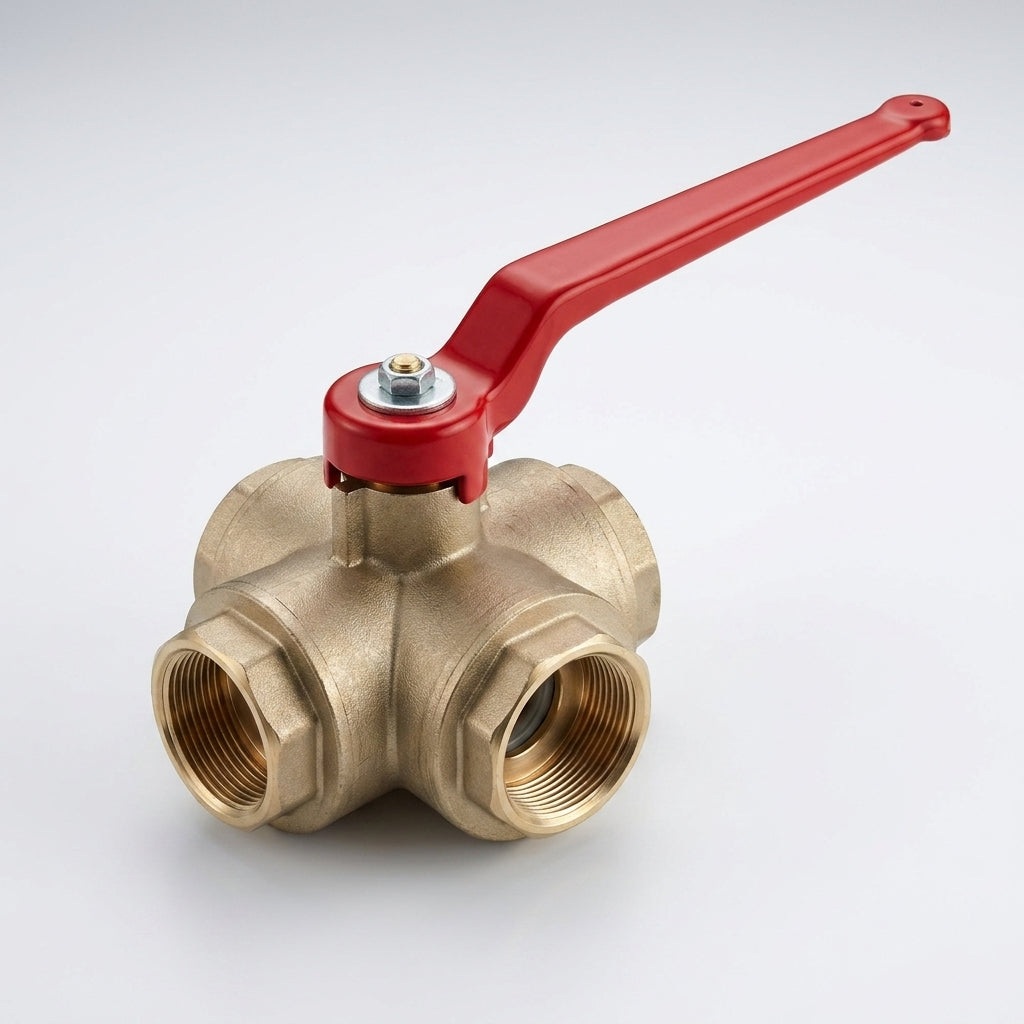

1/4" BSP Female 3-Way T Port Ball Valve, 40 Bar, Brass

Three-way T port ball valve with 1/4" BSP female connections, designed for pressurised fluid switching and diverting applications up to 40 bar.

This compact brass valve features full-bore T port configuration, enabling simultaneous flow to two separate outlet paths or isolation of one branch. The nickel-chromium plating provides corrosion resistance, whilst PTFE ball seats and Viton seals ensure reliable sealing across repeated cycles.

Key Features

• 1/4" BSP female threaded ports
• T port manifold configuration for three-way flow control
• Maximum pressure rating 40 bar (5.8 psi)
• Maximum temperature 80°C
• Nickel-chromium plated brass body
• PTFE ball seats with Viton elastomer seals

Specifications

• Port type: T port (three-way)
• Connection: 1/4" BSP female
• Pressure rating: 40 bar maximum
• Temperature range: 0–80°C
• Seat material: PTFE
• Seal material: Viton
• Body material: Nickel-chromium plated brass

Applications

• Hydraulic system switching and load control
• Fluid distribution in test rigs and laboratory equipment
• Industrial process piping diversion
• Pneumatic and liquid transfer manifolds
• Equipment bypass and isolation circuits
