Description

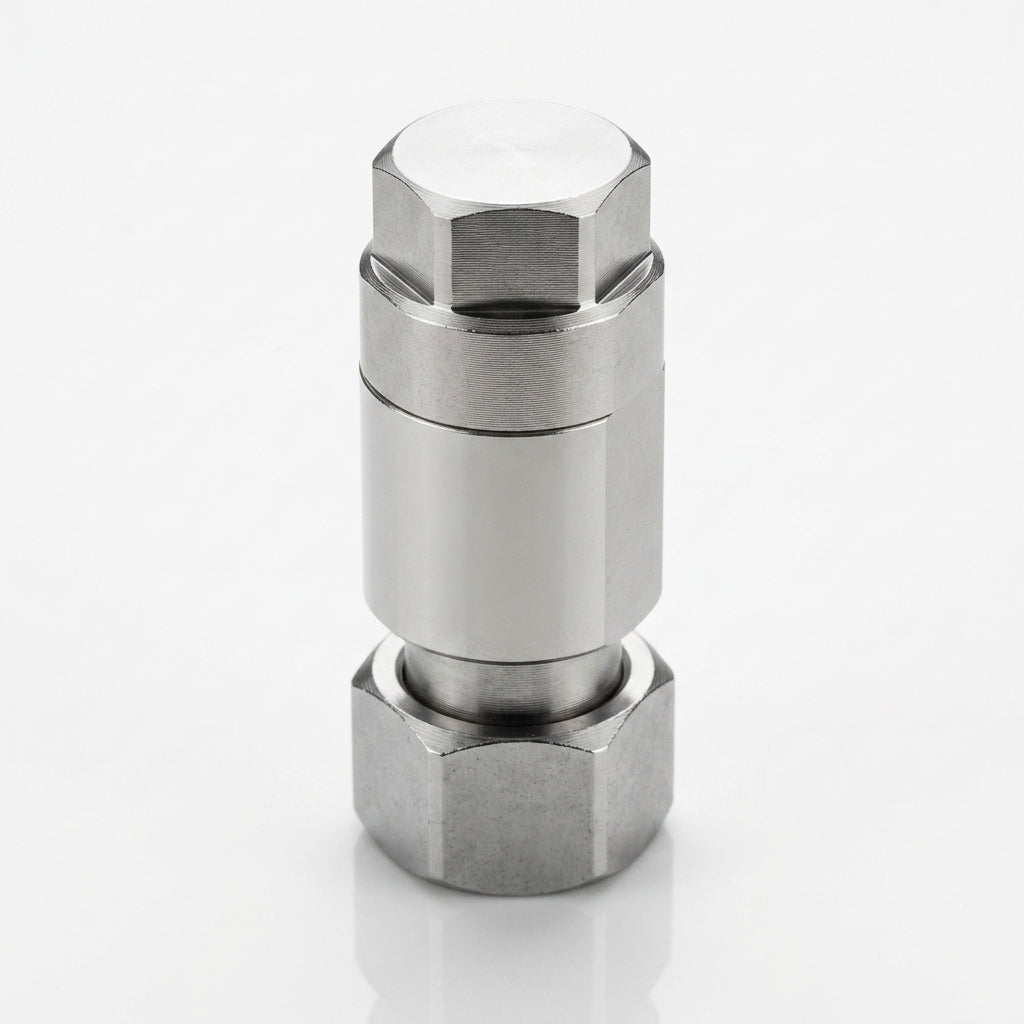

High-pressure swivel connector with triple bearing system for reliable 360° rotation under load.
This nickel-plated brass swivel features dual 1/4" BSP female ports and a robust triple bearing arrangement with stainless steel components. Engineered for demanding applications requiring continuous rotation without fluid leakage, it accommodates water, oil and air media across a wide pH range.
Key Features
- Triple bearing system for smooth, reliable rotation
- Stainless steel bearings resist corrosion
- Nickel-plated brass body for durability
- 275 bar rated working pressure
- Rotational speed: up to 1000 rpm @ 30°C; 30 rpm @ 120°C
- Accepts water, oil, air and fluids pH 3–12
Specifications
- Inlet: 1/4" BSP female
- Outlet: 1/4" BSP female
- Maximum pressure rating: 275 bar
- Material: nickel-plated brass body with stainless steel bearings
- Temperature range: –30°C to +120°C operating
Applications
- High-speed pressure washing and cleaning systems
- Industrial fluid transfer and circulation
- Pneumatic and hydraulic tool connections
- Rotating spray equipment and nozzle arrays
- Water and chemical injection systems
