Description

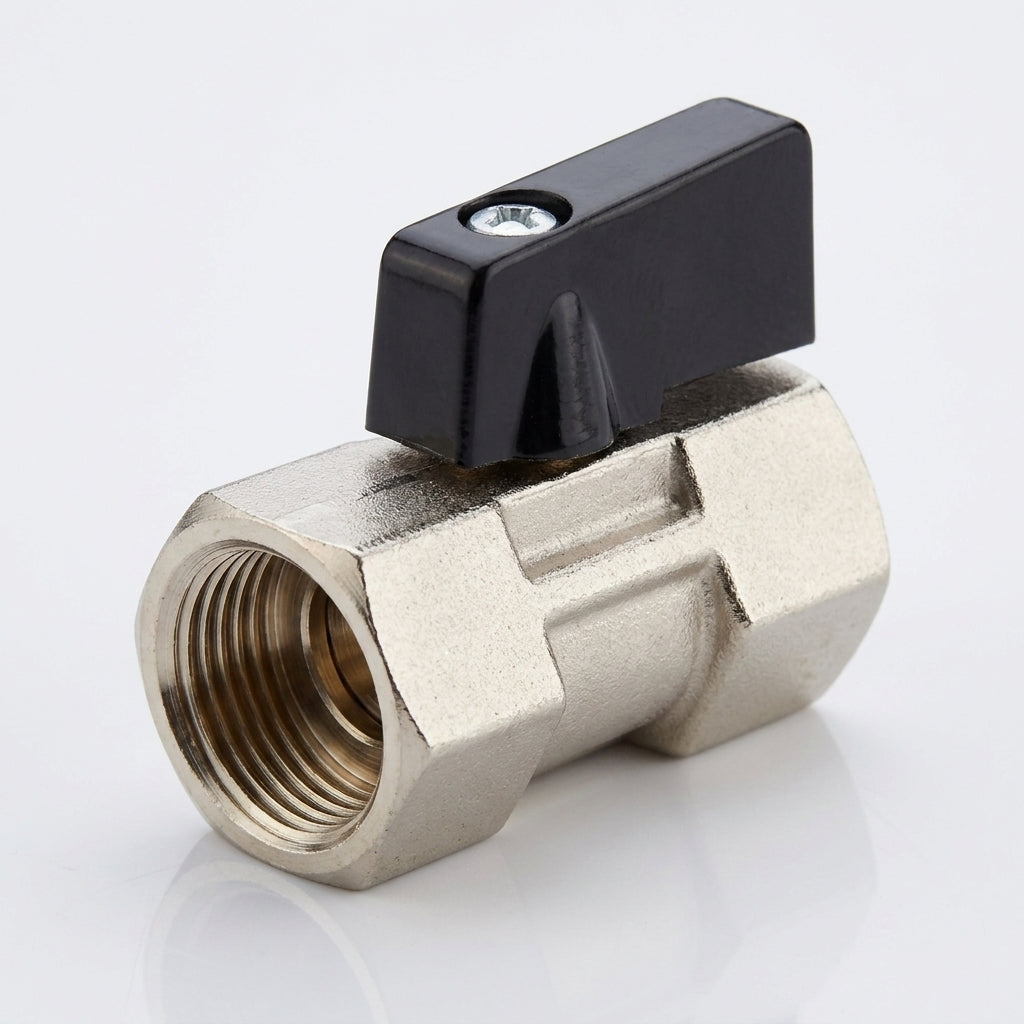

Compact double-female brass ball valve with nickel-chromium plating and 10 bar pressure rating.
This mini ball valve features 1/4" BSP female connections on both ports, making it suitable for space-constrained installations where standard-sized valves cannot fit. The plated brass construction provides corrosion resistance whilst the PTFE ball seats and nitrile seals ensure reliable shut-off performance across a range of fluids.
Key Features
- Nickel/chromium plated brass body for enhanced durability
- PTFE ball seats for low friction operation
- Nitrile seals for compatibility with water and petroleum-based fluids
- Compact 41mm length ideal for confined spaces
- Both ports feature 1/4" BSP female thread
- Full bore design for minimal flow restriction
Specifications
- Connection size: 1/4" BSP female x 1/4" BSP female
- Maximum pressure: 10 bar
- Maximum temperature: 80°C
- Body material: Nickel/chromium plated brass
- Ball seat material: PTFE
- Seal material: Nitrile
- Length: 41mm
Applications
- Water treatment and distribution systems

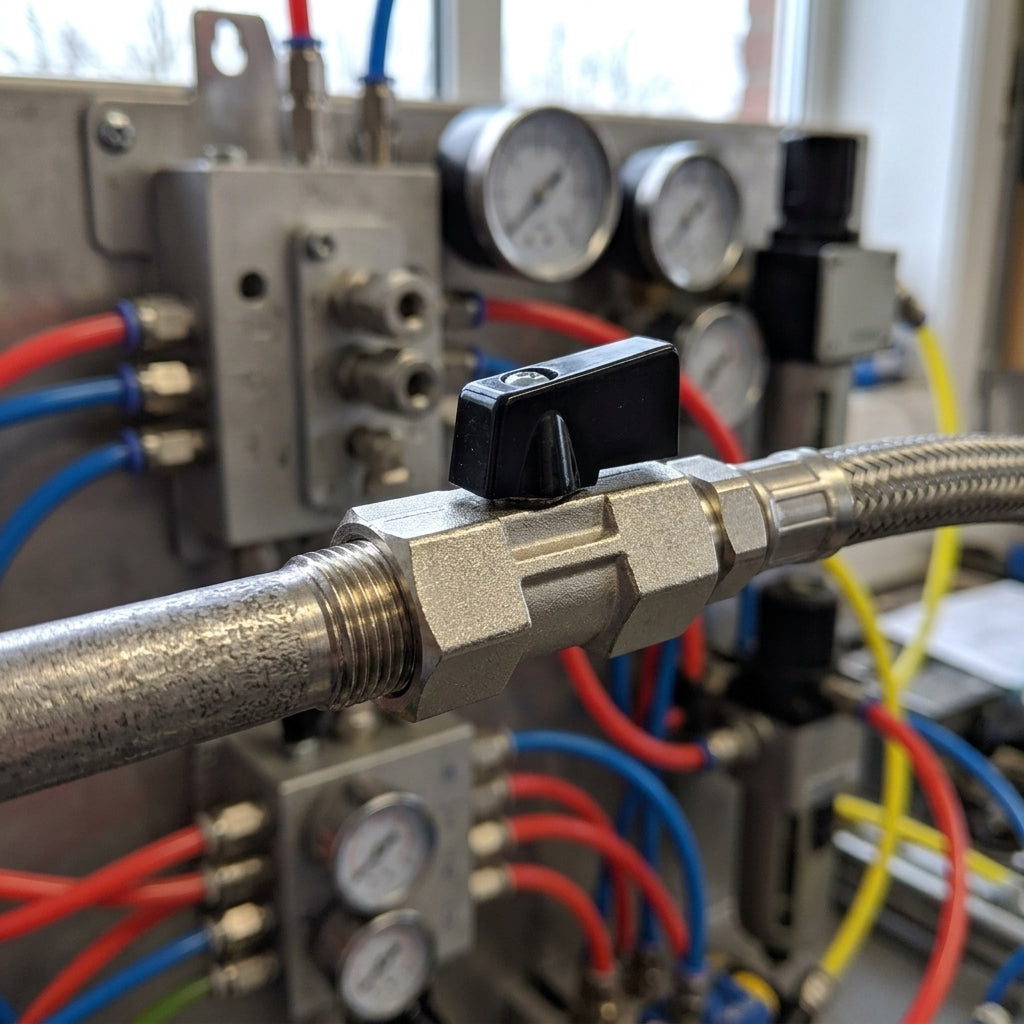

- Compressed air circuits in limited-space installations
- Hydraulic fluid control in compact machinery
- Fuel and lubricant dispensing systems
- Laboratory and test rig fluid isolation
