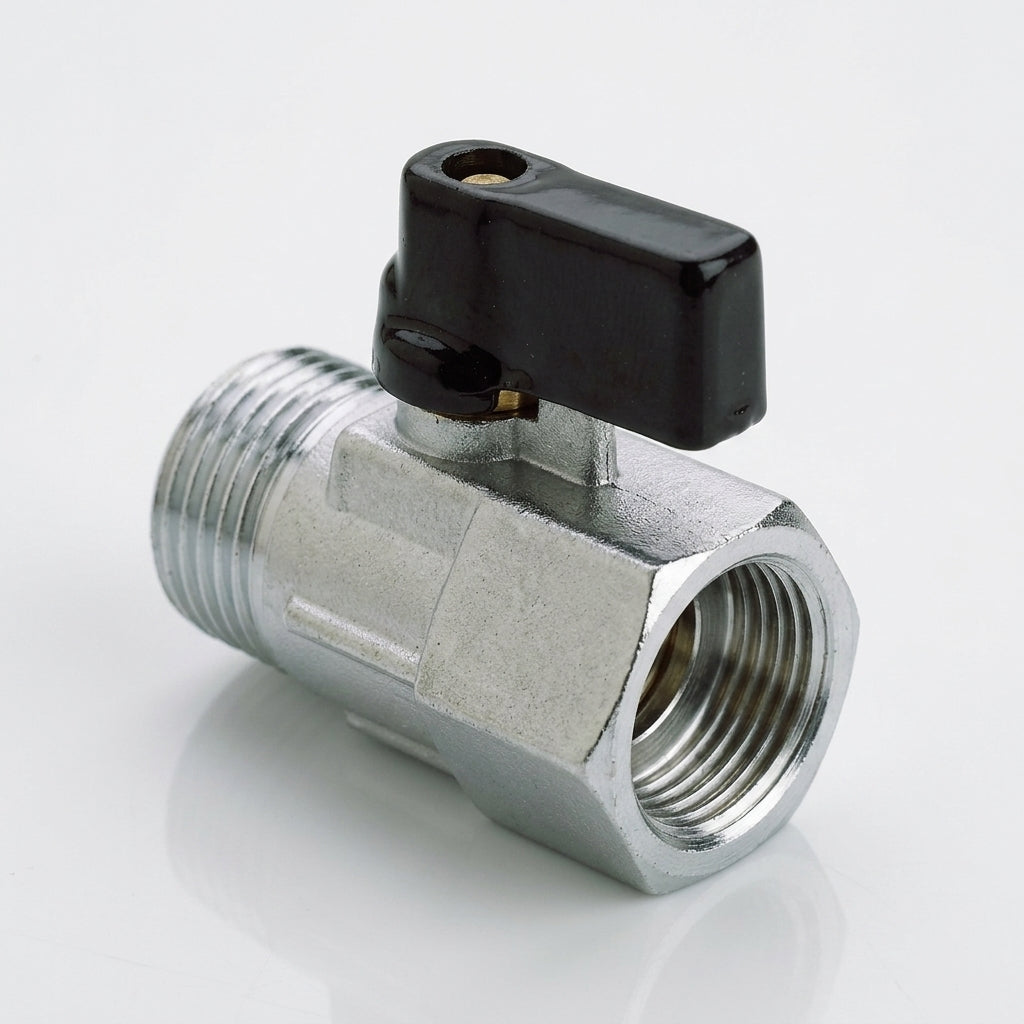

1/4" BSP Mini Ball Valve – Brass Plated, 10 Bar, 41mm

Compact threaded ball valve in nickel/chromium plated brass, rated 10 bar maximum, with full port PTFE ball seats and nitrile seals.

This mini ball valve connects 1/4" BSP male to 1/4" BSP female threads, offering a compact 41mm length suitable for space-constrained installations. The plated brass construction resists corrosion, while PTFE ball seats and nitrile seals ensure reliable operation across a wide range of fluids at pressures up to 10 bar and temperatures to 80°C.

Key Features

• 1/4" BSP male inlet, 1/4" BSP female outlet
• Maximum working pressure: 10 bar
• Maximum fluid temperature: 80°C
• Nickel/chromium plated brass body
• PTFE ball seats for low friction and durability
• Nitrile seals for reliable performance
• Compact 41mm overall length

Specifications

• Connection type: 1/4" BSP male × 1/4" BSP female
• Pressure rating: 10 bar (PN10)
• Temperature range: −20°C to +80°C
• Body material: Plated brass (nickel/chromium)
• Ball seat material: PTFE
• Seal material: Nitrile
• Length: 41 mm

Applications

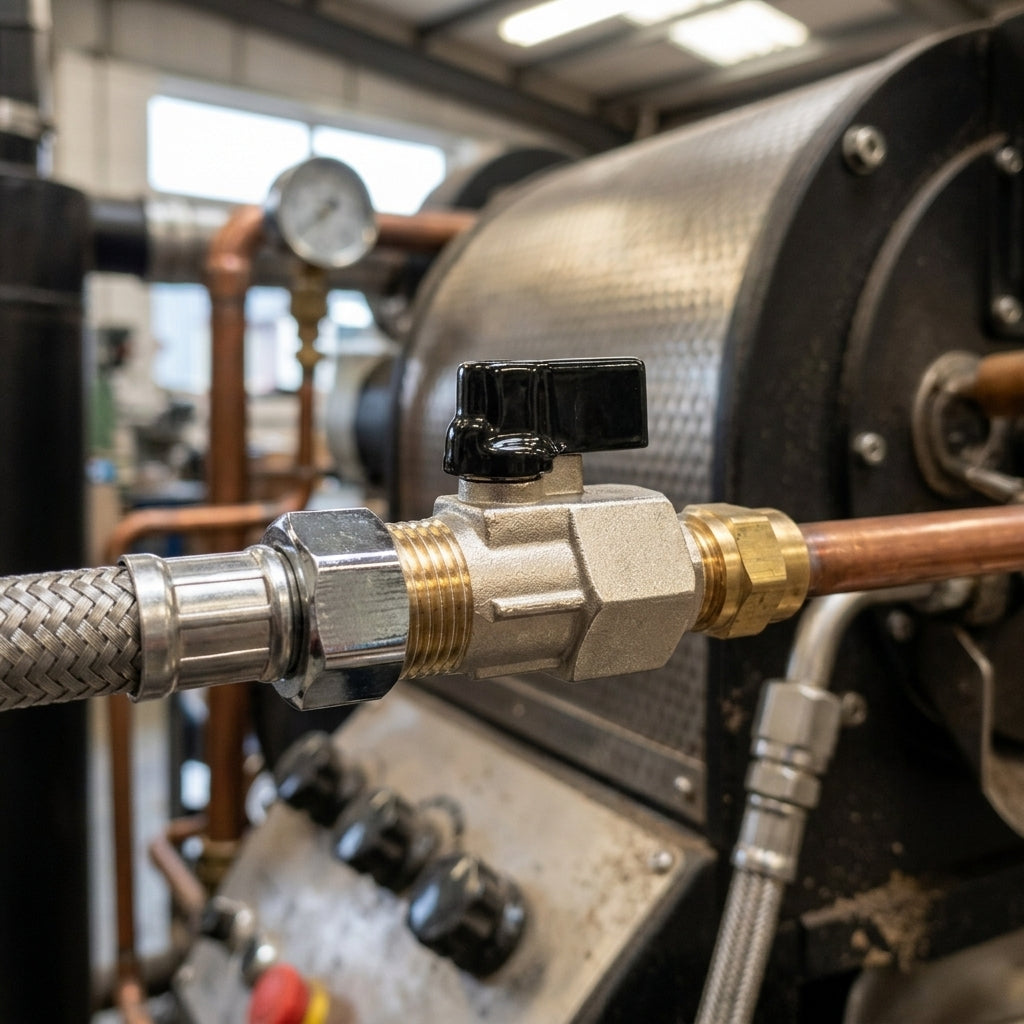

• Pneumatic system isolation and flow control
• Compressed air piping networks
• Water and light fluid applications
• Laboratory and test equipment connections
• Compact manifold and panel-mounted systems
