Description
Compact swivel coupling designed for reliable 350 bar high-pressure fluid transfer in industrial and mobile applications.

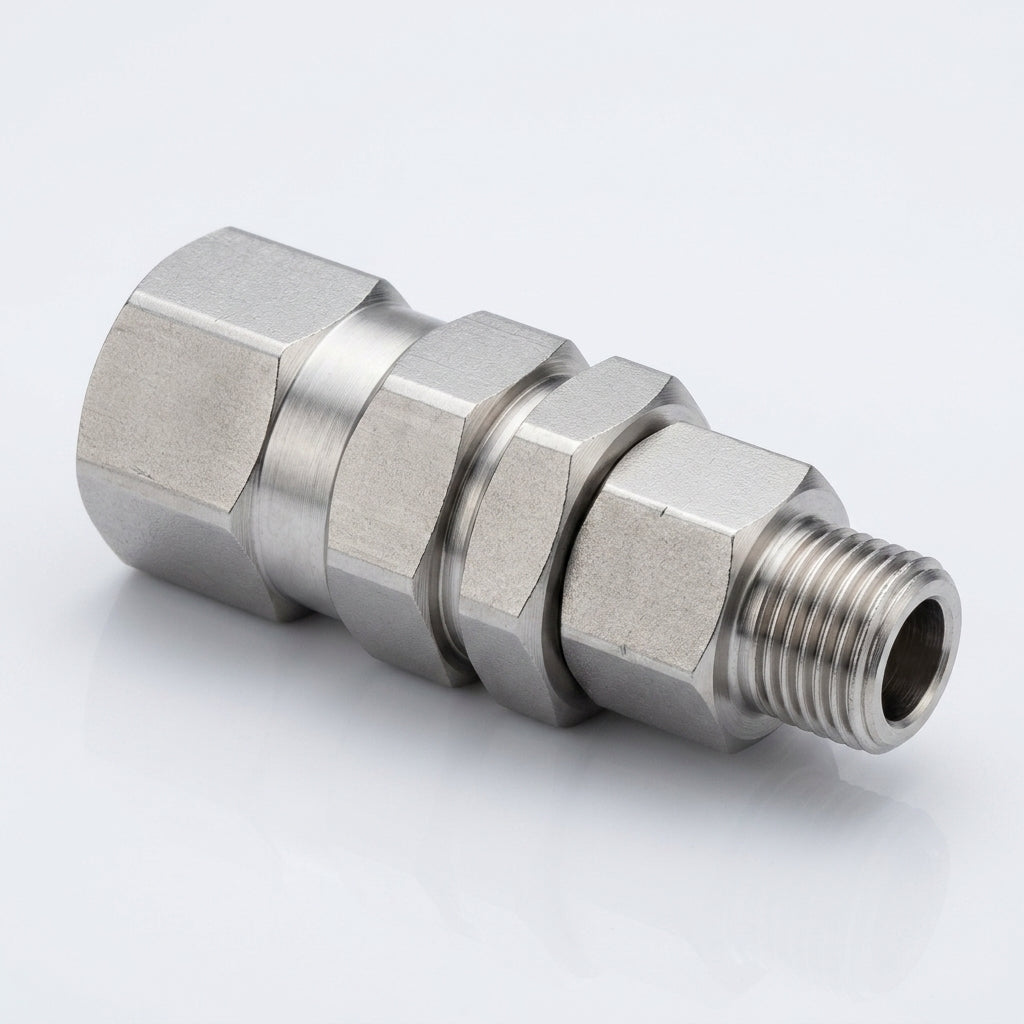

This 1/4" BSP swivel connector features a stainless steel body with FKM (Viton) seals to withstand demanding hydraulic environments. The 90° rotation capability reduces hose stress and simplifies connection alignment in confined spaces. Rated for continuous operation up to 90°C with thermal design limits to 160°C, it supports flow rates to 40 litres per minute.
Key Features
- 350 bar maximum working pressure
- Stainless steel body for corrosion resistance
- FKM (Viton) seals for chemical and temperature stability
- 1/4" BSP male taper inlet and female outlet configuration
- 90° swivel action to reduce hose flexing and strain
- Flow capacity to 40 litres per minute
Specifications
- Inlet: 1/4" BSP male taper
- Outlet: 1/4" BSP female
- Rated pressure: 350 bar
- Maximum flow: 40 litres per minute
- Operating temperature: up to 90°C continuous
- Design temperature: 160°C
- Maximum speed: 30 rpm
- Sealing material: FKM (Viton)
- Body material: stainless steel
Applications
- Hydraulic power units and mobile machinery
- Industrial fluid transfer systems with rotating components
- Equipment requiring hose relief and alignment flexibility
- High-pressure pressure-wash and cleaning systems
- Agricultural and construction equipment hydraulics
