Description

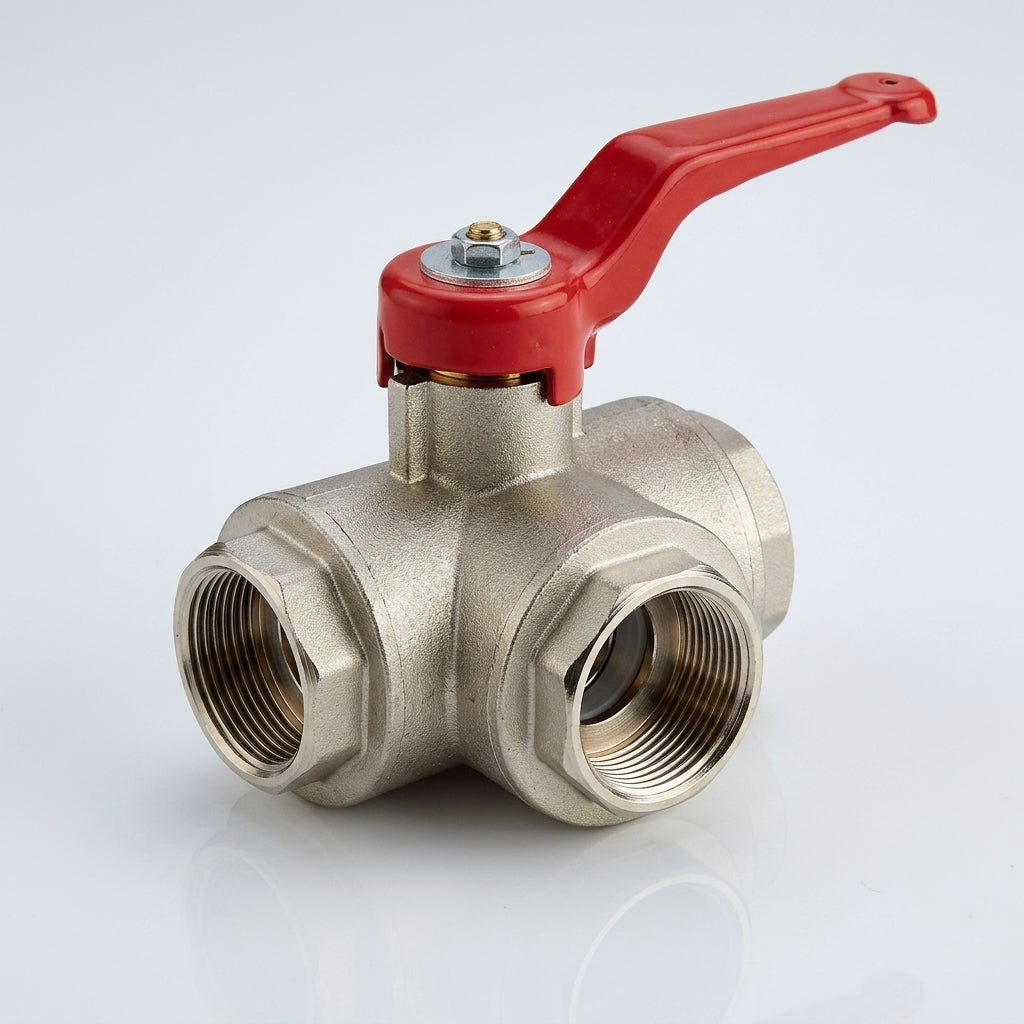

Three-way T port ball valve with 1" BSP female connections, rated to 25 bar maximum pressure.
This robust brass valve features a T-port configuration for diverting or combining fluid flows. The nickel and chromium plated body resists corrosion, whilst PTFE ball seats and Viton seals ensure reliable sealing performance across a range of industrial applications. Suitable for temperatures up to 80°C.
Key Features
- 1" BSP female threaded connections
- T-port configuration for flow diversion
- Nickel and chromium plated brass construction
- PTFE ball seats for durable sealing
- Viton seals for chemical resistance
- Rated to 25 bar maximum working pressure
Specifications
- Connection size: 1" BSP female
- Port configuration: T-port (3-way)
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Body material: Nickel/chromium plated brass
- Seat material: PTFE
- Seal material: Viton
Applications
- Water and air system flow control
- Industrial fluid transfer and distribution
- Circulating pump bypass systems
- Tank filling and drainage networks
- Process fluid diversion and mixing
