Description

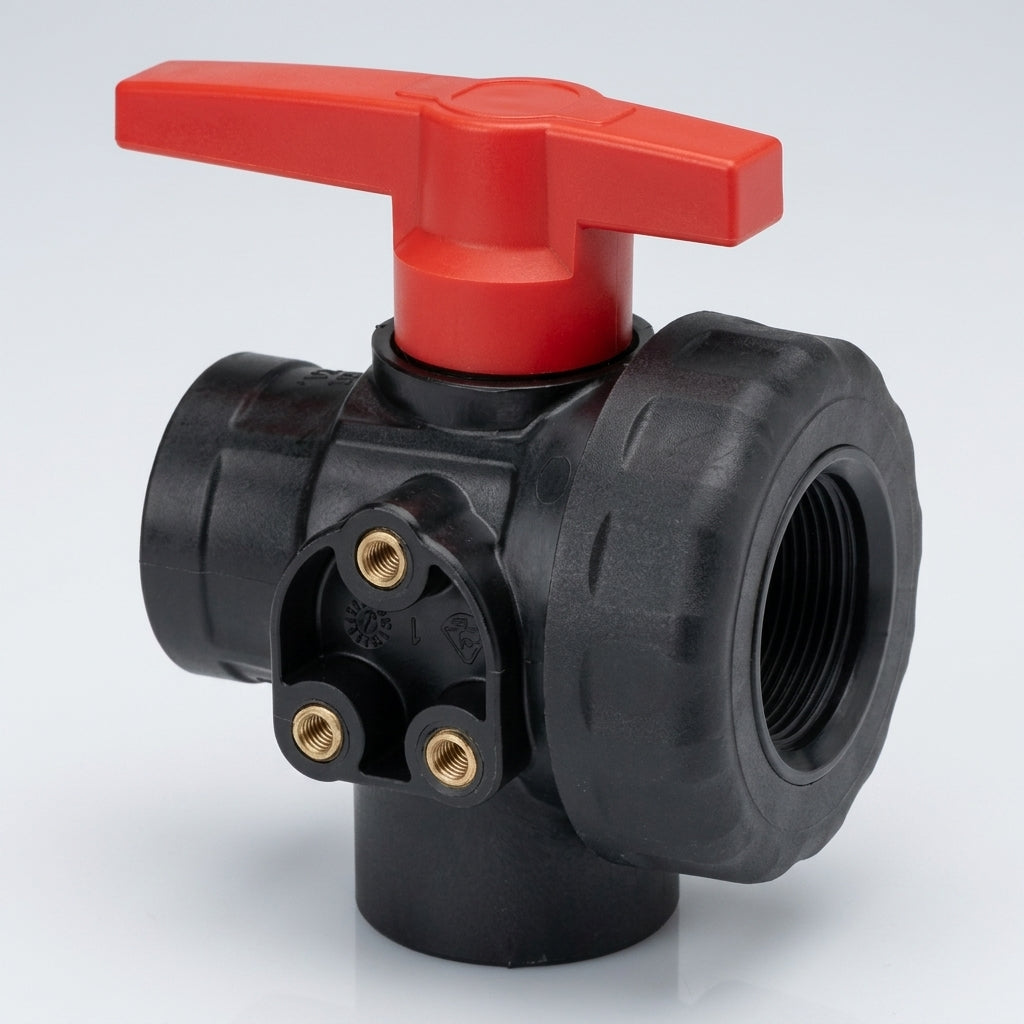

A 3-way T port polypropylene ball valve with 1" BSP female threads and 16 bar operating pressure for industrial flow distribution systems.
This fibreglass-reinforced polypropylene valve features Teflon ball seats and EPDM seals for reliable performance in demanding applications. The T port configuration maintains continuous flow through one main line whilst diverting secondary circuits, making it essential for multi-directional fluid routing without isolation capability on the primary circuit.
Key Features
- Fibreglass-reinforced polypropylene construction
- Teflon ball seats for smooth operation and durability
- EPDM seals for broad chemical compatibility
- 16 bar maximum working pressure
- 2× M8 threaded mounting points for secure installation
- T port design for continuous primary flow with diversion control
Specifications
- Port size: 1" BSP female
- Valve type: 3-way ball valve
- Port configuration: T port (flow through main circuit cannot be fully shut)
- Maximum pressure: 16 bar
- Body material: Fibreglass-reinforced polypropylene
- Sealing: Teflon ball seats, EPDM seals
- Mounting: 2× M8 threads
Applications
- Multi-circuit cooling and heating distribution systems
- Process water flow diversion and control
- Industrial fluid routing and switching
- Tank filling and circulation manifolds
- Chemical and agricultural dispensing systems
