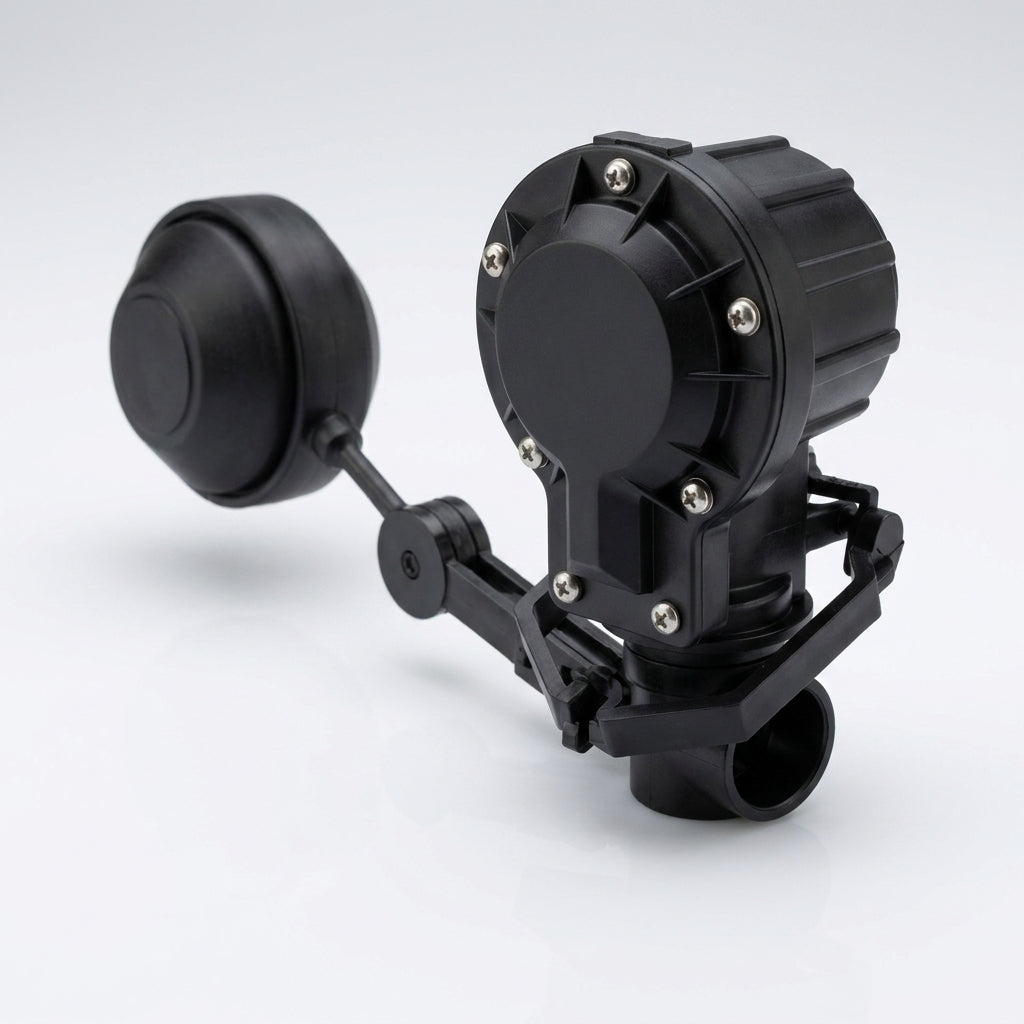

1½" BSP Float Valve with Instant Shut-off Control

Hydraulic float valve designed to regulate water levels in tanks and cisterns with instant shut-off action.

This float valve eliminates repeated pump stop/start cycling by transitioning instantly from fully open to fully closed. High flow rate enables rapid tank filling with minimal pressure loss. Features a delayed re-start level of approximately 3cm to further reduce pump cycling frequency.

Key Features

• Instant full open to full closed transition prevents pump cycling
• High flow rate for rapid filling with minimal pressure loss
• Delayed re-start level (~3cm) reduces pump start frequency
• Adjustable float arm extending up to 60mm with 6 settings
• Polycarbonate body and float with stainless steel fasteners
• CE marked

Specifications

• Connection: 1½" BSP
• Operating pressure: 0.2–6 bar
• Operating temperature: 0–50°C
• Storage temperature: −20–80°C
• Burst pressure: >20 bar
• Float movement range: 0–180°
• Body material: Polycarbonate; Membrane: SEBS; Levers: ABS

Applications

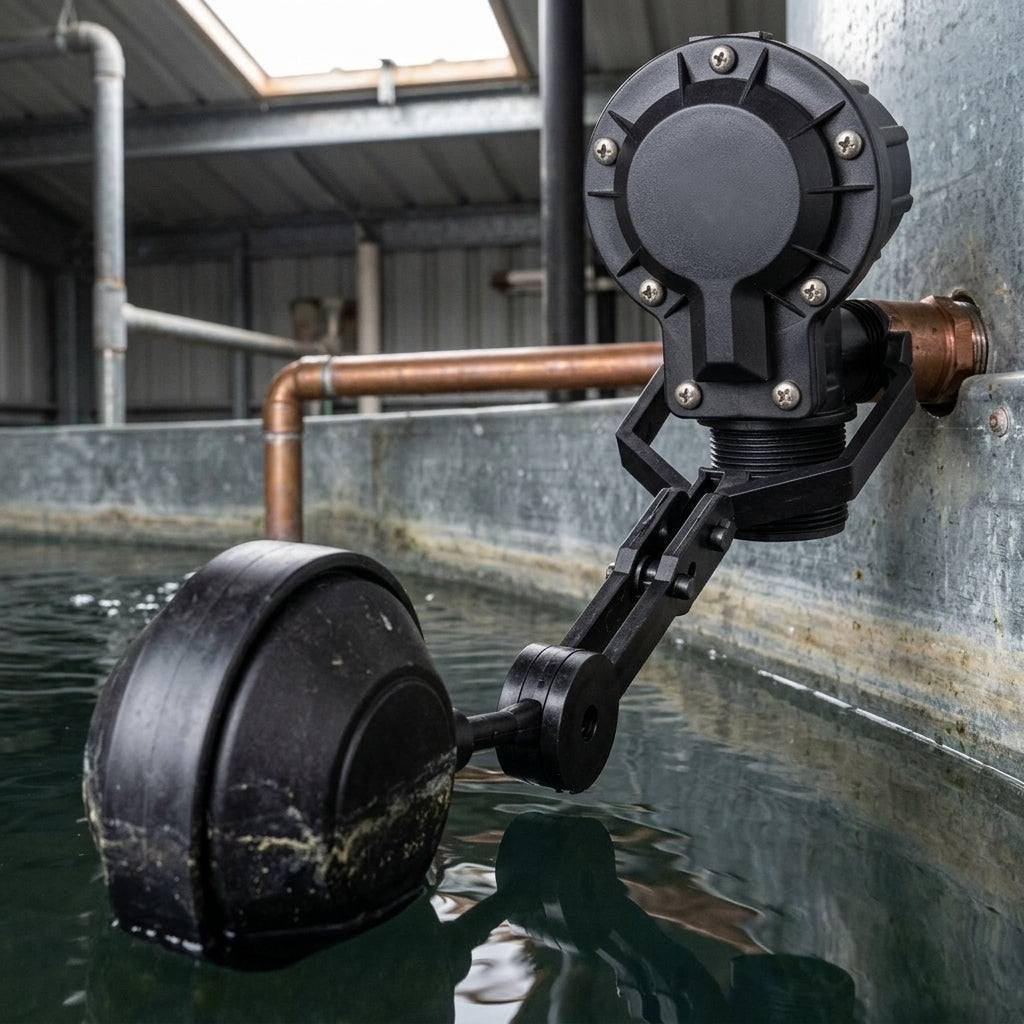

• Domestic and commercial water tank level regulation
• Cistern fill control systems
• Pump protection from excessive cycling
• Rainwater harvesting tank systems
• Industrial water storage and circulation
