Description

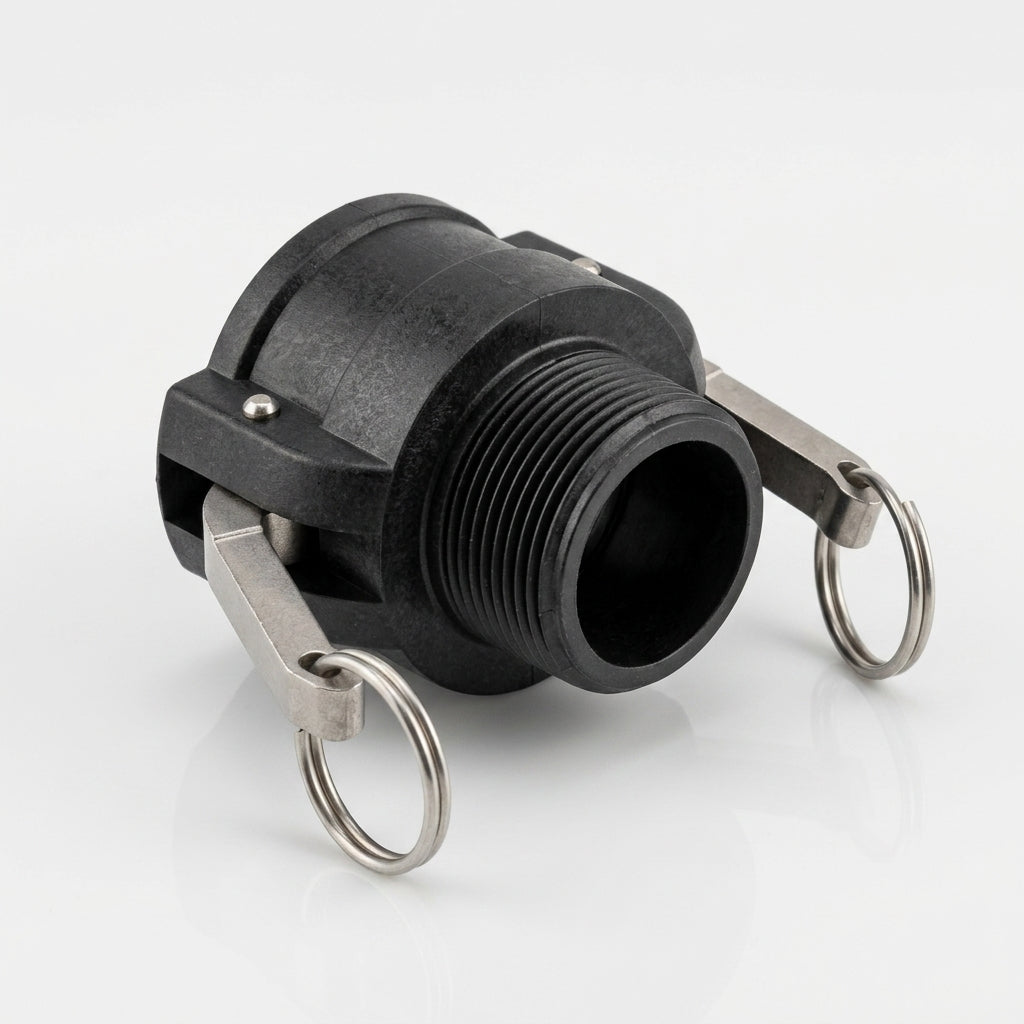

Single-piece cam lever coupler in reinforced polypropylene with stainless steel components and EPDM gasket.
A quick-disconnect coupling designed for reliable fluid transfer. The glass-reinforced polypropylene body is paired with stainless steel arms, rings and pins to resist corrosion and withstand repeated connection cycles. Self-aligning grooves ensure consistent sealing performance.
Key Features
- 1" NPT male thread x 1" coupling socket
- Glass-reinforced polypropylene body
- Stainless steel arms, rings and pins
- EPDM gasket seal
- Self-aligning groove design
- Temperature-rated pressure ratings from 4.8 to 8.6 bar depending on ambient conditions
Specifications
- Thread size: 1" male
- Coupling diameter: 1"
- Maximum pressure at 21.2°C: 8.6 bar
- Maximum pressure at -17.8°C: 6.4 bar
- Maximum pressure at 47.8°C: 4.8 bar
- Gasket material: EPDM
- Compatible with 1" adaptors
Applications

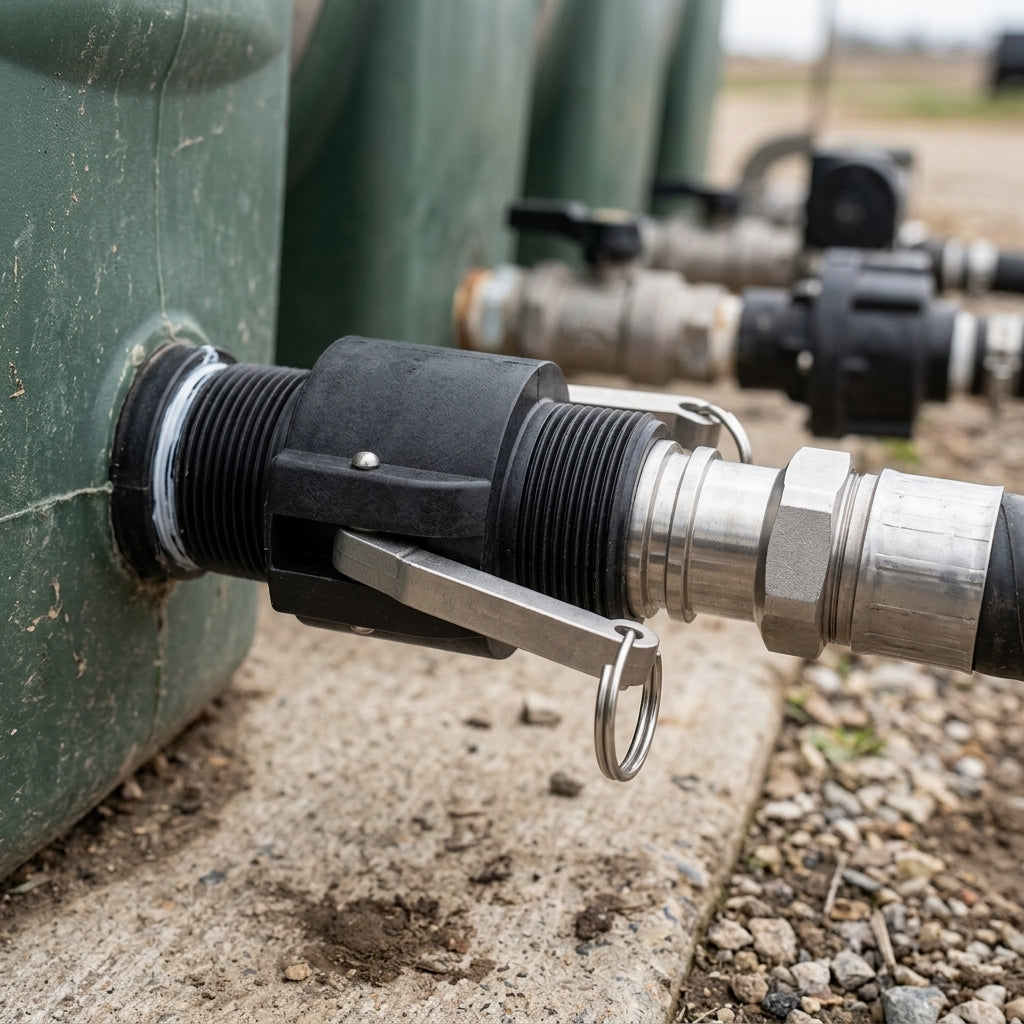

- Water transfer and circulation systems
- Agricultural and horticultural fluid distribution
- Industrial fluid management
- Portable tank and container coupling
- Low-pressure chemical handling
