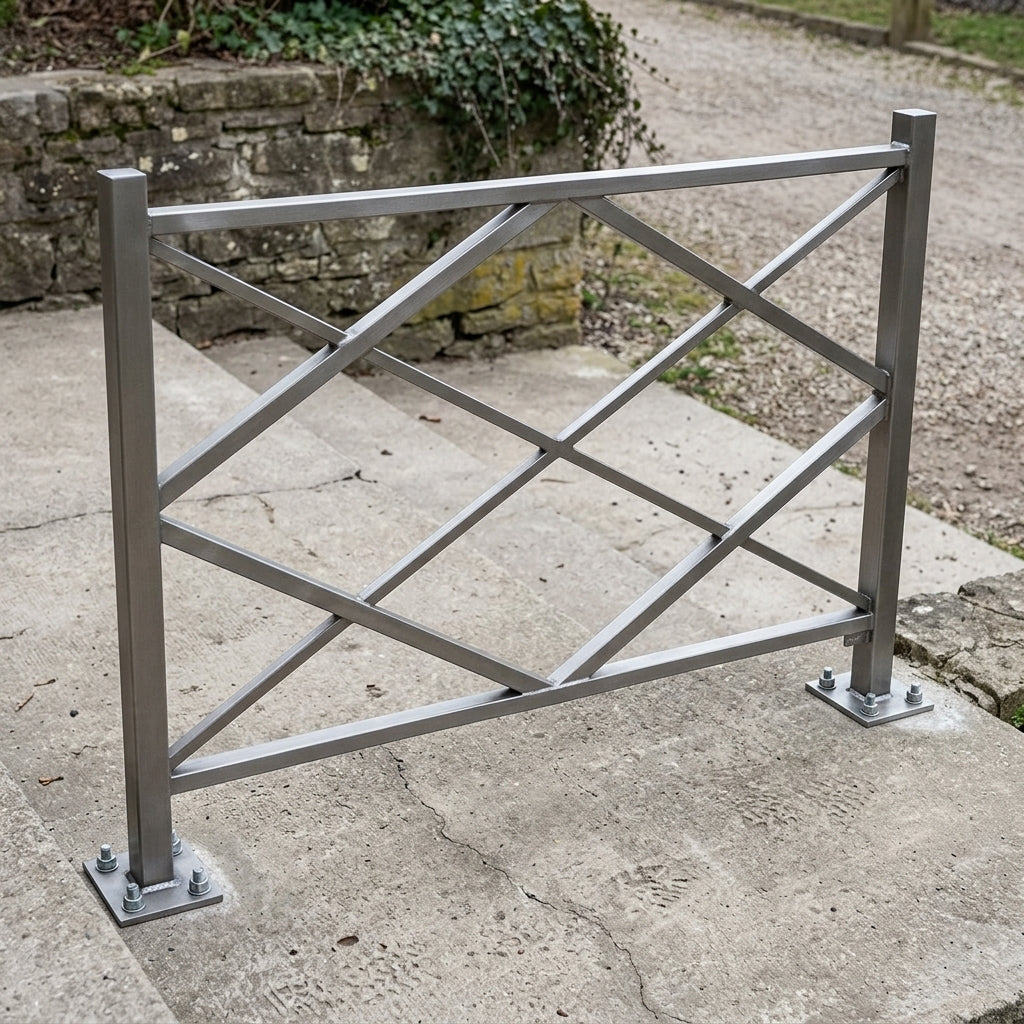

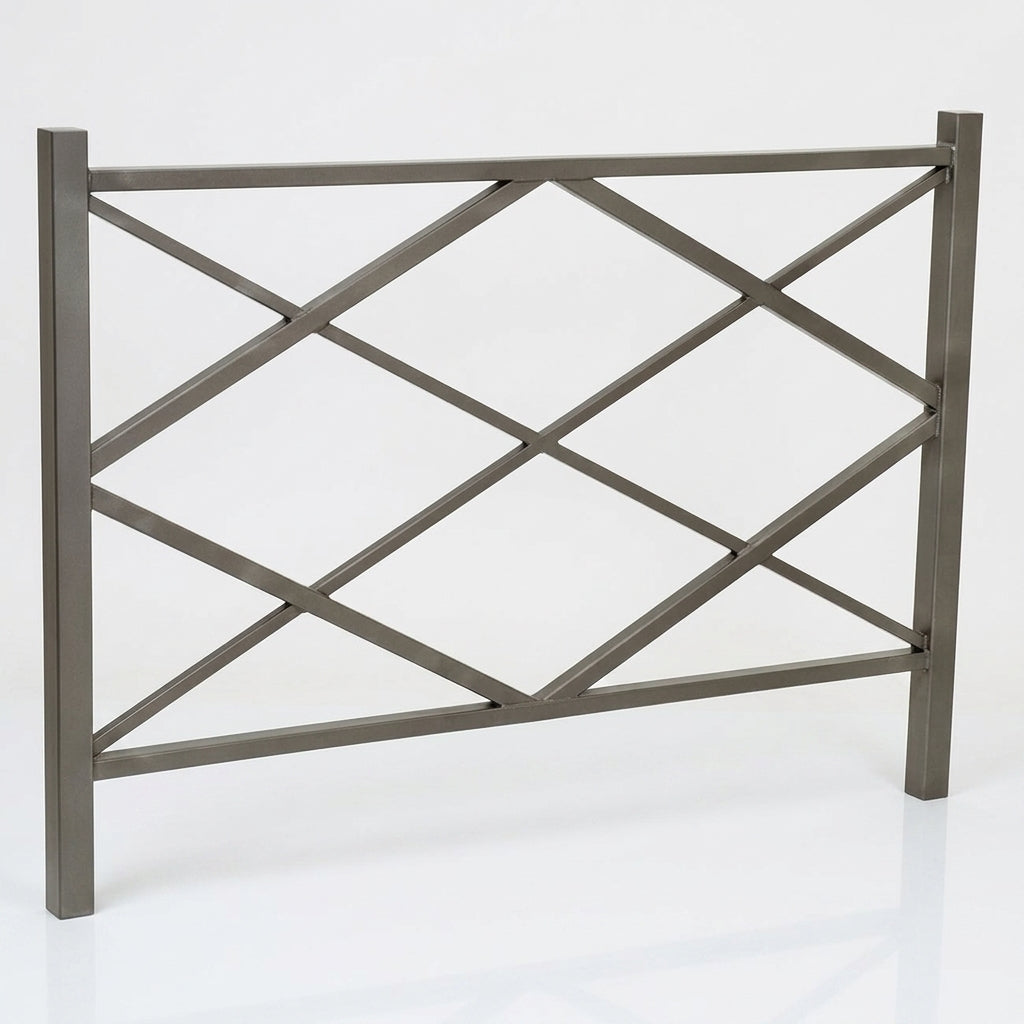

1000–1500mm Diamond Pattern Steel Railing 1200mm Height

Galvanised steel railing with diamond pattern cross-bracing, available in fixed or removable configurations for pedestrian and traffic separation.

This contemporary steel railing features a distinctive diamond-pattern design suitable for public spaces, transport hubs and traffic management applications. Constructed from galvanised steel with zinc-primed finish and available in standard RAL colours, it combines durability with visual appeal across diverse environments.

Key Features

• Galvanised steel construction with zinc-primed and RAL-coated finish
• 50 × 50mm steel outer posts with 40 × 27mm, 30 × 30mm and 20 × 20mm cross-bars
• 1200mm fixed height with choice of 1000mm or 1500mm panel lengths
• Removable option using triangle-key-locked socket system with ground-flush boss
• Complete corrosion protection via 100% galvanised components
• Natural rainwater drainage through integrated gravel reservoir

Specifications

• Height: 1200mm
• Panel lengths: 1000mm or 1500mm
• Post section: 50 × 50mm
• Cross-bar sections: 40 × 27mm, 30 × 30mm, 20 × 20mm
• Material: Galvanised steel, zinc-primed
• Finish: Standard RAL colour range available
• Installation method: Direct ground concreting or removable Lockblock socket system
• Socket depth: 180mm insertion height

Applications

• Pedestrian and vehicle traffic separation on highways and public spaces
• Temporary or permanent event and venue perimeter protection
• Public transport infrastructure and station forecourts
• Car parks, loading areas and industrial site boundaries
• Urban streetscape and landscape design installations
