Description

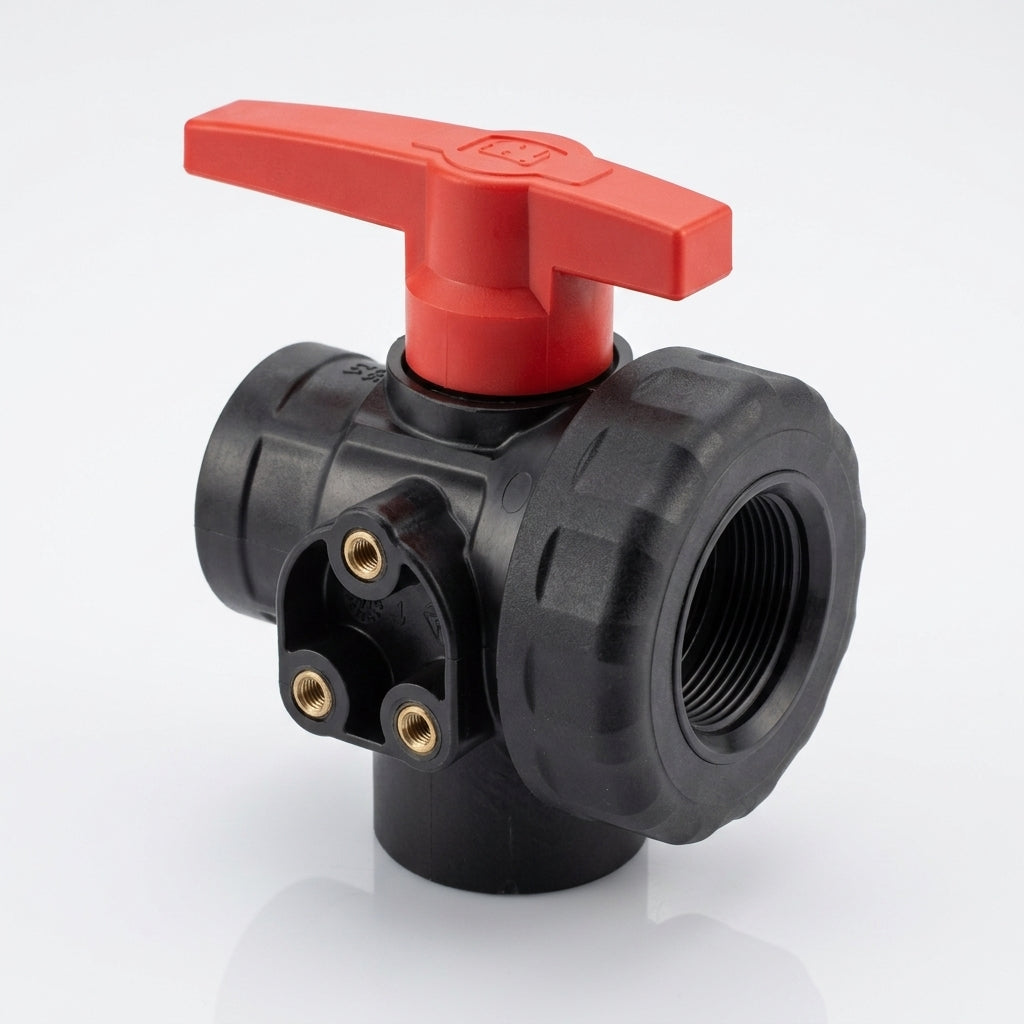

Fibreglass-reinforced polypropylene 3-way ball valve with BSP female threads and L-port flow configuration.
This 2" 3-way ball valve features reinforced polypropylene construction suitable for pressures up to 16 bar. The L-port design enables flow control capability, allowing lines to be isolated or redirected as required. Teflon ball seats and EPDM seals ensure reliable sealing and durability across repeated operating cycles.
Key Features
- 2" BSP female thread connections
- L-port configuration for flow control capability
- Fibreglass-reinforced polypropylene body
- Teflon ball seats for reduced friction
- EPDM seals for chemical resistance
- Two M8 mounting threads for fixed installation
Specifications
- Thread size: 2" BSP female
- Port type: L-port (3-way)
- Maximum pressure: 16 bar
- Material: Fibreglass-reinforced polypropylene
- Ball seat material: Teflon
- Seal material: EPDM
- Mounting: 2× M8 threaded holes
Applications

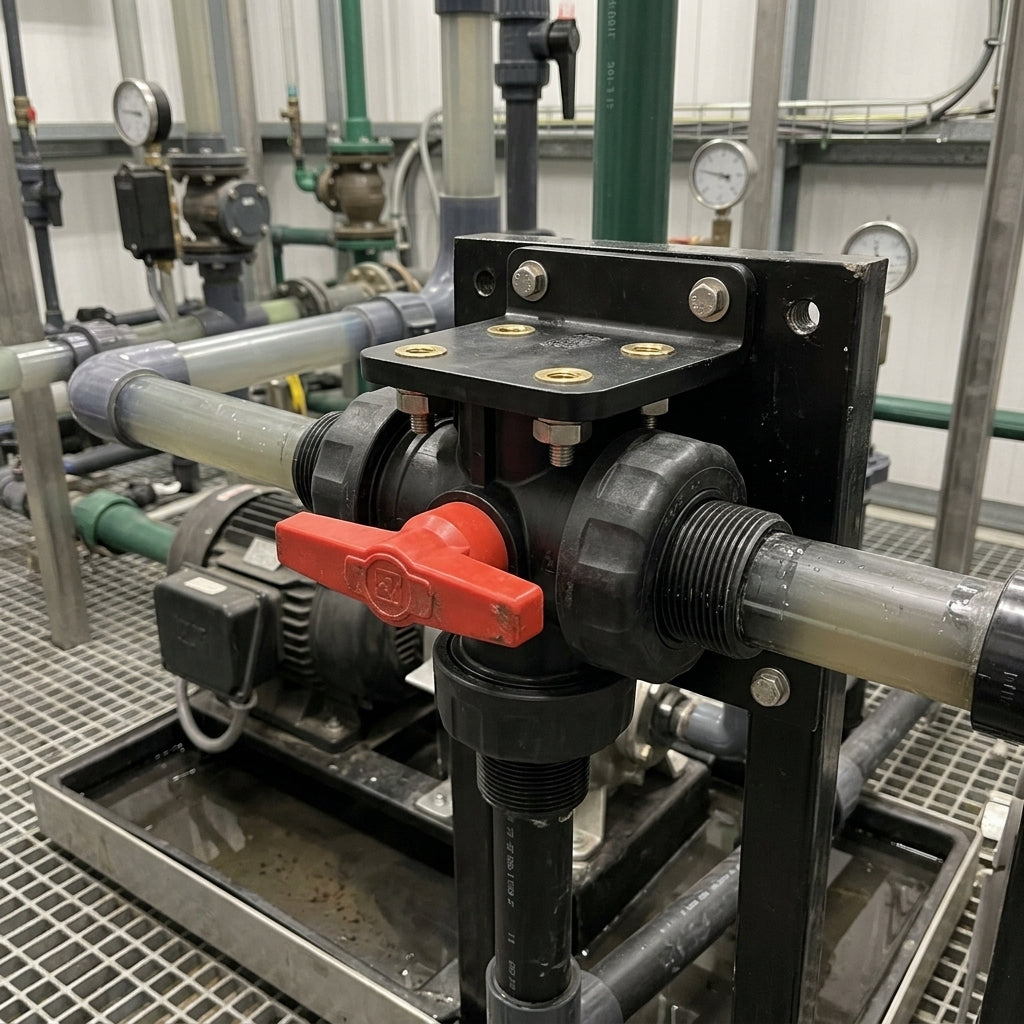

- Flow diversion and isolation in industrial piping systems
- Directional control in dosing and chemical handling
- Tank filling and emptying line management
- Multi-outlet distribution systems
- Pressure-rated process control installations
