Description

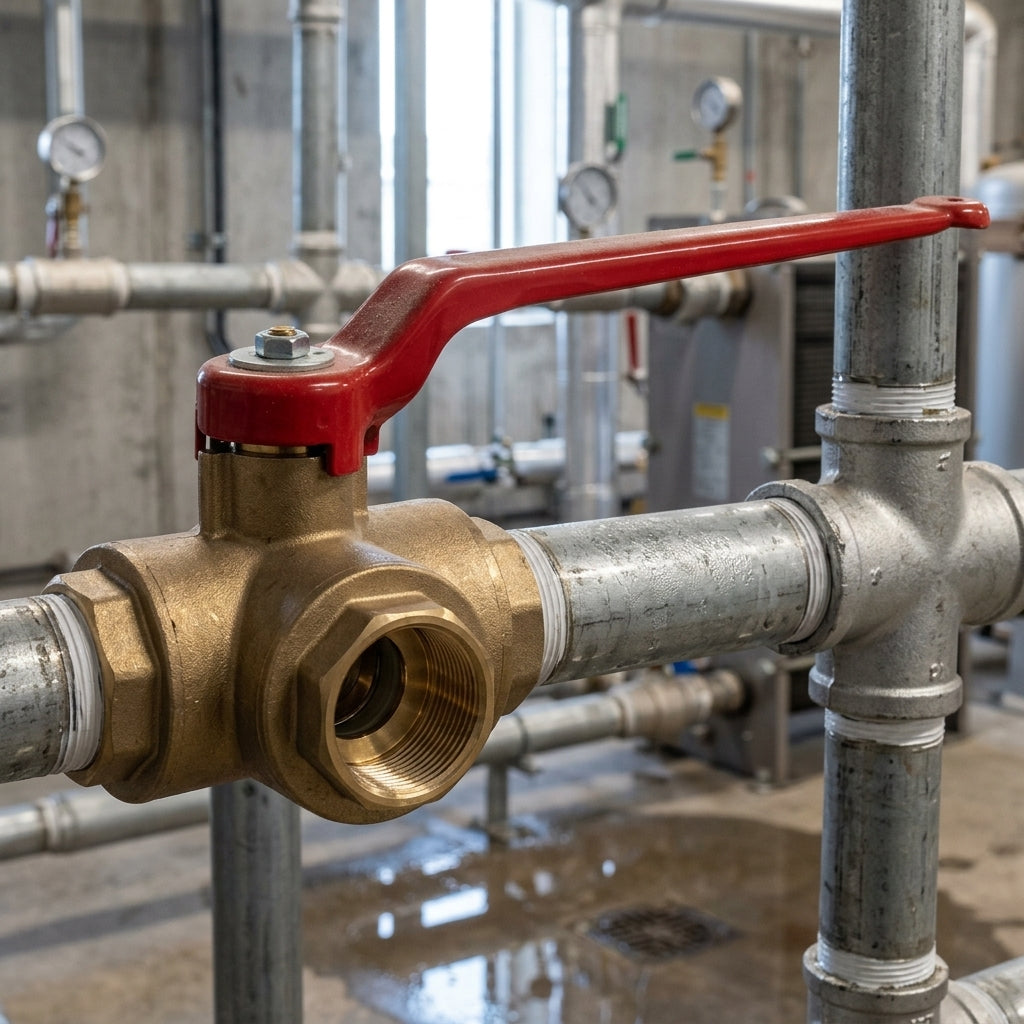

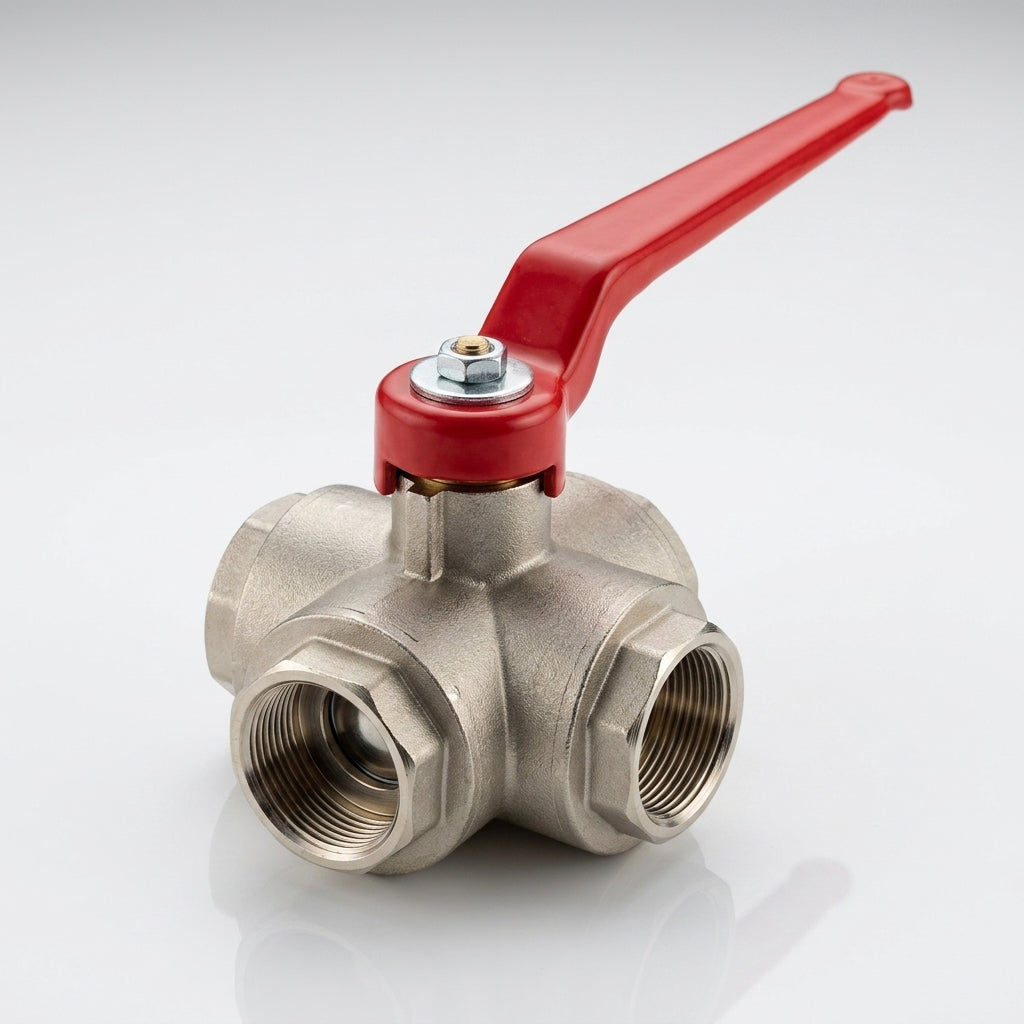

Three-way T port ball valve with 2" BSP female connections for multi-directional flow control in pressurised systems.
This compact T-configuration valve enables simultaneous flow distribution or selective routing across three ports. Constructed from nickel and chromium-plated brass with a robust PTFE ball seat design, it delivers reliable performance in general industrial and commercial fluid applications.
Key Features
- 2" BSP female threaded connections on all three ports
- T-port configuration for multi-directional flow control
- Nickel/chromium-plated brass body
- PTFE ball seats for long service life
- Viton seals for chemical compatibility
- Quarter-turn ball mechanism
Specifications
- Maximum working pressure: 20 bar
- Maximum fluid temperature: 80°C
- Port configuration: T-shaped (three ports)
- Connection type: 2" BSP female threads
- Material: Nickel/chromium-plated brass
- Seat material: PTFE
- Seal material: Viton
Applications
- Process fluid routing and distribution
- System bypass and diverter applications
- Tank fill and drain manifolds
- General industrial liquid control
- Commercial heating and cooling systems
