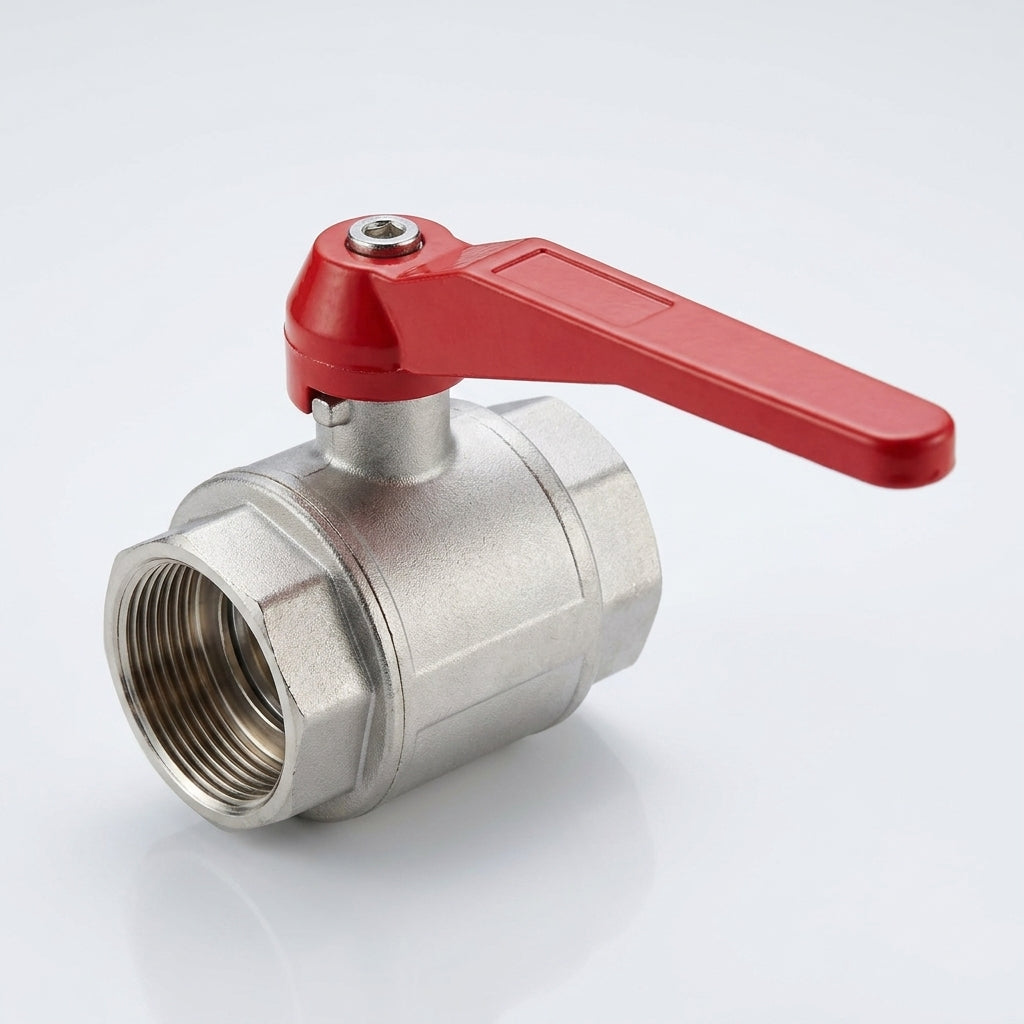

2" BSP Female Lever Ball Valve, Brass, 20 Bar, 105mm

Nickel/chromium plated brass lever ball valve with 2" BSP female connections on both ends.

This compact valve delivers reliable on-off flow control with a full-bore design and PTFE ball seats for long service life. Built to withstand 20 bar working pressure and temperatures up to 80°C, it suits a broad range of water, light oils, and general fluid handling systems. The lever handle provides quick manual operation and clear flow indication.

Key Features

• 2" BSP female inlet and outlet threads
• Nickel/chromium plated brass body
• PTFE ball seats for corrosion resistance
• Lever handle for one-quarter-turn operation
• Compact 105 mm body length
• 20 bar maximum working pressure; 80°C maximum fluid temperature

Specifications

• Connection size: 2" BSP female both ends
• Maximum pressure: 20 bar
• Maximum temperature: 80°C
• Body material: plated brass
• Seat material: PTFE
• Overall length: 105 mm
• Valve type: full-bore ball valve

Applications

• General water supply and distribution systems
• Light hydraulic and pneumatic circuits
• Plant and machinery fluid control
• Irrigation and agricultural fluid handling
• Industrial process fluid isolation and regulation
