Description

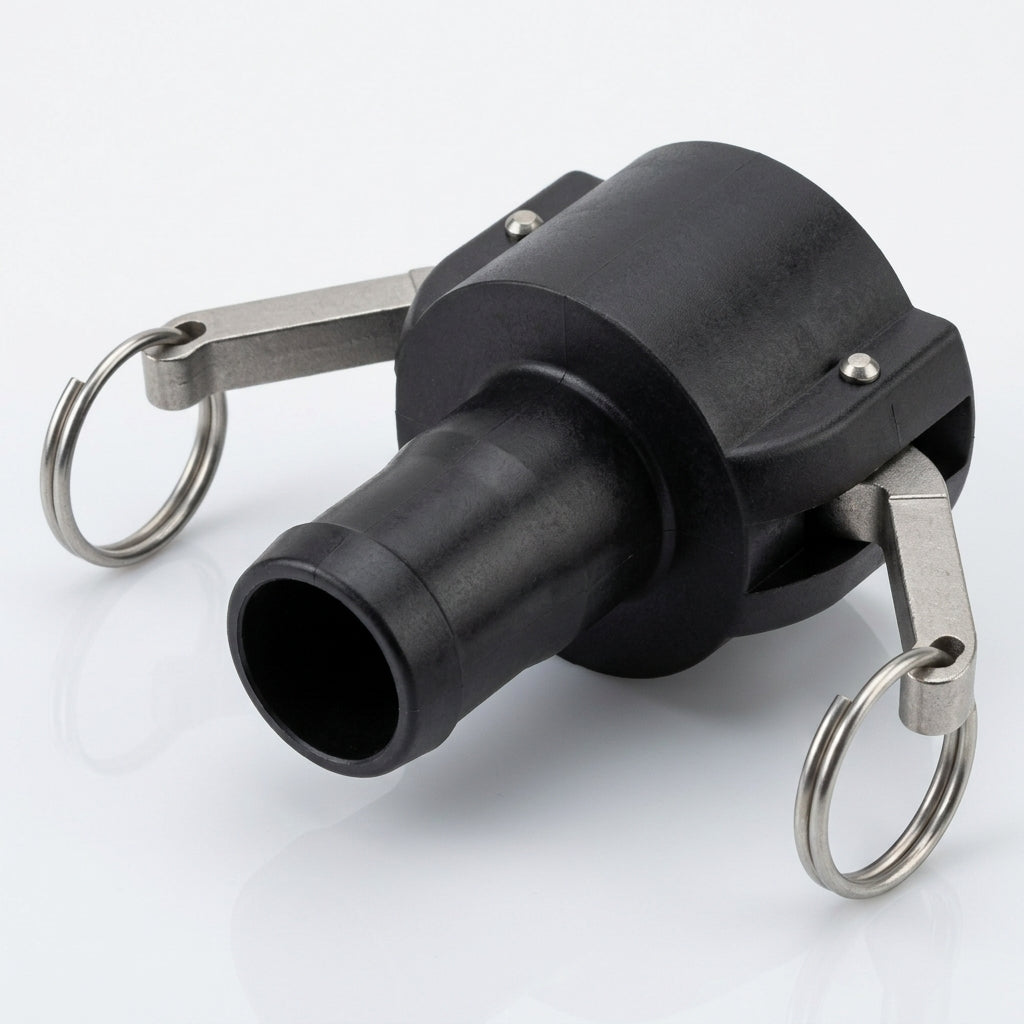

Quick-disconnect cam lever coupler with 2" hose barb and 2" coupling socket, engineered for reliable fluid transfer applications.
This coupler combines a glass-reinforced polypropylene body with stainless steel arms, rings and pins for durability and corrosion resistance. The EPDM gasket ensures a reliable seal across a range of operating temperatures, making it suitable for both hot and cold environment applications.
Key Features
- 2" hose barb inlet and 2" coupling outlet
- Glass-reinforced polypropylene construction
- Stainless steel arms, rings and locking pins
- EPDM gasket for temperature-resistant sealing
- Pressure-rated across temperature range
- Compatible with 2" adaptor systems
Specifications
- Hose barb: 2"
- Coupling size: 2"
- Body material: Glass-reinforced polypropylene
- Hardware material: Stainless steel
- Seal material: EPDM
- Maximum pressure at -17.8°C: 6.4 bar
- Maximum pressure at 21.2°C: 8.6 bar
- Maximum pressure at 47.8°C: 4.8 bar
Applications
- Agricultural spraying systems
- Fluid transfer and chemical distribution
- Tank and pump connections
- Industrial hose line couplings
- Temporary or portable fluid systems
