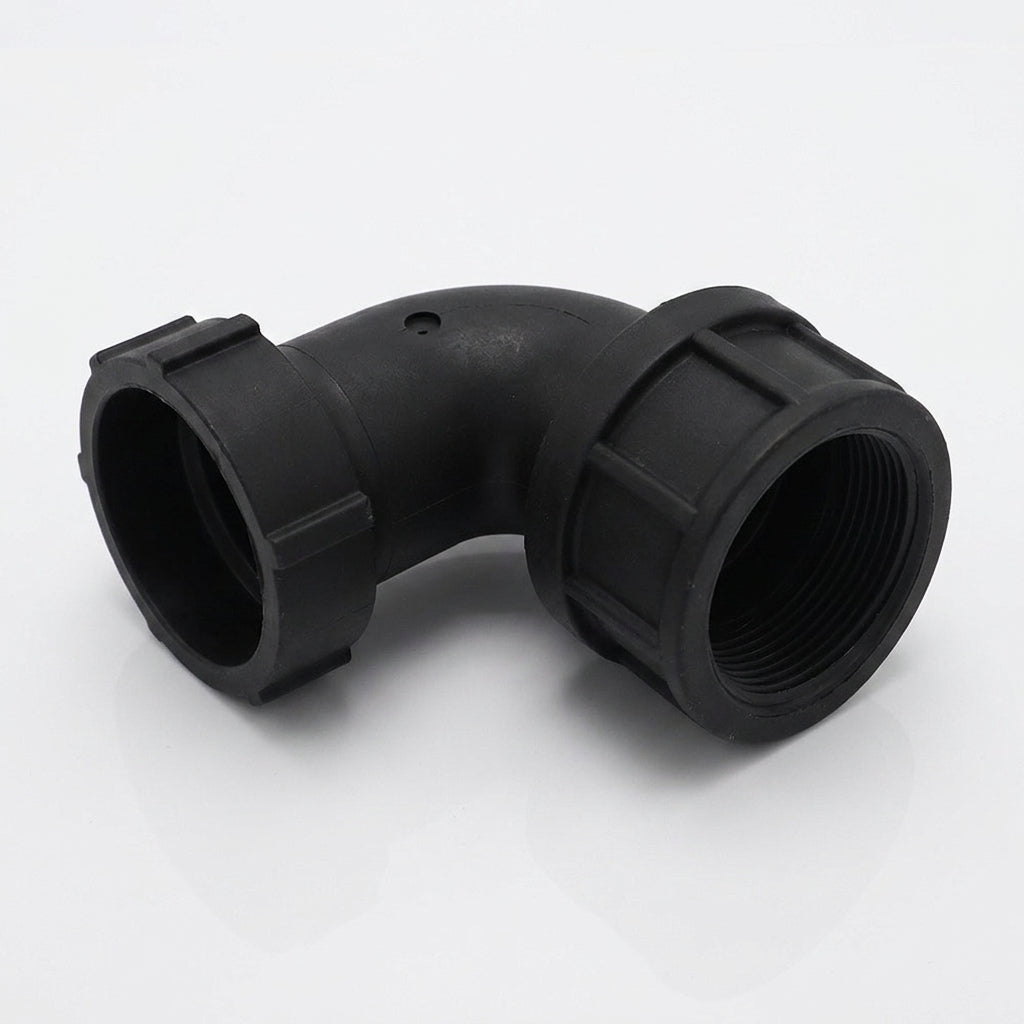

2 inch Camlock to BSP Female 90-Degree Elbow Adapter

Reinforced polypropylene 90-degree elbow adapter connecting camlock couplers to BSP female ports for compact system layouts.

This angled connector enables efficient hose connections in confined spaces where straight-line installations are impractical. The locking-arm design secures the connection and prevents leakage, whilst the LDPE gasket provides reliable fluid containment. Ideal for IBC (Intermediate Bulk Container) installations and hazardous material transfer systems requiring chemical resistance.

Key Features

• 90-degree angle for space-constrained installations
• Folding arms lock securely to prevent leaks and movement
• LDPE gasket ensures reliable liquid containment
• Chemical and hazardous material resistant construction
• Lightweight polypropylene design
• Operating temperature range −20°C to +70°C

Specifications

• Camlock end: 2 inch
• BSP female end: 2 inch
• Connection angle: 90 degrees
• Material: Reinforced polypropylene
• Gasket material: LDPE
• Temperature range: −20°C to +70°C
• Note: Camlock end plug not included

Applications

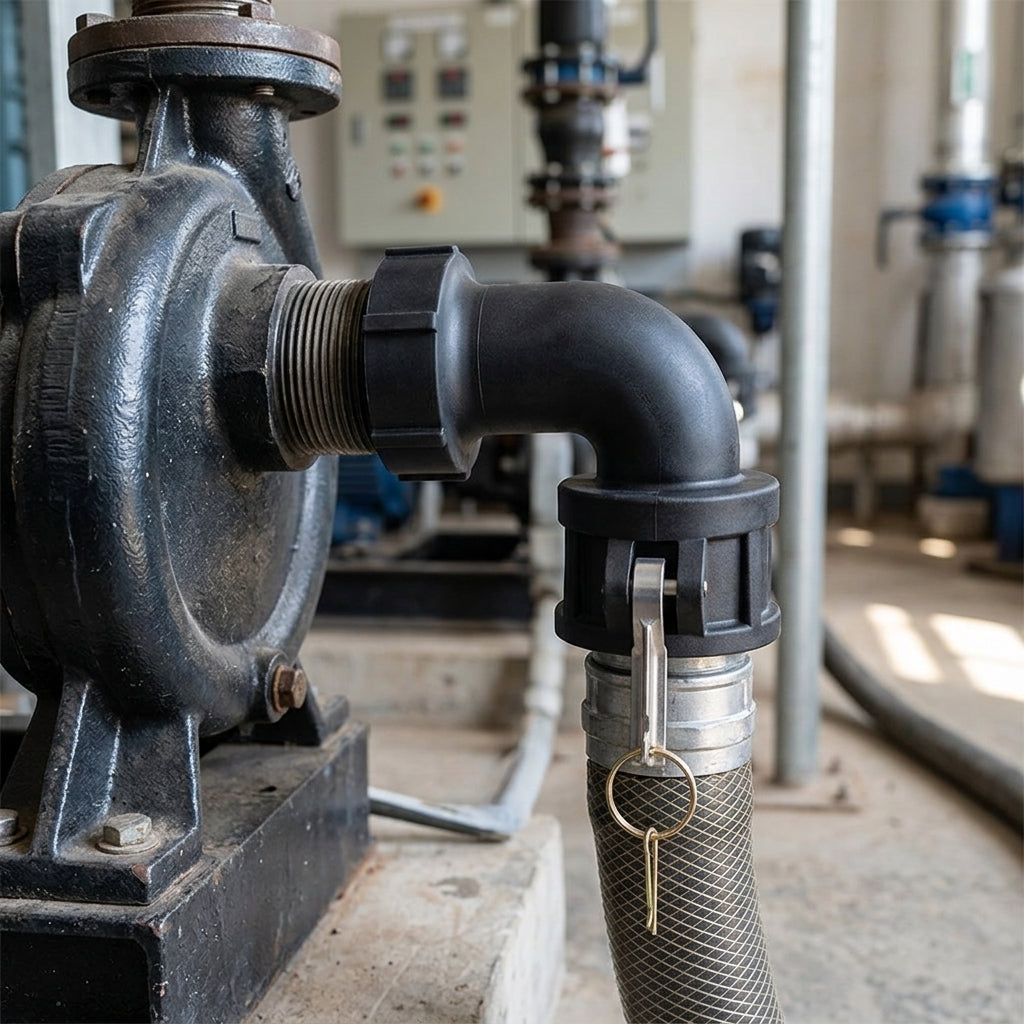

• IBC and large tank connections in confined spaces
• Hazardous liquid and chemical transfer systems
• Industrial fluid handling and distribution
• Waste management and recycling operations
• Agricultural and water treatment installations
