2 inch Camlock to Hose Tail 90-Degree Elbow Coupler

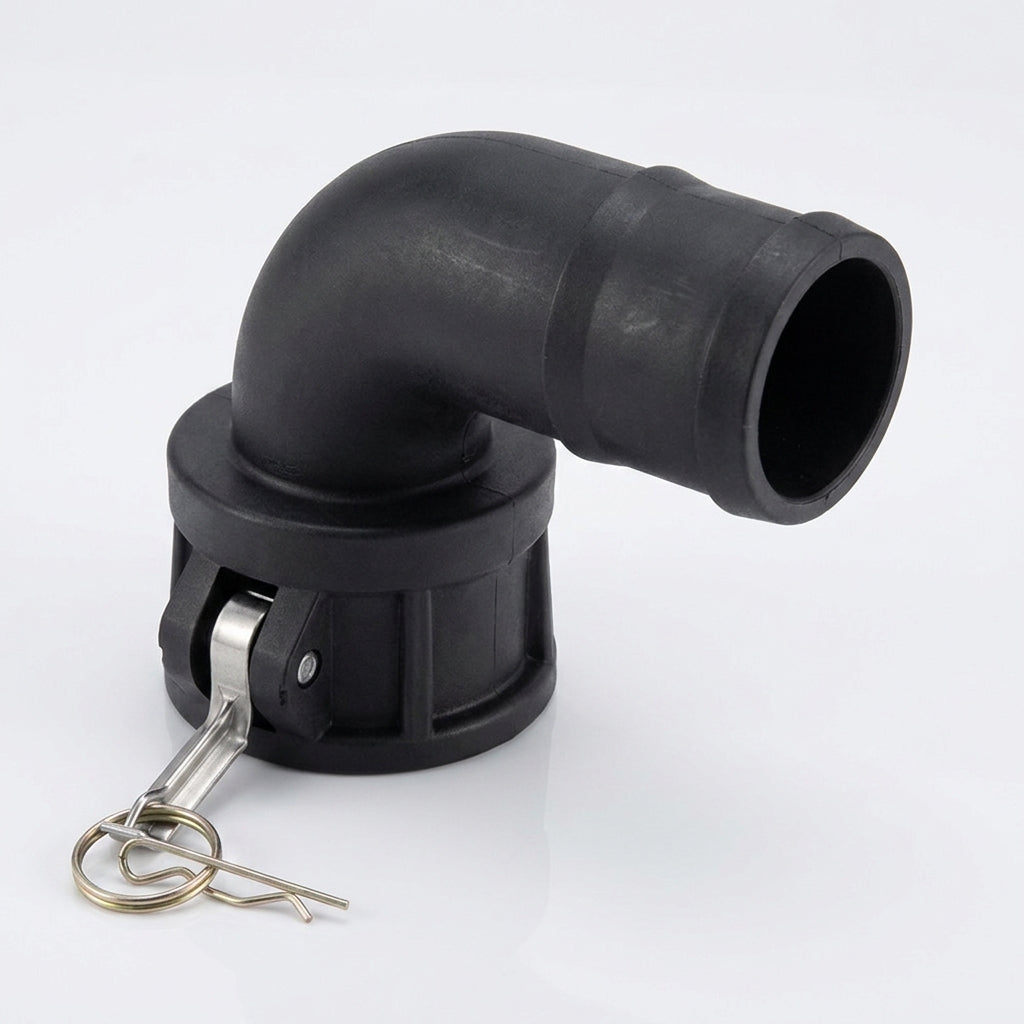

90-degree elbow camlock coupler connecting 2 inch BSP camlock to 2 inch hose tail, manufactured from reinforced polypropylene with LDPE gasket.

This compact right-angle adaptor enables hose connections in confined spaces and inline system configurations. The folding lever arms lock securely to prevent leaks and unwanted movement during operation. Suitable for transfer of liquids and most chemical solutions across a wide temperature and application range.

Key Features

• 90-degree angle connection for minimal-space installations and IBC tank compatibility
• Reinforced polypropylene construction with LDPE gasket seal
• Secure lever-arm locking mechanism prevents leaks and movement
• Operating temperature range −20°C to +70°C
• Resistant to most chemicals and hazardous materials
• Lightweight design for easy handling and installation

Specifications

• Camlock connection: 2 inch BSP
• Hose tail: 2 inch
• Angle: 90 degrees
• Material: Reinforced polypropylene body with LDPE gasket
• Temperature range: −20°C to +70°C

Applications

• IBC container and tank discharge in space-restricted locations
• Inline fluid transfer systems requiring directional changes
• Chemical and hazardous material handling
• Mobile and temporary transfer installations
• Industrial cleaning and washdown equipment setups
