Description

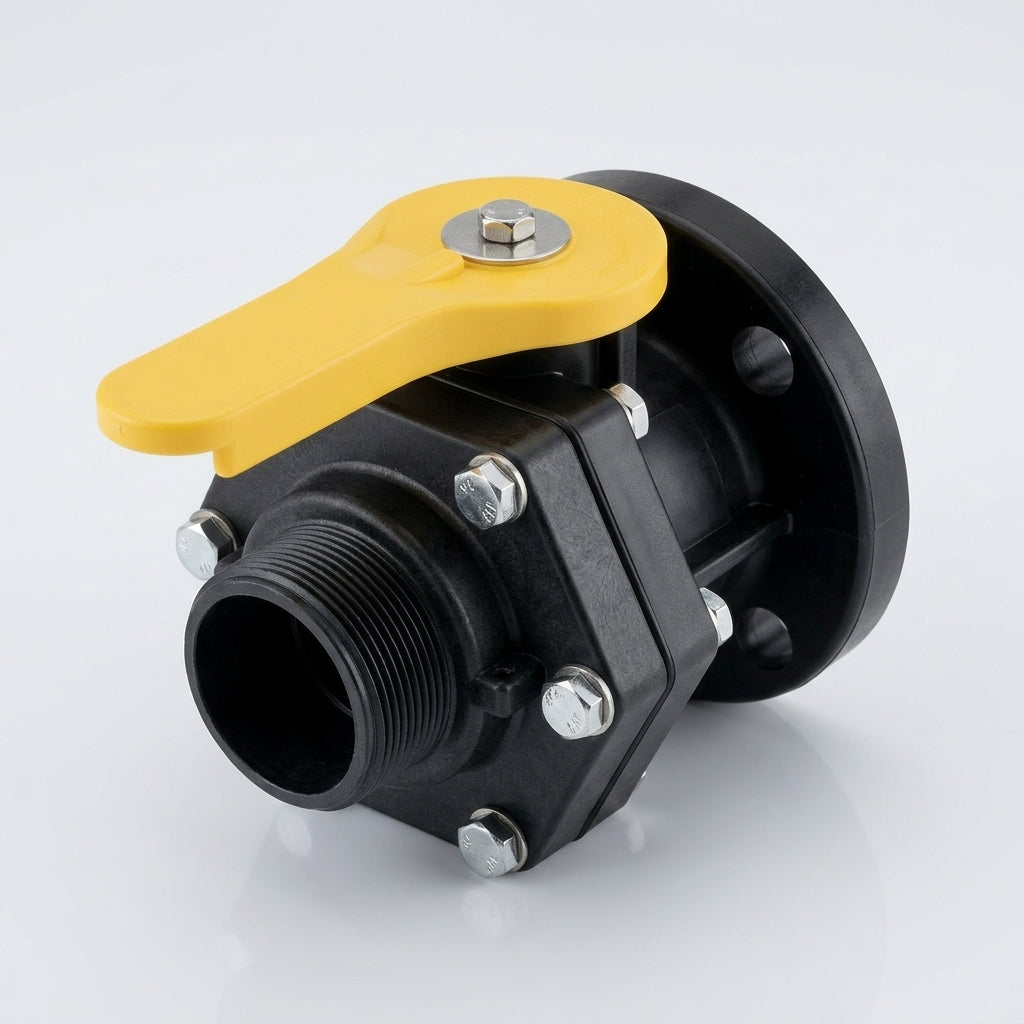

Two-inch ball valve combining ANSI flange outlet with male threaded inlet, maximum rated pressure 7 bar at 21°C.
This polypropylene ball valve features precision-engineered construction with a self-aligning spherical ball mechanism. The diamond-turned ball provides perfect spherical contact against PTFE seals, ensuring reliable sealing performance. Reinforced fibreglass-filled polypropylene body with stainless steel bolting throughout delivers corrosion resistance and durability in demanding environments.
Key Features
- 2" ANSI flange outlet connection
- 2" male threaded inlet
- 2" ball internal diameter
- Self-aligning ball mechanism with minimal operating pressure required
- FKM (Viton-type) seal material for chemical resistance
- Diamond-turned spherical ball for precise sealing contact
- Stainless steel bolts throughout
Specifications
- Maximum pressure rating: 7 bar at 21°C
- Body material: Polypropylene reinforced with fibreglass
- Seal material: FKM (Viton-type)
- Ball internal diameter: 2"
- Inlet: 2" male thread
- Outlet: 2" ANSI flange
Applications

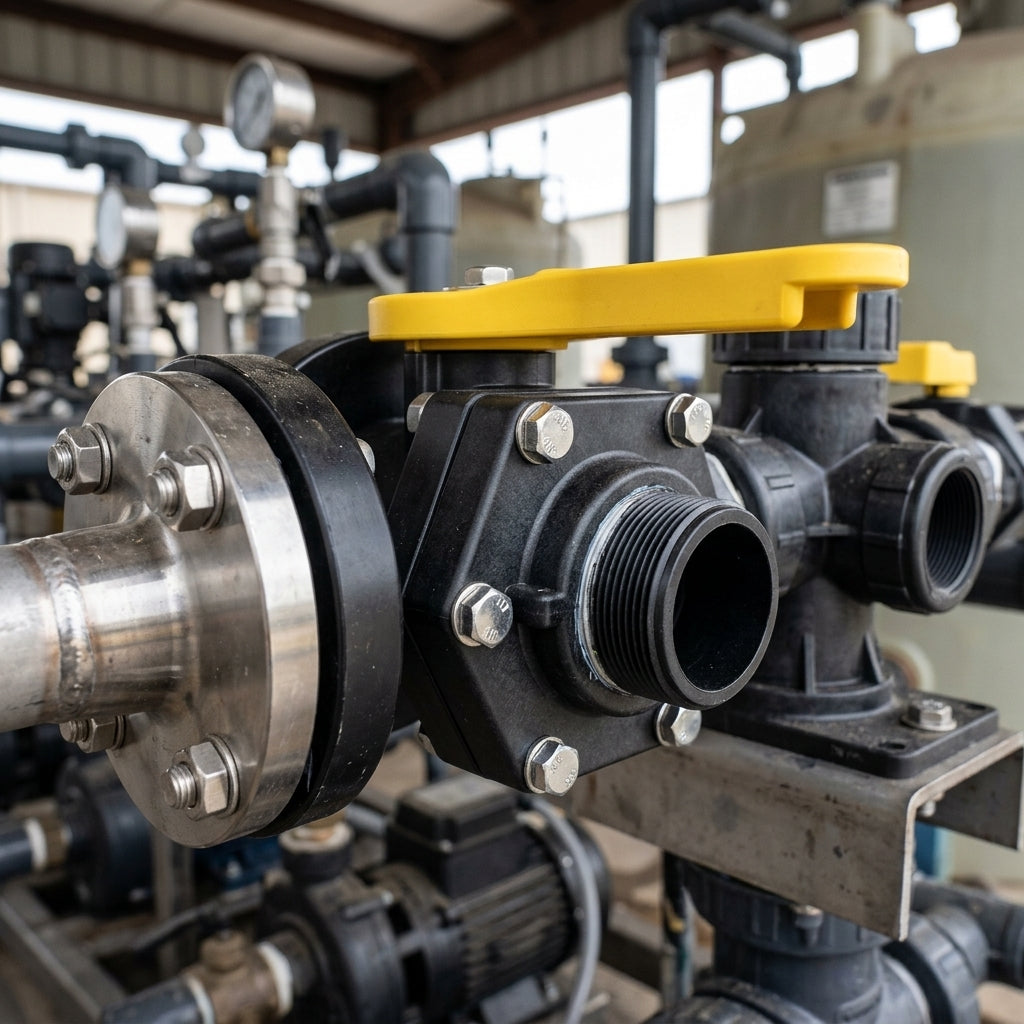

- Industrial fluid transfer and distribution systems
- Process control and shut-off applications
- Chemical and water handling
- Pump discharge and inlet lines
- Tank connection and isolation
