200 x 638 x 638mm raised corner collision protection bar yellow

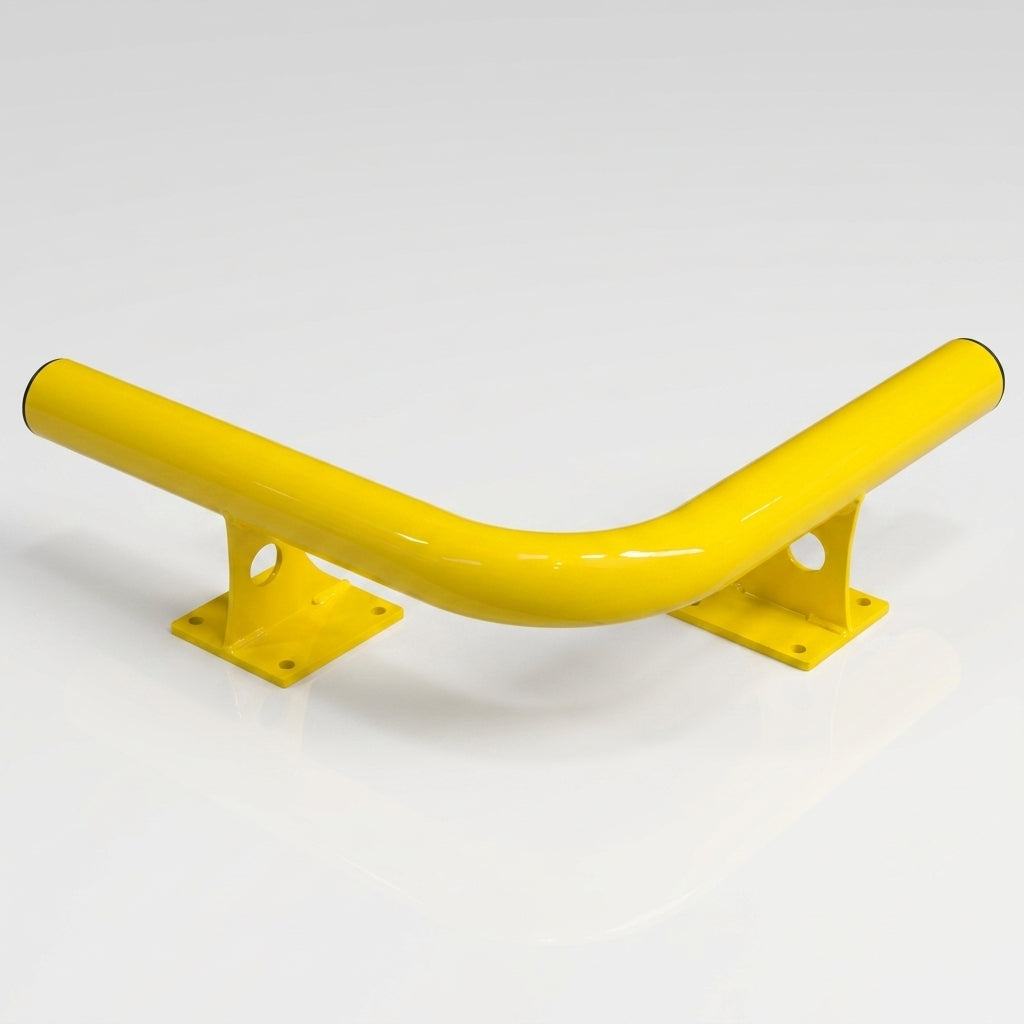

Raised corner collision protection bar manufactured from thick-walled steel tube with powder-coated yellow finish for high-visibility impact resistance.

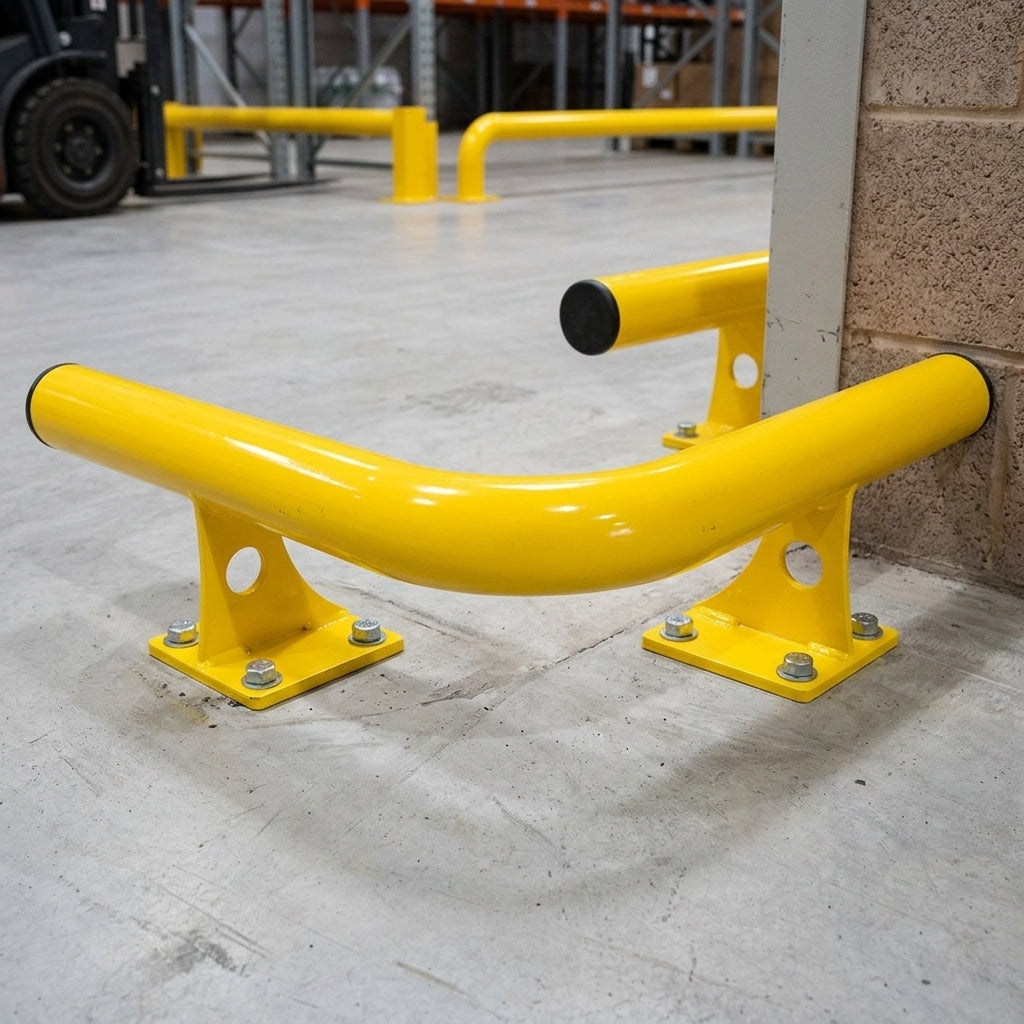

These protection bars are engineered to shield machinery corners and vulnerable assets in busy industrial environments from accidental collision damage caused by works vehicles. The low-profile design maintains pedestrian access to protected areas whilst the bright yellow powder coating provides enhanced visibility across warehouses, distribution depots and manufacturing facilities.

Key Features

• Robust steel tube construction (76mm diameter, 3mm wall thickness) welded to solid uprights and base plates
• Powder-coated yellow finish for durability and visual prominence
• Low-profile design permits easy pedestrian movement around protected zones
• 50mm diameter hole drilled through each upright accommodates cables and airlines up to 48mm diameter
• Black moulded plastic end plugs prevent dirt and dust ingress
• 10mm thick solid steel base plates for secure anchoring

Specifications

• Overall dimensions: 200 x 638 x 638mm
• Tube specification: 76mm diameter x 3mm wall thickness steel
• Base plate thickness: 10mm solid steel
• Conduit hole diameter: 50mm (accommodates up to 48mm diameter cables/hoses)
• Finish: Powder-coated yellow
• Fixings: Optional bolts or through-bolt anchors available
• Indoor use only

Applications

• Factory machinery corner protection from forklift and vehicle collision
• Warehouse racking and equipment safeguarding
• Manufacturing unit asset protection
• Distribution centre vulnerable asset shielding
• Industrial facility corner impact prevention
