Description

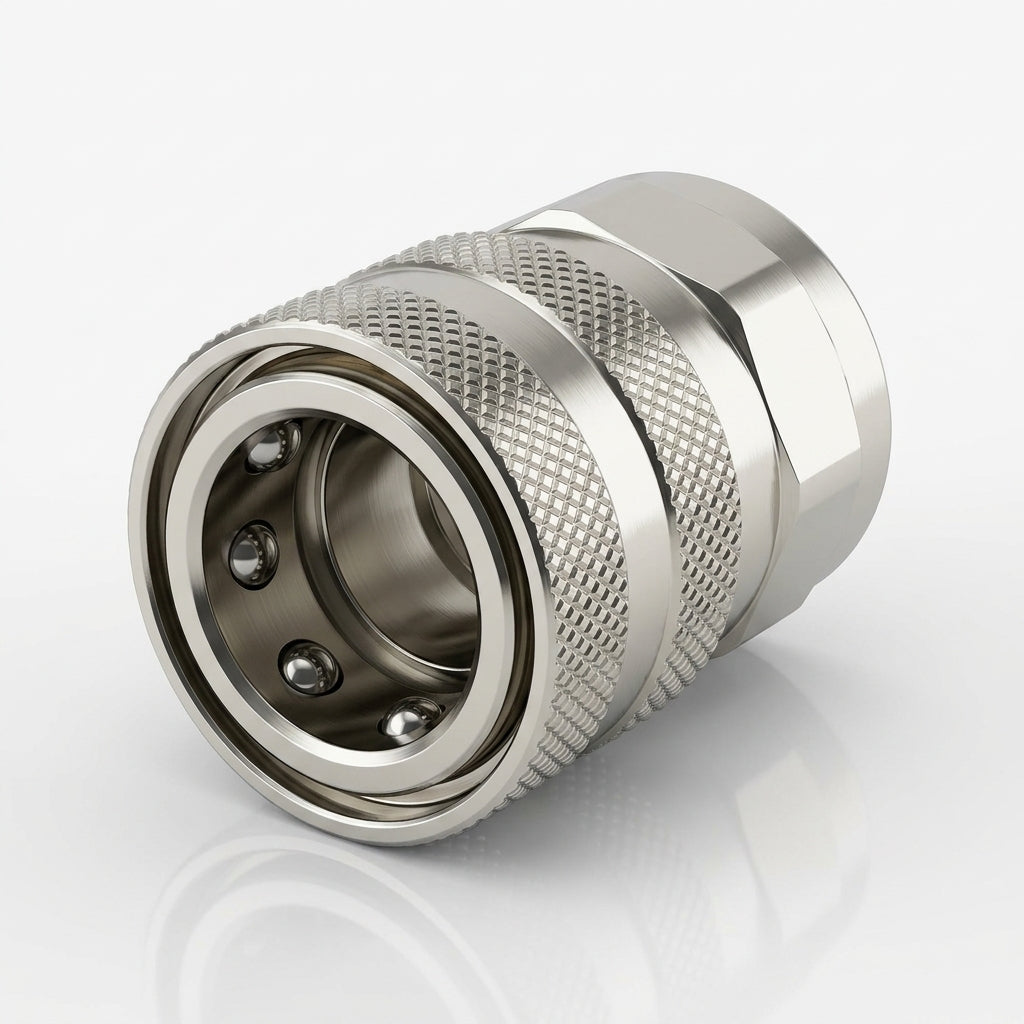

High-pressure quick-release female coupler rated to 220 bar with 3/8" BSP thread and nickel-plated brass construction.
This female quick-release coupling combines robust hydraulic performance with reliable threaded connection for industrial fluid transfer systems. The nickel-plated brass body delivers corrosion resistance and durability in demanding environments, whilst the 220 bar pressure rating and 50 Lpm flow capacity make it suitable for general industrial hydraulic applications.
Key Features
- 220 bar working pressure rating
- 50 Lpm maximum flow capacity
- 3/8" BSP female thread connection
- Nickel-plated brass body for corrosion resistance
- 90 °C operating temperature rating
- Compatible with ARS220 coupler series
Specifications
- Pressure rating: 220 bar
- Flow capacity: 50 Lpm maximum
- Connection type: 3/8" BSP female thread
- Body material: Nickel-plated brass
- Maximum temperature: 90 °C
- Coupling type: Quick-release female socket
Applications

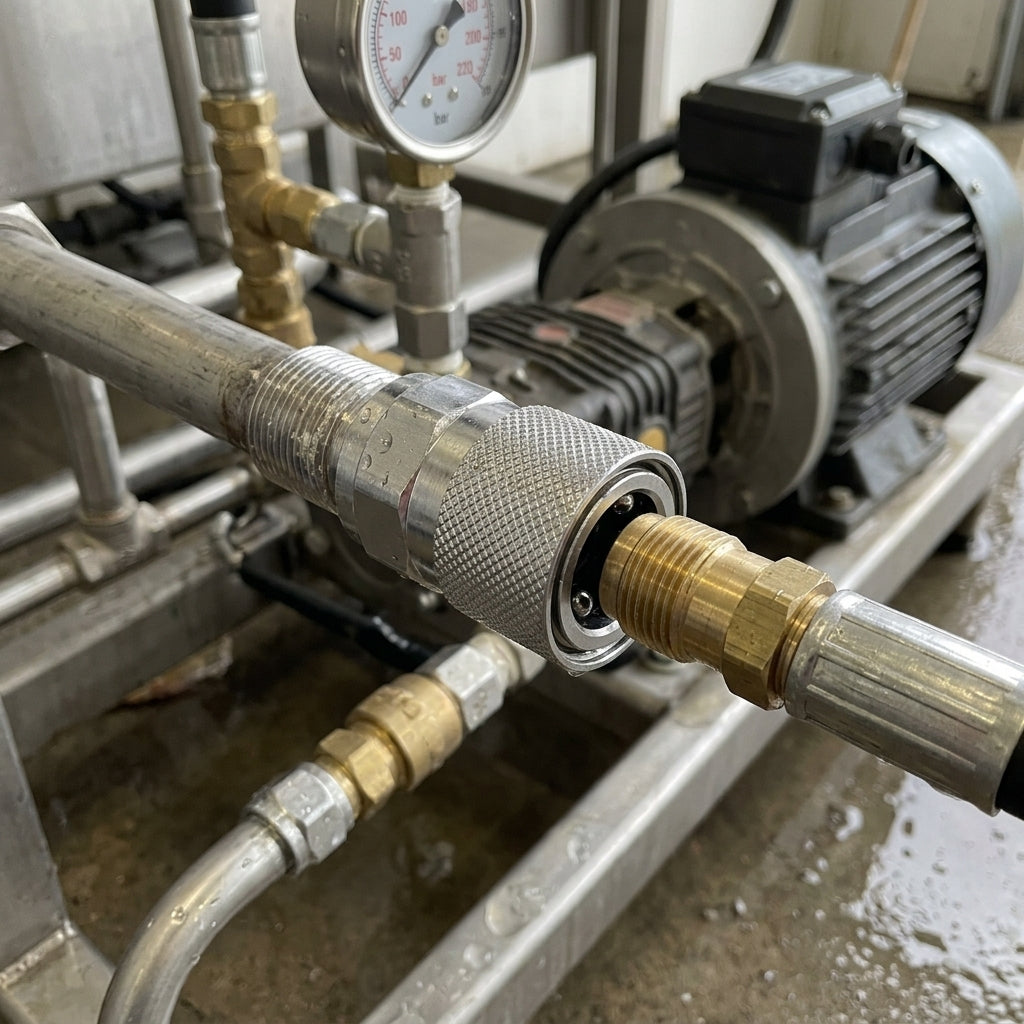

- Hydraulic power units and centralised systems
- Mobile equipment and machinery connections
- Agricultural and forestry equipment
- Industrial fluid transfer systems
- Equipment requiring quick coupling changes
