Description

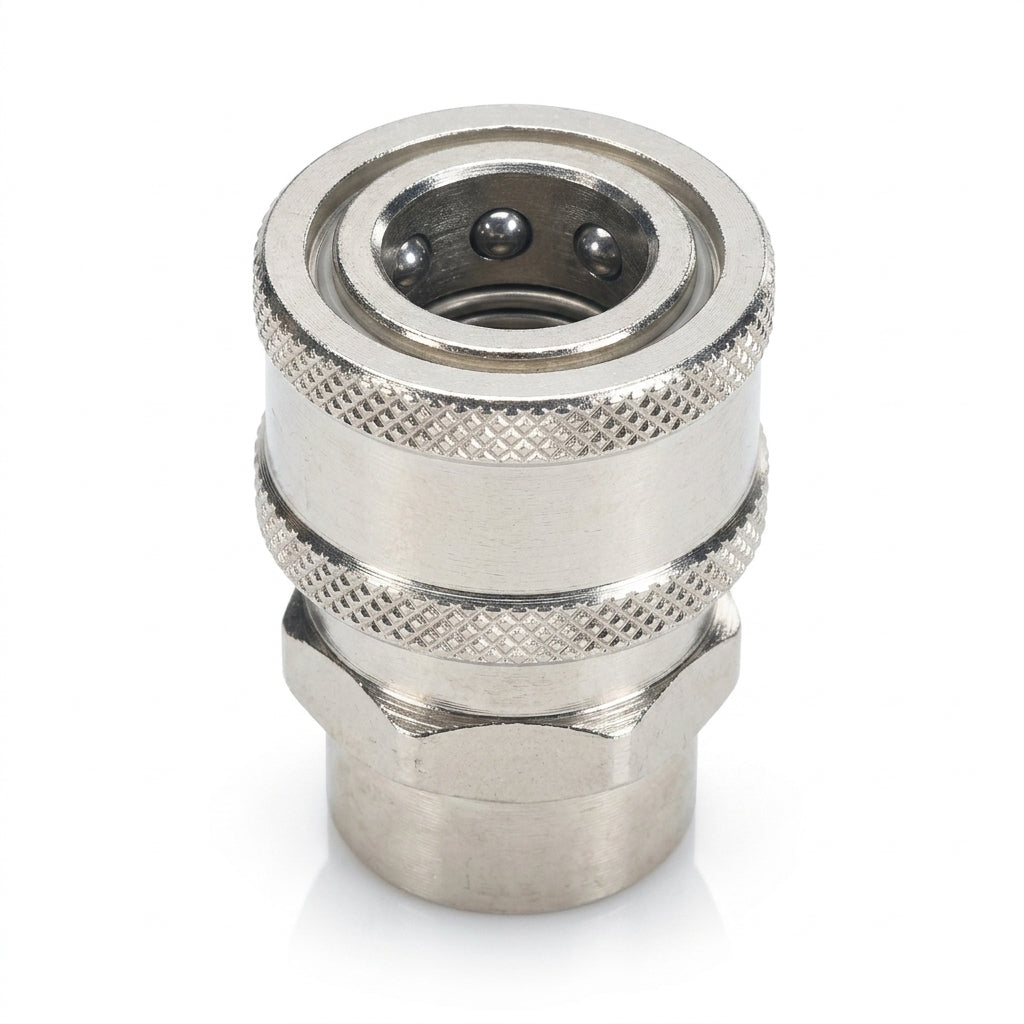

Female quick release coupling with 1/2" BSP thread port, rated to 250 bar working pressure.
This compact QRC adapter combines a quick-disconnect socket with a 1/2" BSP female threaded outlet, enabling rapid coupling and decoupling of pressurised fluid lines. Constructed from nickel-plated brass with NBR seals, it delivers reliable performance across industrial hydraulic and pneumatic systems.
Key Features
- 250 bar working pressure rating
- 1/2" BSP female thread connection
- 30 Lpm maximum flow rate
- Nickel-plated brass body for corrosion resistance
- NBR O-rings for fluid compatibility
- Compatible with ARS250 series adaptors
Specifications
- Pressure Rating: 250 bar
- Thread: 1/2" BSP female
- Maximum Flow: 30 Lpm
- Operating Temperature: 90 °C maximum
- Body Material: Nickel-plated brass
- Seal Material: NBR

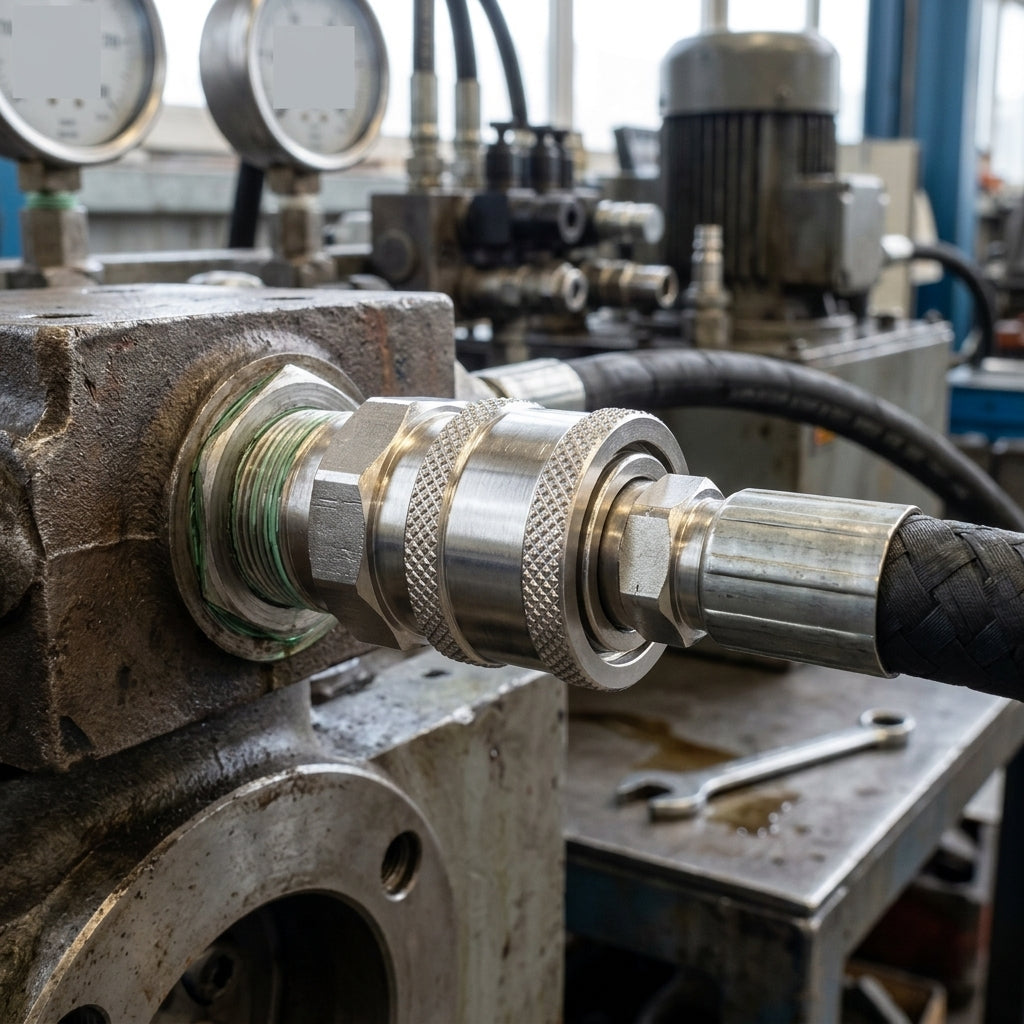

Applications
- Hydraulic power unit connections
- Industrial pressure washer systems
- Mobile fluid transfer equipment
- Plant and machinery hydraulic circuits
- Pneumatic distribution networks
