Description

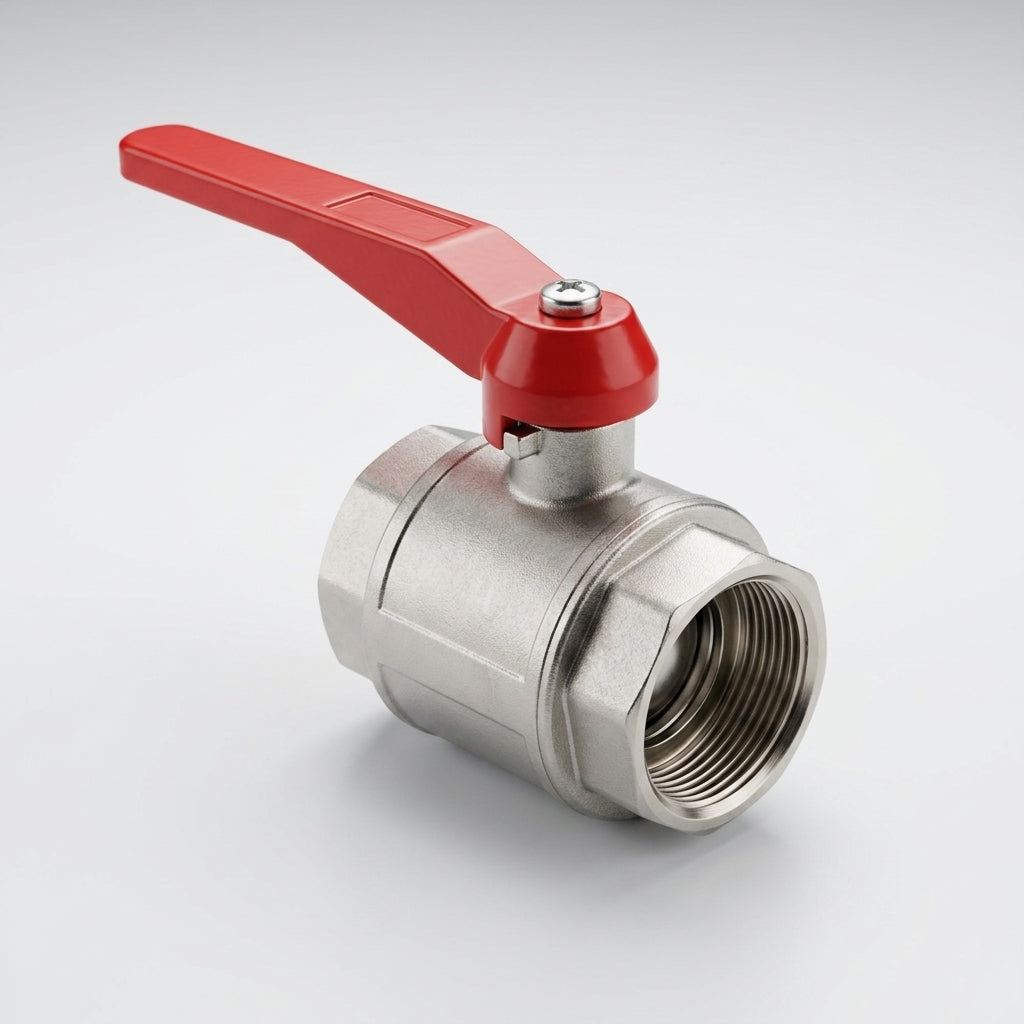

Nickel/chromium plated brass ball valve with 3/4" BSP female connections and manual lever handle.
This compact inline valve features a robust plated brass body with PTFE ball seats for reliable shut-off performance. Designed for general fluid transfer applications, it combines straightforward lever operation with corrosion-resistant plating for extended service life in demanding environments.
Key Features
- 3/4" BSP female thread both inlet and outlet
- Nickel/chromium plated brass construction
- PTFE ball seats for consistent sealing
- Lever handle for quick manual operation
- Compact 58mm body length
- Full port design for unrestricted flow
Specifications
- Connection: 3/4" BSP female × 3/4" BSP female
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Body length: 58mm
- Material: Plated brass
- Seat material: PTFE
Applications
- Industrial fluid transfer and circulation
- Water supply and coolant systems
- Chemical and fuel handling
- Plant and machinery isolation
- Mobile and portable tank connections
