Description

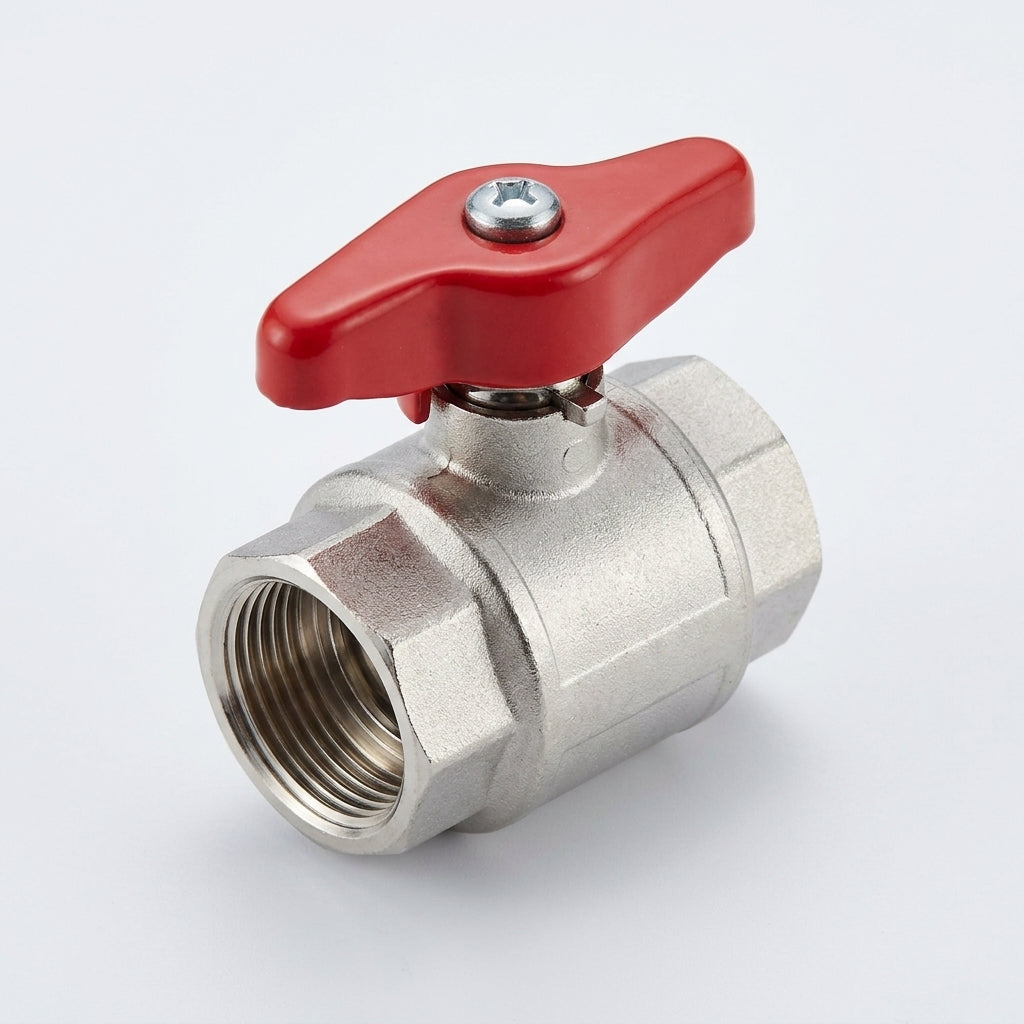

Nickel-plated brass ball valve with 3/4" BSP female connections, rated to 25 bar and 80°C.
Compact and durable ball valve designed for general-purpose fluid control in pressurised systems. Features a T-shaped handle for easy quarter-turn operation and PTFE ball seats for reliable sealing performance. The plated brass construction provides corrosion resistance suitable for potable water, cooling circuits and industrial applications.
Key Features
- 3/4" BSP female thread both ends
- Nickel/chromium plated brass body
- PTFE ball seats for positive shut-off
- T-handle for ergonomic operation
- Compact 58 mm body length
- Quarter-turn ball mechanism
Specifications
- Connection size: 3/4" BSP female
- Maximum working pressure: 25 bar
- Maximum fluid temperature: 80°C
- Body material: Plated brass
- Seat material: PTFE
- Overall length: 58 mm
Applications
- Water supply and distribution networks
- Cooling and heating systems
- General industrial fluid control
- Tank inlet and outlet isolation
- Low-pressure pneumatic circuits
