Description

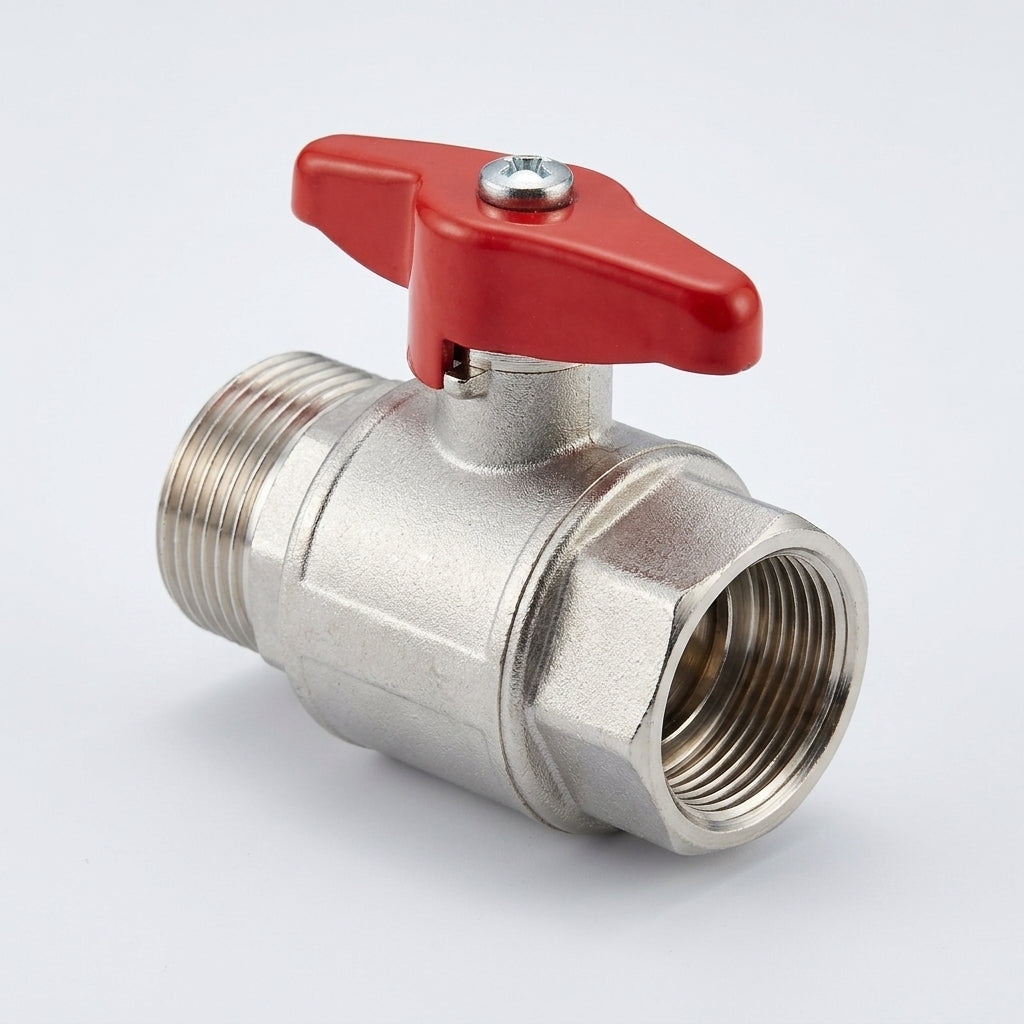

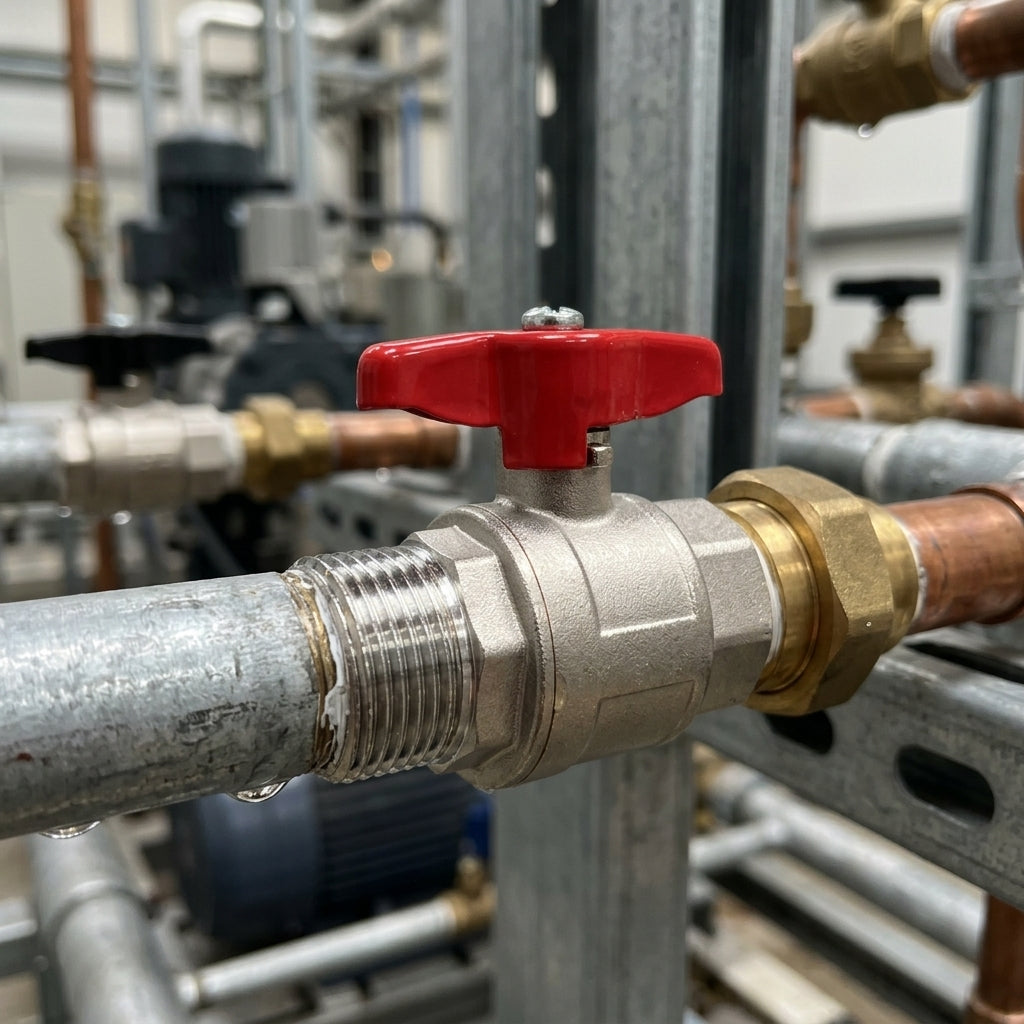

Nickel-plated brass ball valve with 3/4" BSP male and female connections, rated to 25 bar and 80°C.
A robust, compact ball valve designed for general-purpose fluid transfer and plumbing systems. The plated brass body provides corrosion resistance, whilst the PTFE ball seats ensure reliable sealing across repeated cycles. T-handle operation allows quick manual shutoff and flow adjustment.
Key Features
- 3/4" BSP male and female threaded connections
- Nickel/chromium plated brass construction
- PTFE ball seats for extended service life
- T-handle for ergonomic operation
- Compact 69 mm body length
- 25 bar maximum working pressure
Specifications
- Connection size: 3/4" BSP
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Body material: plated brass
- Overall length: 69 mm
- Seat material: PTFE
Applications
- Industrial fluid transfer pipework
- Plumbing and water supply systems
- Compressed air circuit isolation
- Chemical and liquid handling
- General-purpose shutoff control
