Description

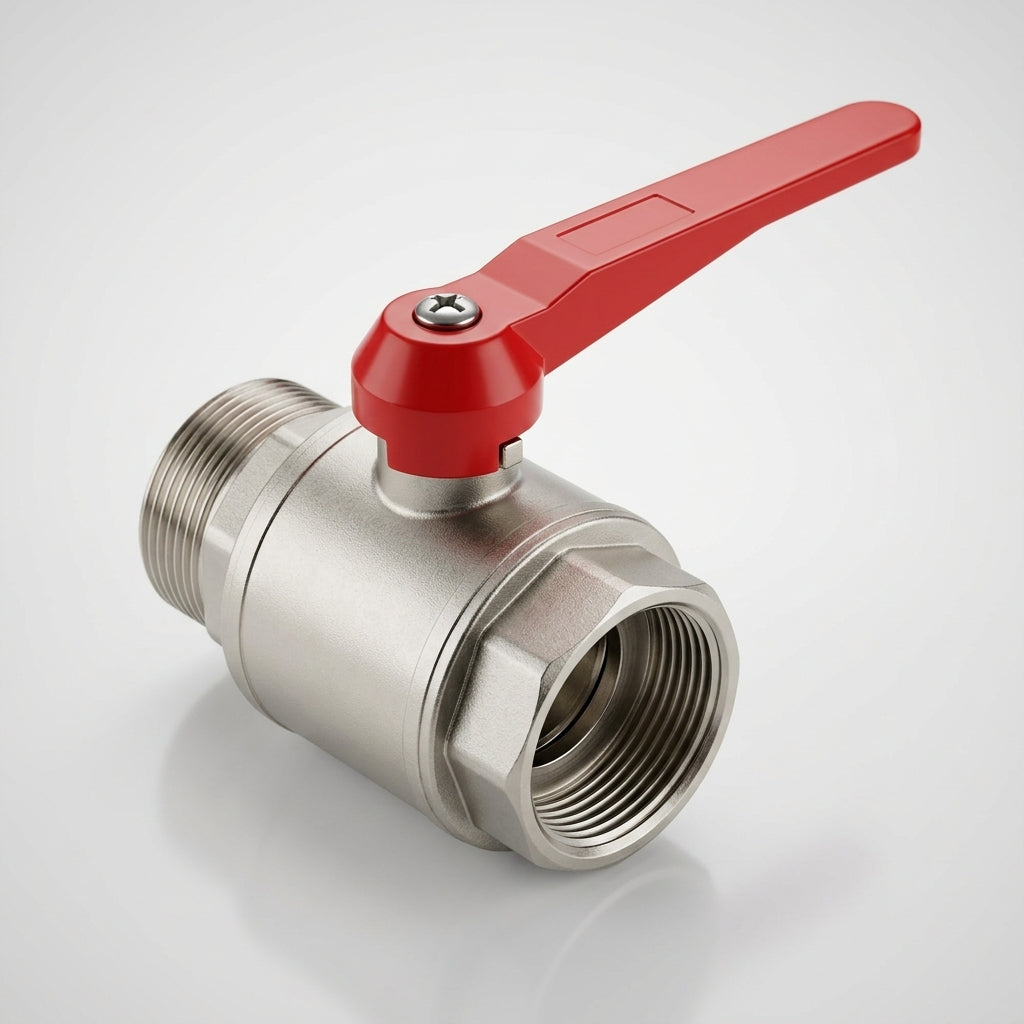

Nickel/chromium plated brass lever ball valve with 3/4" BSP male and female threads.
This compact ball valve combines robust brass construction with a reliable lever handle for quick on/off operation. Rated to 25 bar maximum pressure and 80°C maximum temperature, it features PTFE ball seats for dependable sealing and long service life. The plated finish provides corrosion resistance for demanding environments.
Key Features
- 3/4" BSP male inlet × 3/4" BSP female outlet configuration
- Nickel/chromium plated brass body
- PTFE ball seats for reliable sealing
- Lever handle for manual operation
- Compact 69mm body length
- 25 bar working pressure rating
Specifications
- Thread size: 3/4" BSP (M × F)
- Maximum pressure: 25 bar
- Maximum temperature: 80°C
- Material: Plated brass
- Ball seat material: PTFE
- Body length: 69mm
- Handle type: Lever
Applications
- Industrial water and compressed air systems
- Hydraulic and pneumatic circuit isolation
- General plumbing and fluid transfer
- Laboratory and test equipment
- Process control and shut-off duties
