3/8" BSP Brass Swivel Coupling – 250 Bar Rated, 40 Lpm

Brass swivel coupling with 3/8" BSP male and female connections, rated to 250 bar working pressure.

This rotating fitting allows flexible hose and pipe connections without twisting or kinking, commonly used in hydraulic systems, pressure washers and fluid transfer equipment. The brass body with FKM seals ensures durability across a wide temperature range and maintains reliable sealing under sustained pressure.

Key Features

• 250 bar maximum working pressure
• 40 litre per minute flow capacity
• Brass body with FKM (viton) seals
• 3/8" BSP male inlet and female outlet ports
• 90°C normal working temperature; 160°C rated limit
• 360° swivel action to prevent hose twist

Specifications

• Connection size: 3/8" BSP (male × female)
• Body material: Brass
• Seal material: FKM (viton)
• Rated pressure: 250 bar
• Maximum flow: 40 lpm
• Operating temperature range: –10°C to 90°C
• Temperature rating: 160°C

Applications

• Hydraulic hose assemblies and quick-connect systems

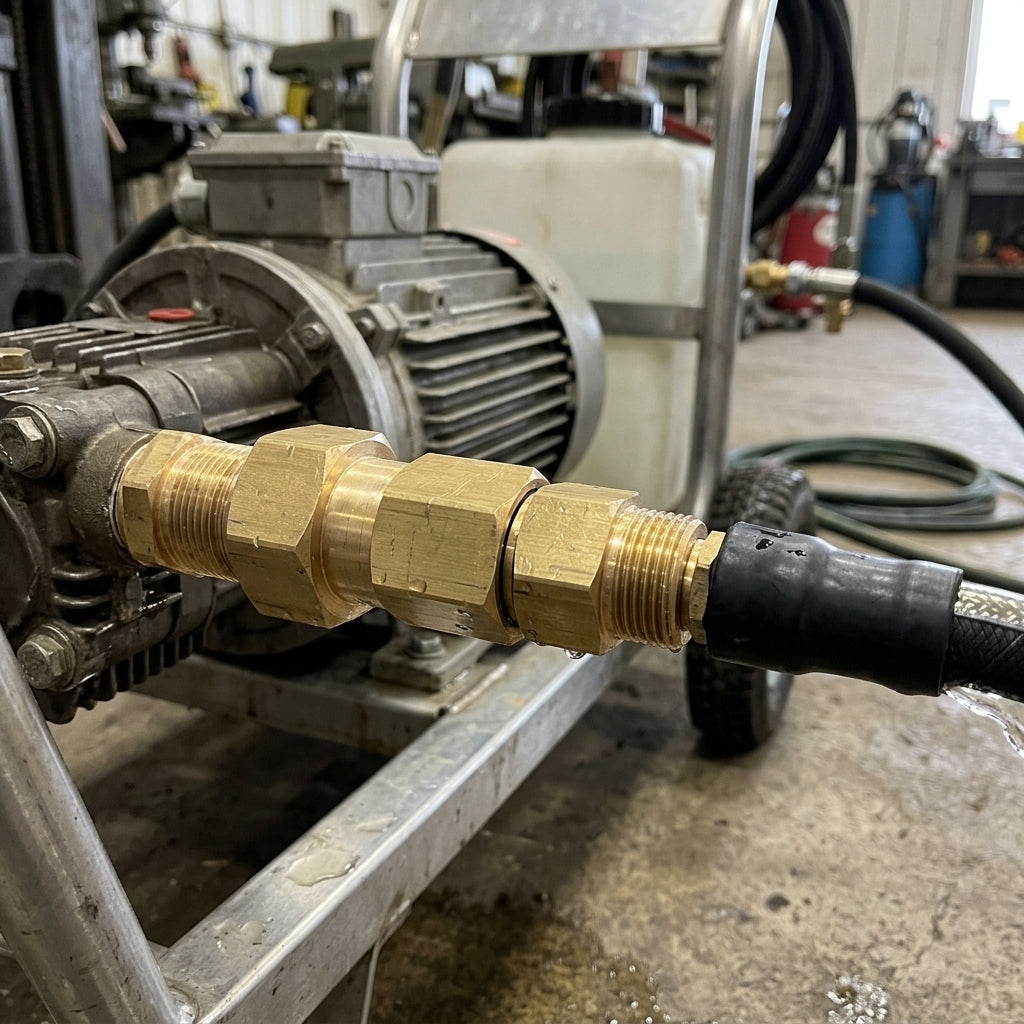

• Pressure washer gun and hose connections
• Fluid transfer and circulation equipment
• Industrial pumping and machinery
• Rotating joint applications in fixed and mobile equipment
