Description
High-pressure swivel connector with triple bearing system for reliable fluid transfer and rotation.

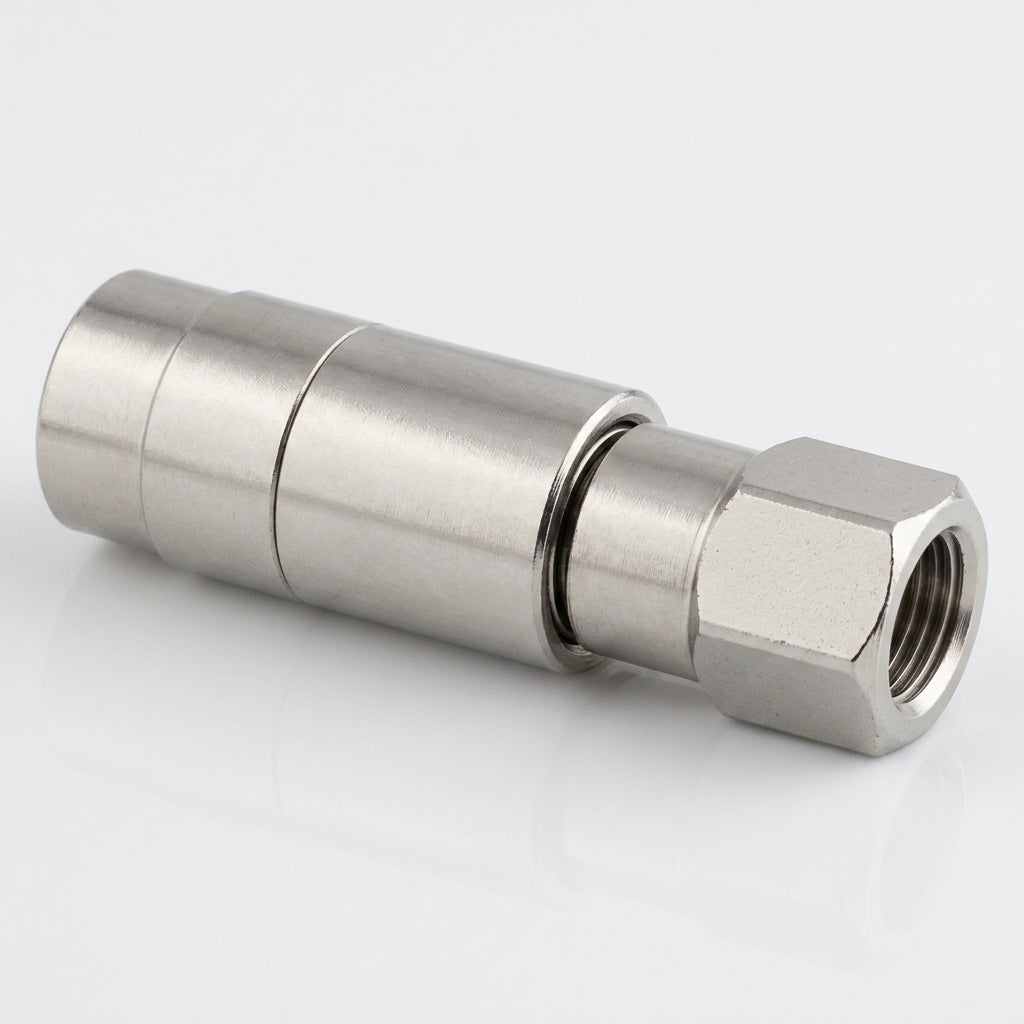

This 3/8" BSP female-to-female swivel connector features a robust triple bearing design and nickel-plated brass body, engineered for demanding industrial applications. The stainless steel bearings deliver smooth, continuous rotation whilst maintaining a 275 bar pressure rating, making it suitable for water, oil, air and compatible fluids across a wide pH range.
Key Features
- Triple bearing system for smooth, reliable rotation
- Nickel-plated brass body with stainless steel bearings
- 275 bar maximum rated pressure
- 30 rpm maximum at elevated temperature (120°C)
- 1000 rpm maximum at ambient temperature (30°C)
- Compatible with water, oil, air and fluids (pH 3–12)
Specifications
- Connection: 3/8" BSP female inlet and outlet
- Pressure rating: 275 bar
- Maximum speed: 1000 rpm @ 30°C; 30 rpm @ 120°C
- Body material: Nickel-plated brass
- Bearing material: Stainless steel
- Bearing configuration: Triple bearing
Applications
- High-pressure cleaning and wash-down equipment
- Industrial fluid transfer systems
- Rotating hose and nozzle assemblies
- Air and water distribution networks
- Oil circulation and cooling systems
