Description

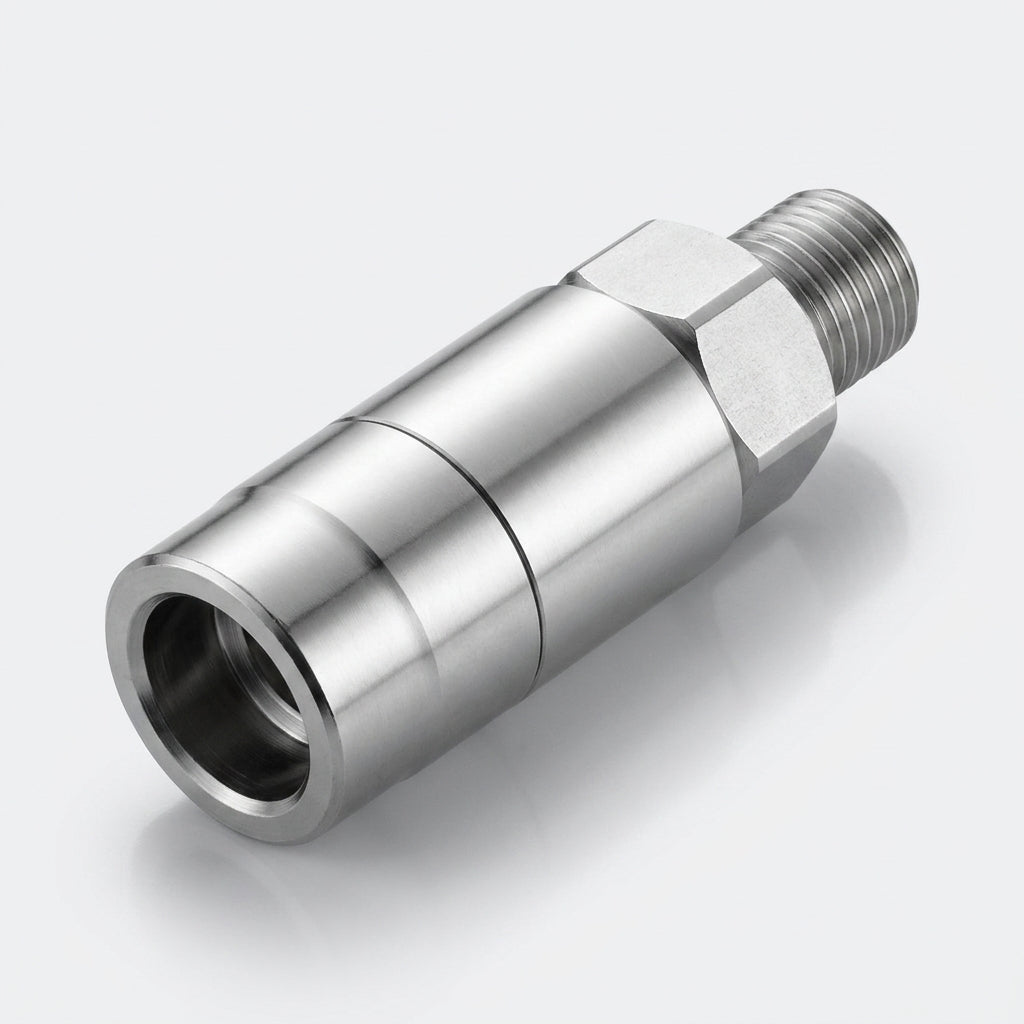

Directional flow swivel adapter with triple bearing assembly and nickel-plated brass construction for high-pressure industrial applications.
This 275 bar rated swivel connects 3/8" BSP female inlet to 1/4" BSP male outlet. The triple bearing system enables continuous rotation under pressure, with stainless steel bearing elements resisting corrosion. Nickel-plated brass body provides durability across water, oil and air services within a pH range of 3–12.
Key Features
- Triple bearing rotary joint system
- 275 bar maximum working pressure
- Nickel-plated brass body with stainless steel bearings
- Compatible with water, oil, air and neutral fluids
- 1000 rpm maximum at 30°C; 30 rpm at 120°C
- pH range 3–12
Specifications
- Inlet: 3/8" BSP female
- Outlet: 1/4" BSP male
- Rated pressure: 275 bar
- Material: Nickel-plated brass body
- Bearing type: Stainless steel, triple arrangement
- Temperature range: 30°C to 120°C operational
Applications
- High-pressure water delivery and washdown equipment
- Oil circulation and transfer systems
- Pneumatic tool connections
- Industrial cleaning and spray applications
- Mobile equipment and machinery fluid lines
