Description
Compact nickel-plated brass ball valve with dual female BSP threads for reliable fluid control.
A robust inline ball valve designed for straightforward installation in compressed air, water and general fluid transfer systems. The plated brass construction provides corrosion resistance, while the PTFE ball seats ensure smooth operation and long service life. The T-handle design offers intuitive on/off control in confined spaces.
Key Features
- Nickel and chromium plated brass body
- PTFE ball seats for smooth operation
- 3/8" BSP female connections on both ends
- T-handle for ergonomic control
- Compact 48 mm length
- 32 bar maximum working pressure
Specifications
- Thread type: 3/8" BSP female (both ends)
- Maximum pressure: 32 bar
- Maximum temperature: 80°C
- Body material: Plated brass (nickel/chromium)
- Ball seat material: PTFE
- Overall length: 48 mm

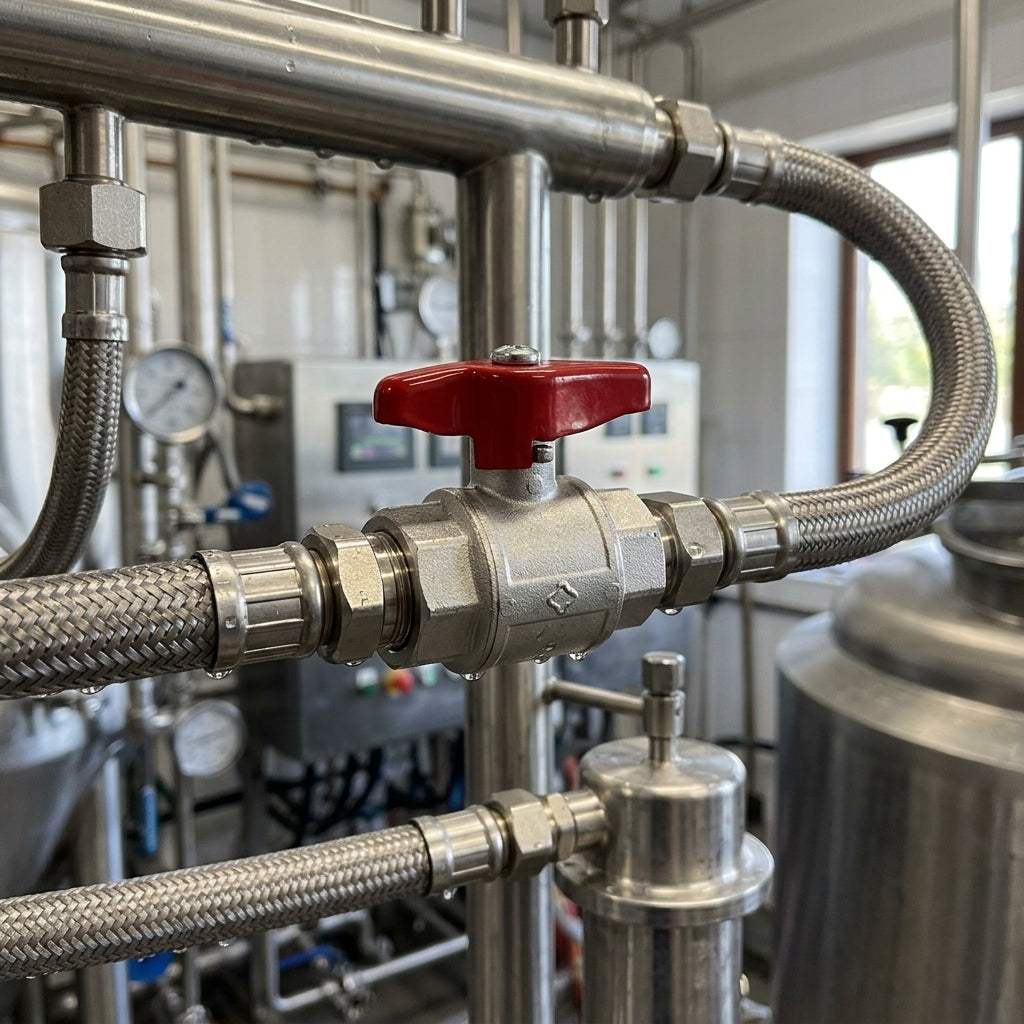

Applications
- Compressed air line isolation and control
- Water supply systems and distribution
- Pneumatic equipment connections
- Fluid transfer and tank outlets
- General industrial shut-off requirements
