Description

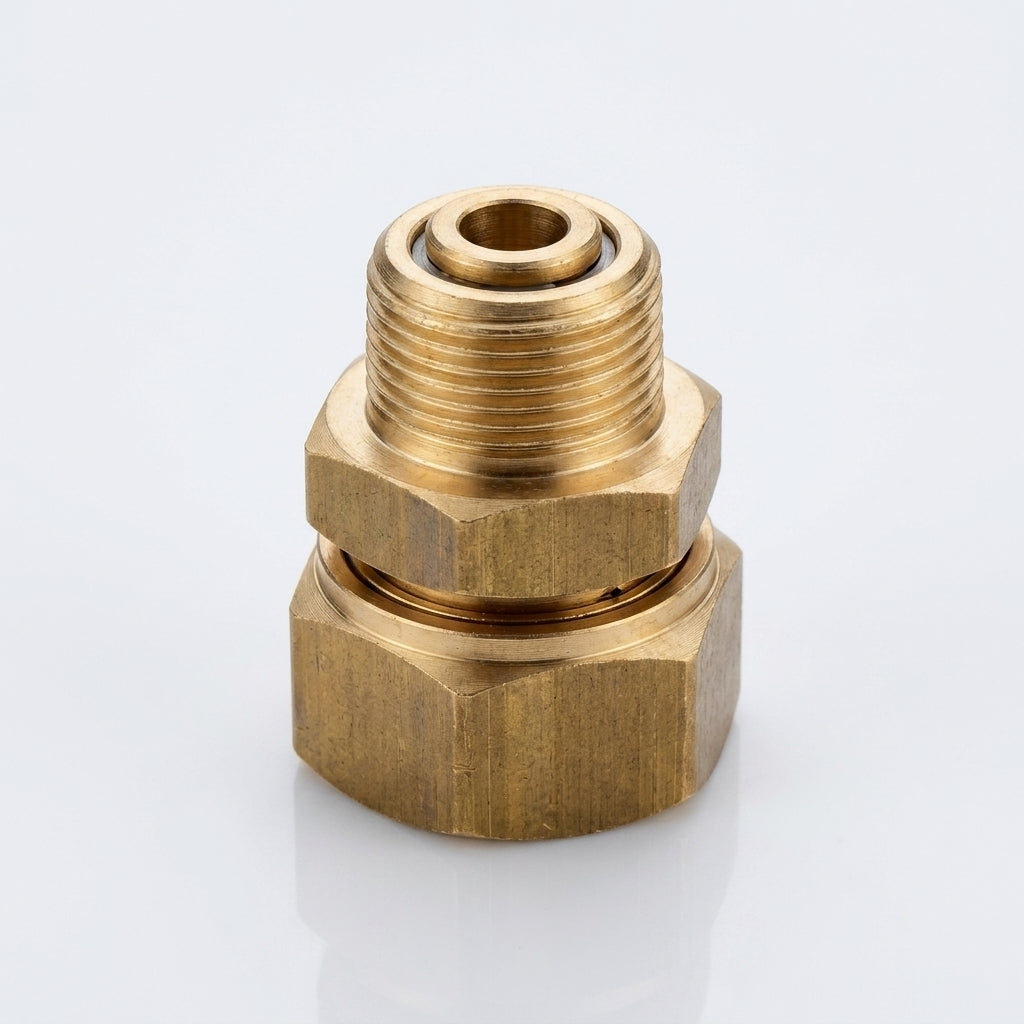

Brass swivel connector combining 3/8" BSP male inlet with 1/4" BSP female outlet, rated 220 bar for reliable high-pressure fluid transfer.

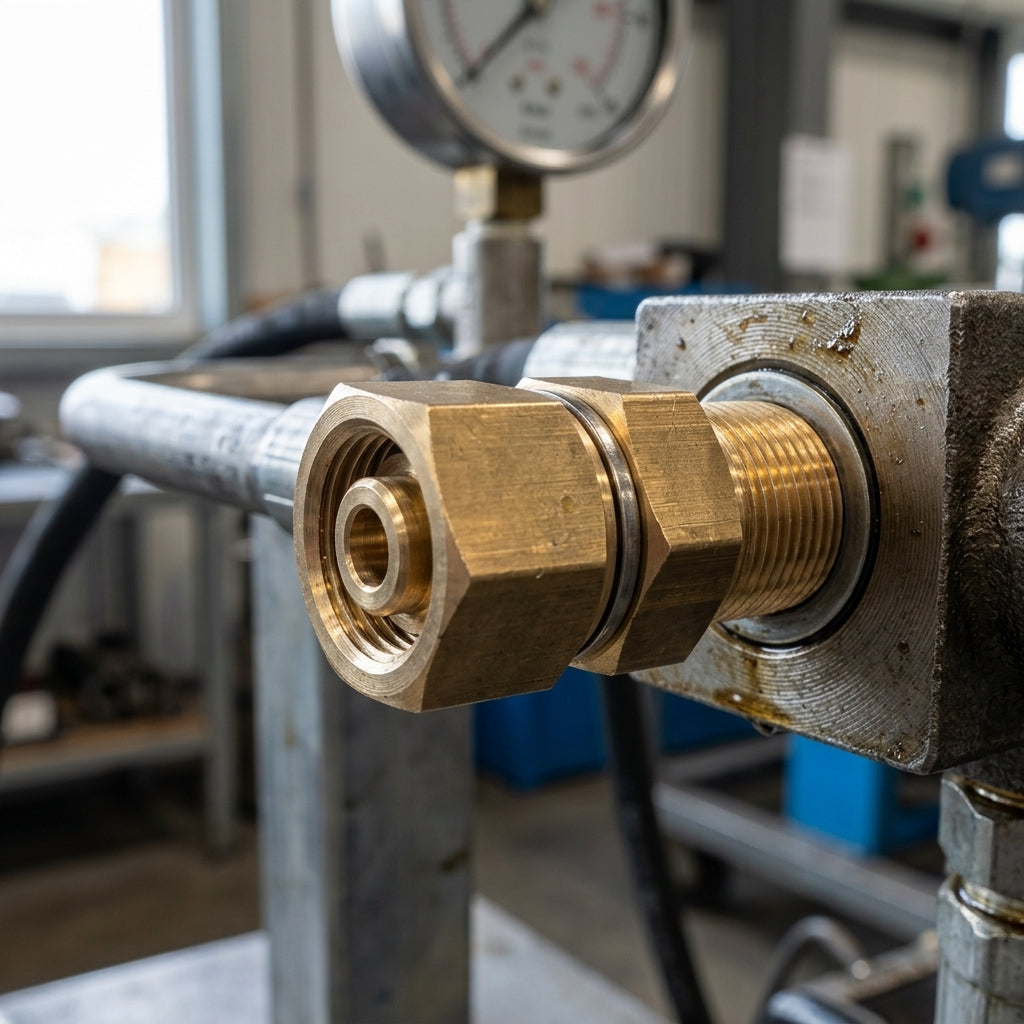

This compact swivel fitting allows rotational connection without twisting supply hoses, reducing wear and extending service life. The tapered BSP threads ensure leak-free sealing in demanding hydraulic and fluid handling systems, whilst the 360° swivel action accommodates fixed and mobile equipment layouts.
Key Features
- 3/8" BSP male inlet, 1/4" BSP female outlet
- 220 bar maximum working pressure rating
- 30 litres per minute flow capacity
- Brass body with NBR (Buna) seals for durability
- Full 360° swivel rotation
- 60°C continuous operating temperature, 90°C rated
Specifications
- Inlet: 3/8" BSP male
- Outlet: 1/4" BSP female
- Pressure rating: 220 bar
- Flow rate: 30 Lpm maximum
- Body material: Brass
- Seal material: NBR (Buna-N)
- Operating temperature: 60°C continuous, 90°C rated
Applications
- Hydraulic power systems and machinery
- High-pressure fluid transfer and control lines
- Mobile and stationary equipment connections
- Pressure washer and pump installations
- Industrial fluid handling systems
