Description

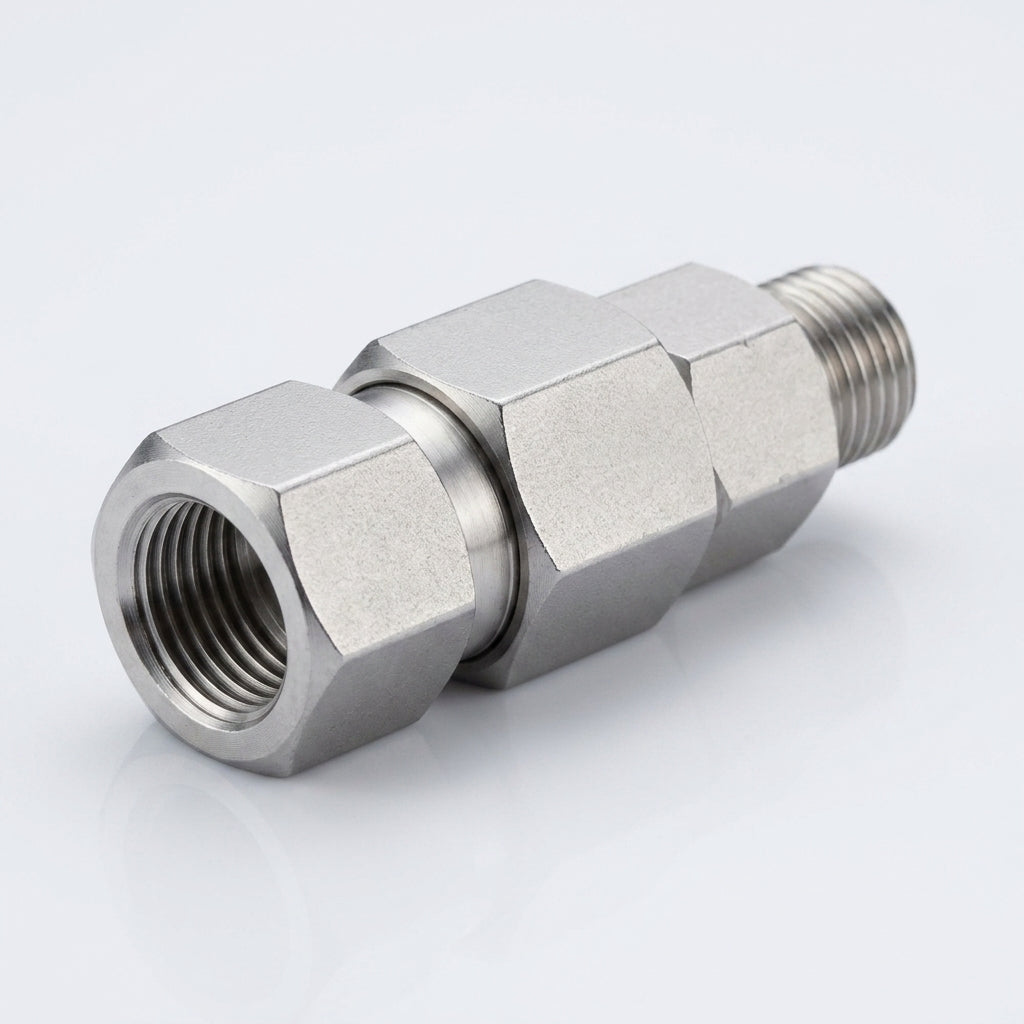

Stainless steel swivel connector with 3/8" BSP male inlet and female outlet, designed for 350 bar high-pressure systems.
This compact swivel fitting enables 360° rotation to reduce hose strain and fatigue in pressurised fluid applications. The stainless steel body with FKM seals delivers corrosion resistance and reliability in demanding industrial and mobile equipment environments.
Key Features
- 350 bar maximum working pressure
- 40 lpm maximum flow capacity
- 90°C continuous operating temperature; 160°C rated tolerance
- 30 rpm maximum rotational speed
- FKM viton seals for chemical compatibility
- Full stainless steel construction
Specifications
- Inlet: 3/8" BSP male taper
- Outlet: 3/8" BSP female
- Pressure rating: 350 bar
- Flow: 40 lpm maximum
- Working temperature: 90°C; rated to 160°C
- Rotational speed: 30 rpm maximum
- Seal material: FKM (viton)
Applications
- High-pressure hydraulic equipment and mobile machinery
- Pump and motor connections requiring rotational flexibility
- Fluid transfer lines in corrosive or washdown environments
- Industrial pressure washers and agricultural spraying systems
- Emergency response and fire-suppression equipment
