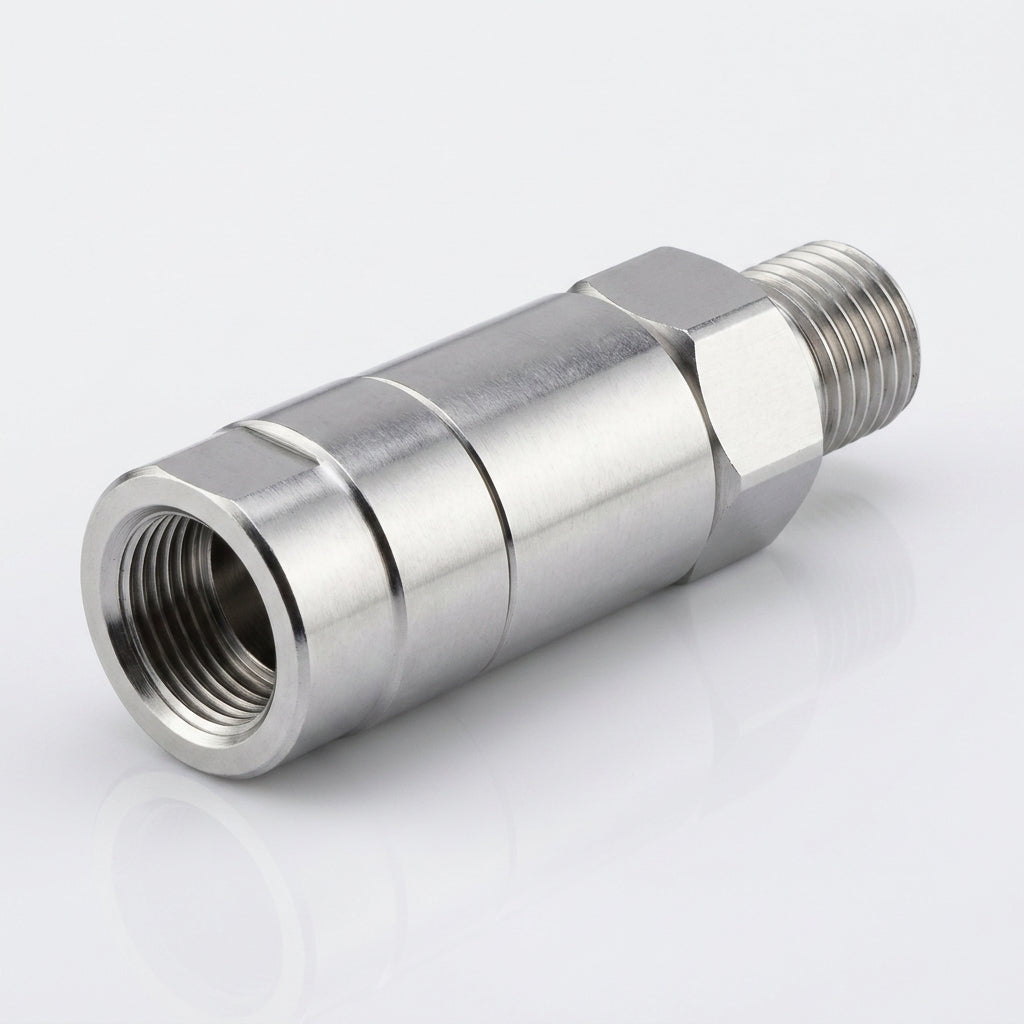

3/8" BSP Swivel Connector – Triple Bearing, 275 Bar, Nickel Brass

Three-bearing swivel coupling with 3/8" BSP female inlet and male outlet, rated to 275 bar with nickel-plated brass construction.

This swivel connector combines robust engineering with reliable rotational performance across demanding industrial applications. The triple bearing system uses stainless steel components to ensure smooth operation and extended service life in mixed-media environments.

Key Features

• Triple stainless steel bearing system for smooth 360° rotation
• Nickel-plated brass body for corrosion resistance
• 275 bar working pressure rating
• Rated for water, oil, air and pH 3–12 compatible fluids
• 30 rpm maximum at 120°C; 1000 rpm maximum at 30°C
• 3/8" BSP female inlet × 3/8" BSP male outlet

Specifications

• Connection: 3/8" BSP female to 3/8" BSP male
• Pressure rating: 275 bar
• Body material: Nickel-plated brass
• Bearing material: Stainless steel
• Bearing configuration: Triple system
• Temperature range: −5°C to +120°C
• Compatible fluids: Water, oil, air, pH 3–12

Applications

• High-pressure cleaning and wash-down systems

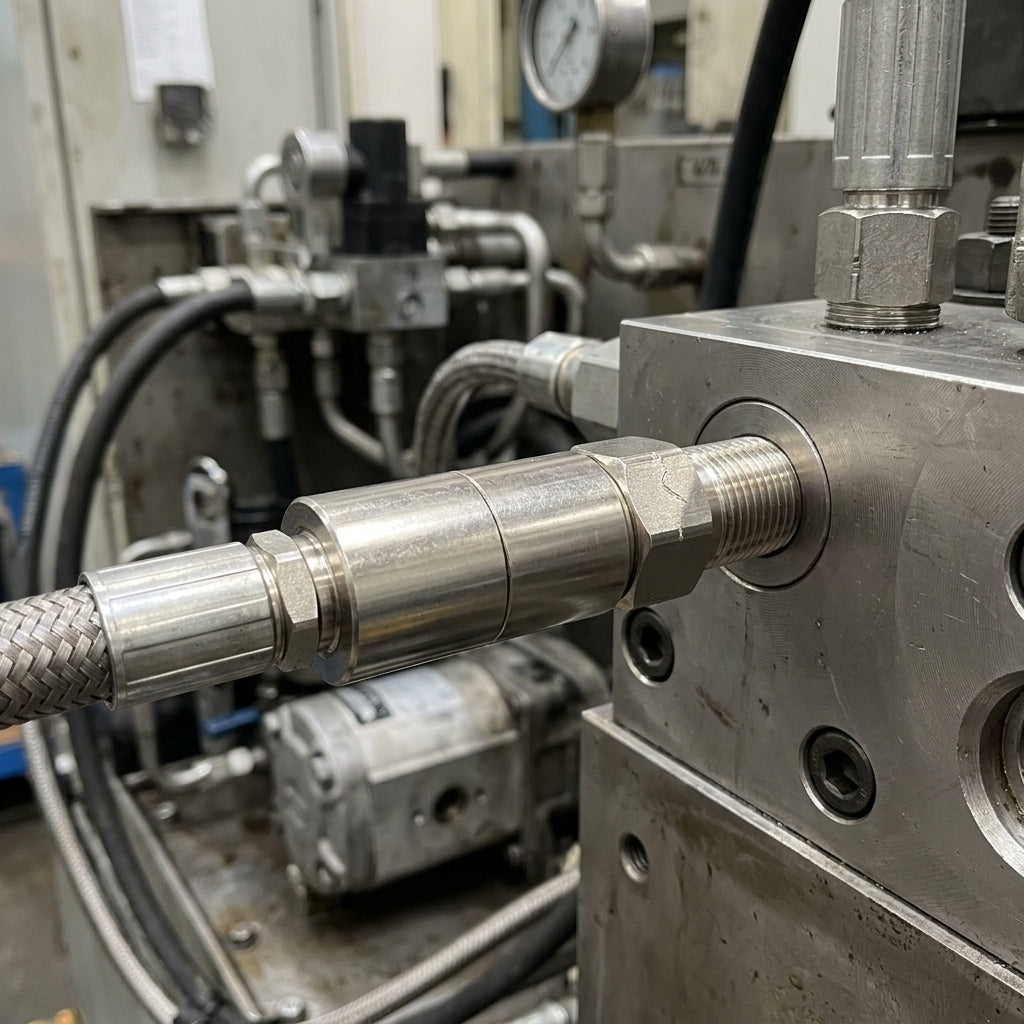

• Industrial hydraulic hose connections
• Pneumatic tool and equipment supply lines
• Oil circulation and transfer systems
• General pressure-wash and mobile equipment installations
