3200–6500mm adjustable aluminium raising boom barrier

Adjustable aluminium raising boom barrier for traffic management and access control.

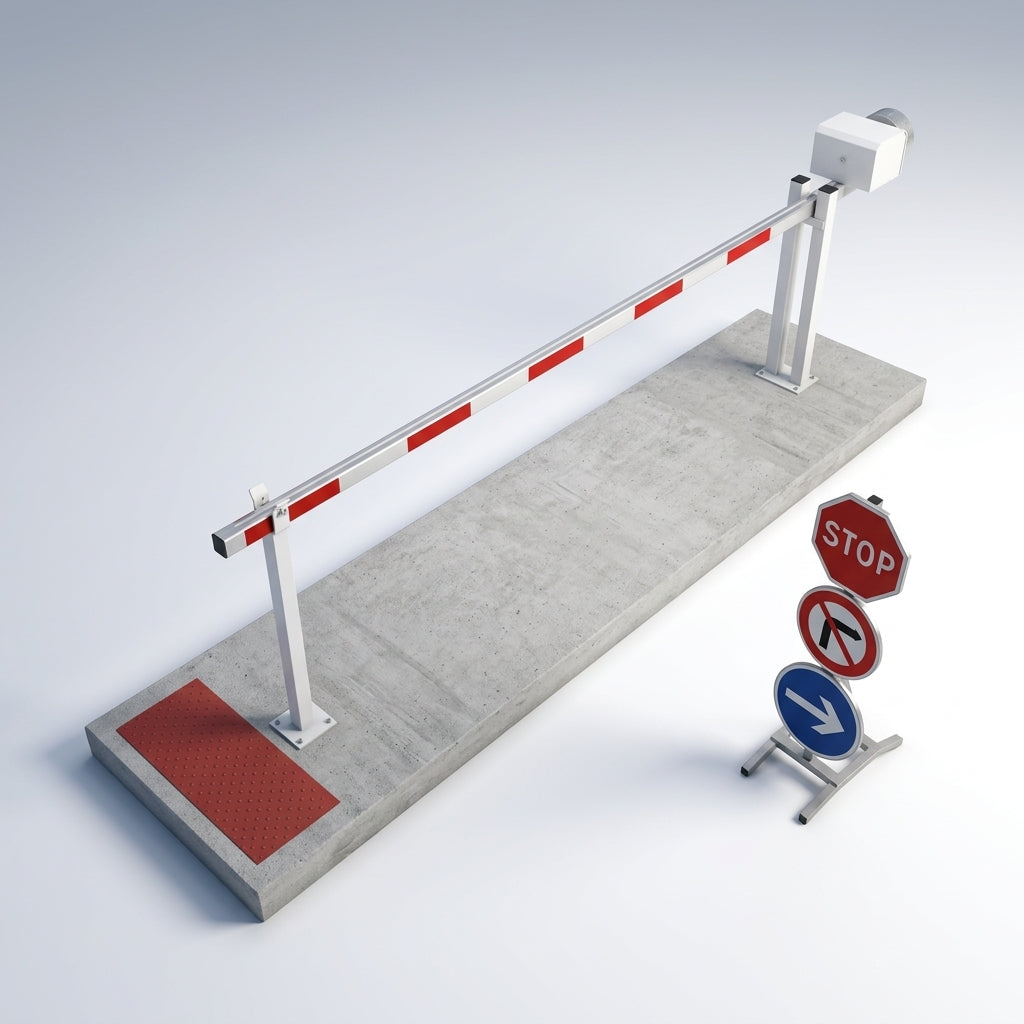

This traffic barrier features an 80×80mm aluminium boom extended by a 70×70mm aluminium shaft, adjustable from 3200 to 6500mm to suit varying road widths. The boom rotates smoothly on a stainless steel shaft with bearing race and incorporates a hidden counterweight for effortless operation. It locks securely in both upright and down positions using supplied pins and padlocks.

Key Features

• 80×80mm aluminium boom with 70×70mm extension shaft
• Adjustable length 3200–6500mm (rotation axis to end)
• Post spacing 3050–6400mm
• Stainless steel shaft with bearing race rotation
• Hidden counterweight mechanism
• Lockable upright and down positions with pin and padlock
• White lacquered finish with red reflective strips
• Supplied with steel catching post and baseplate installation

Specifications

• Boom section: 80×80mm aluminium
• Extension shaft: 70×70mm aluminium
• Adjustable span: 3050–6400mm between posts
• Barrier reach: 3200–6500mm from rotation axis
• Rotation bearing: stainless steel shaft on race
• Finish: white lacquer with red reflective strips
• Locking: pin and padlock (supplied)

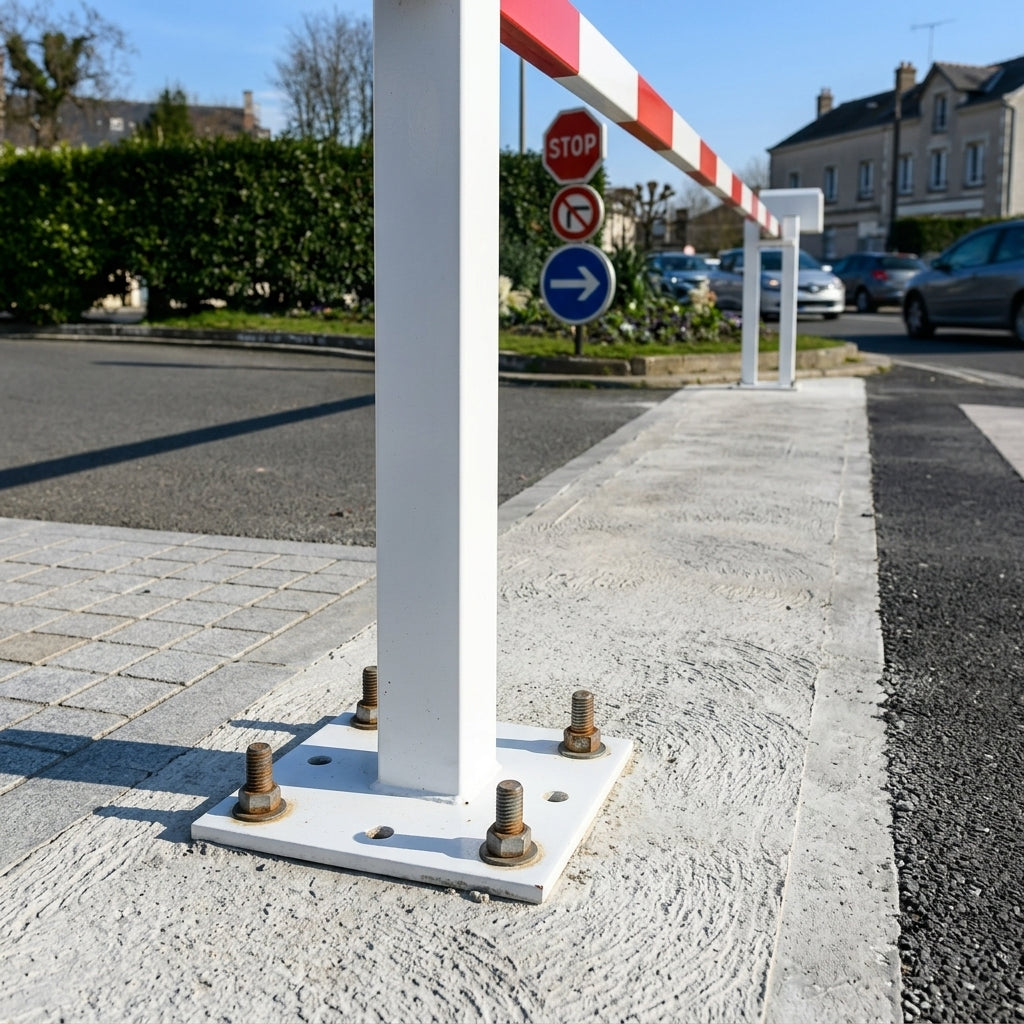

• Foundation: baseplate with installation kit

Applications

• Car park and vehicle access control
• Restricted zone traffic management
• Temporary or permanent road barriers
• Private drive or facility entrance protection
• Portable traffic calming in busy areas
