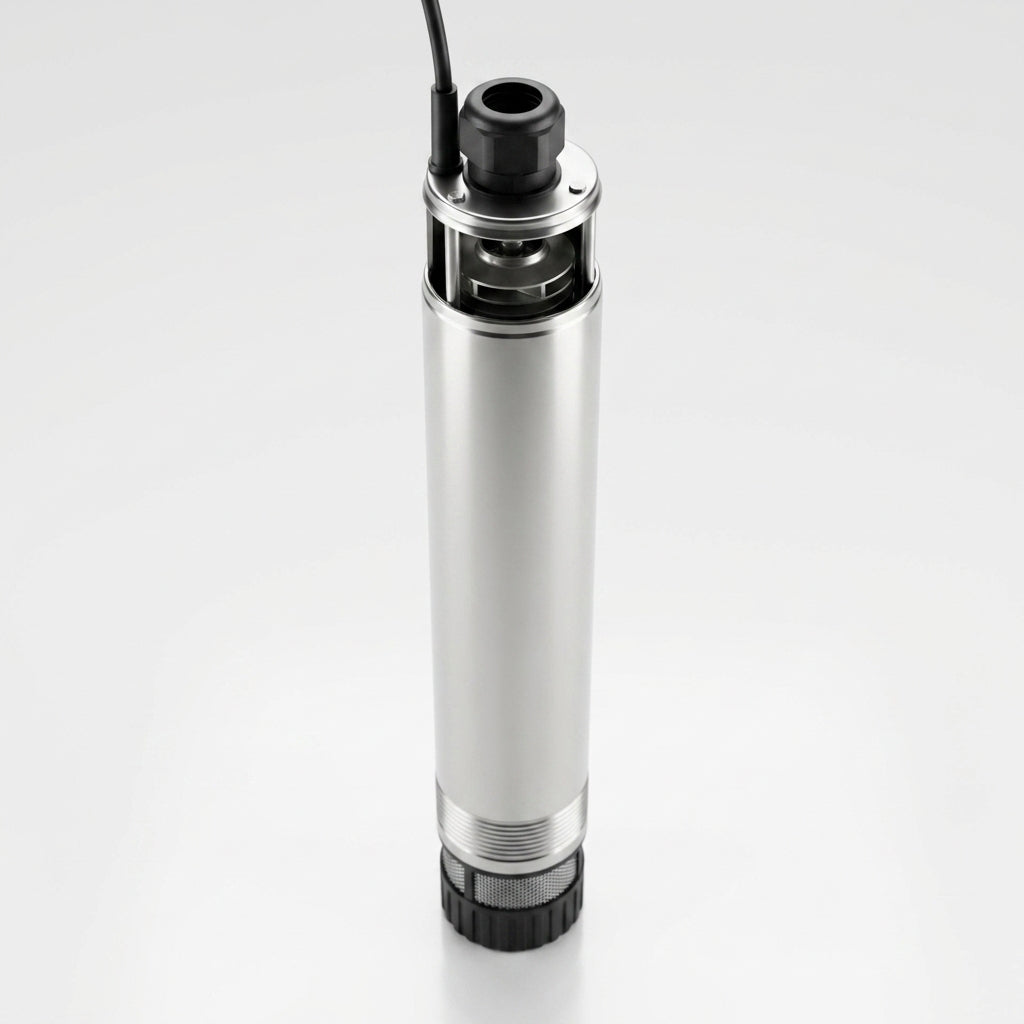

4" Submersible Multistage Well Pump – 115 L/min, 57m Head

Compact 4-inch submersible multistage pump designed for clean water extraction and pressure boosting in wells, boreholes and low-pressure supplies.

This vertically or horizontally-mounted pump combines stainless steel construction with acetal resin impellers for reliable long-term performance in demanding water applications. It features an integrated non-return valve, polycarbonate diffusers, and comes pre-supplied with 20 metres of power cable for immediate installation.

Key Features

• Stainless steel pump casing and suction screen
• Acetal resin impellers with polycarbonate diffusers
• Integrated non-return valve
• Operates vertically or horizontally
• Internal capacitor; 230V 50Hz single phase
• Maximum submersion depth 20 metres

Specifications

• Flow rate: 115 L/min maximum
• Maximum head: 57 metres
• Outlet: 1¼" BSP female
• Maximum liquid temperature: 40°C
• Power cable included: 20 metres
• For clean water only

Applications

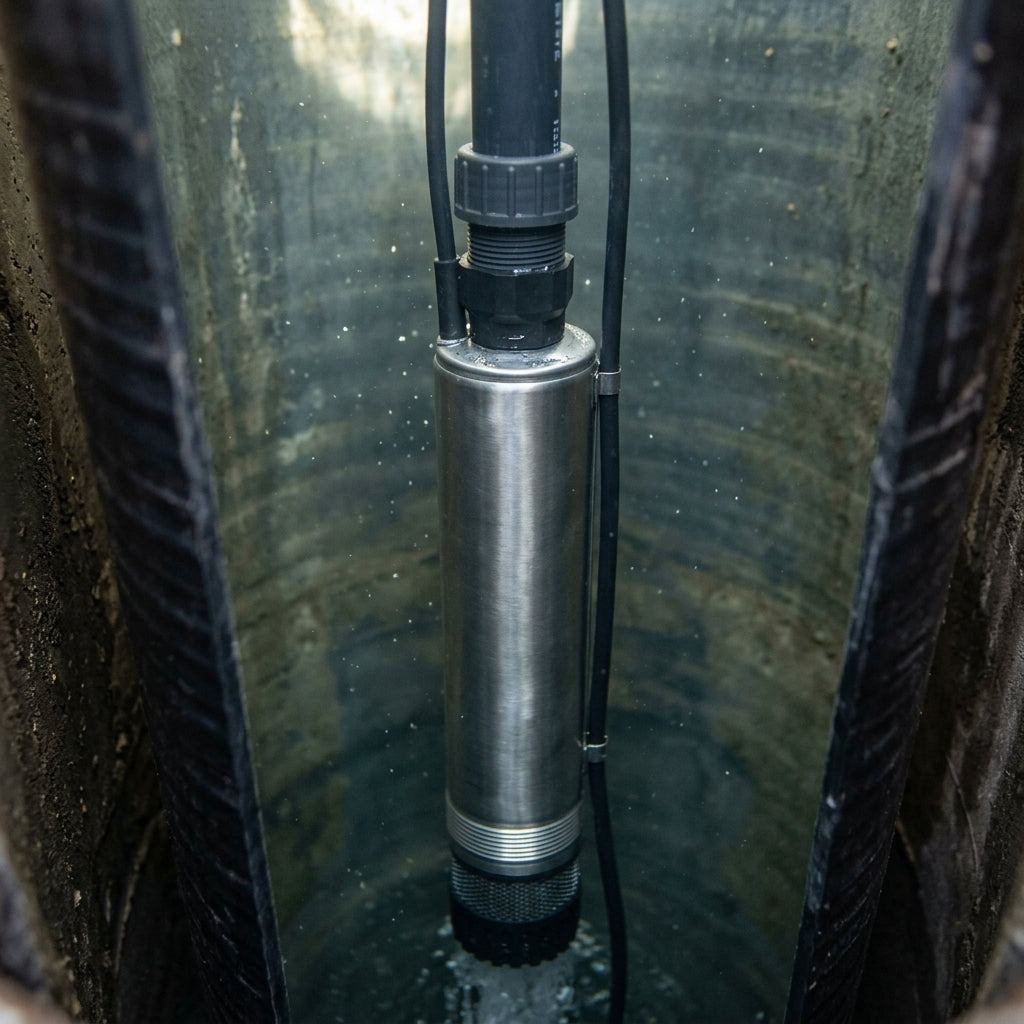

• Borehole and well water extraction
• Pressure system boosting
• River and surface water supply
• Agricultural and domestic water supply
• Emergency and temporary water transfer
