4" Submersible Multistage Well Pump, 55 L/min, 50m Head

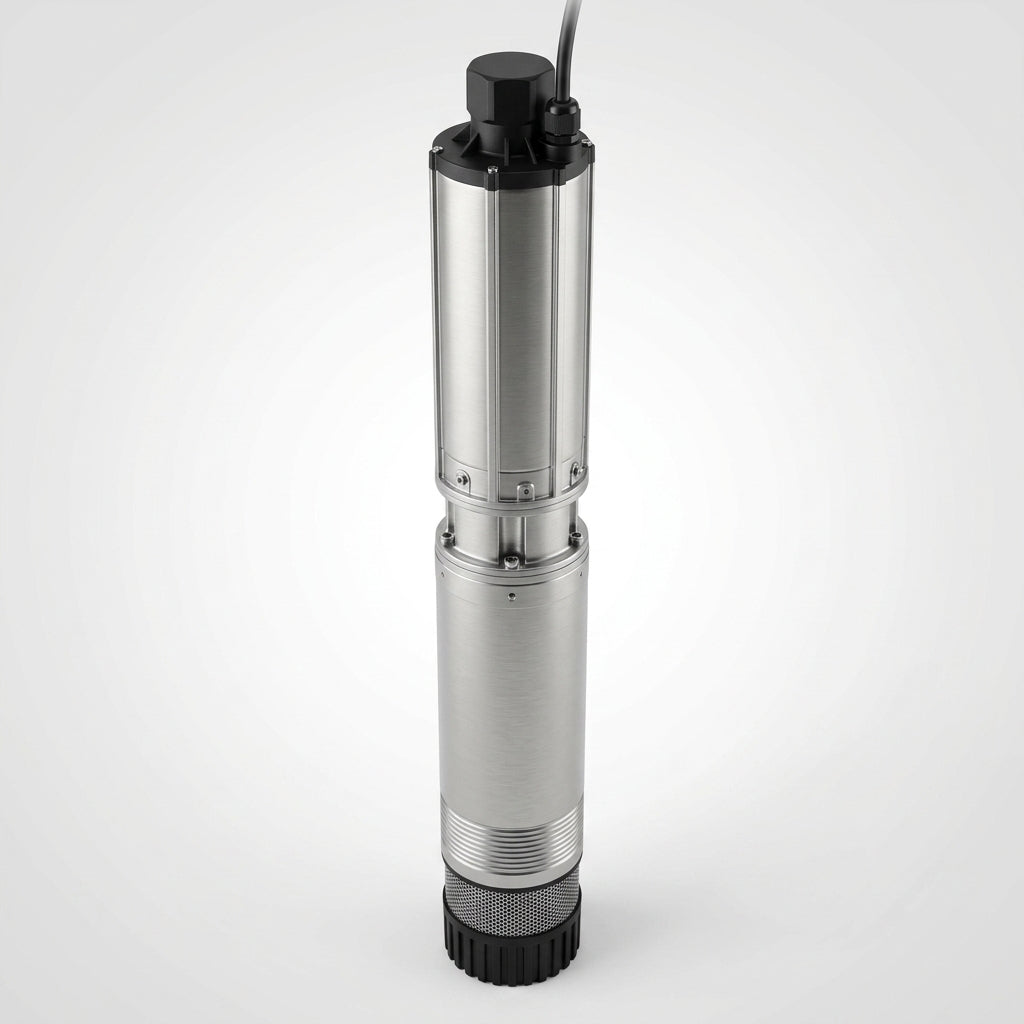

A 4-inch stainless steel submersible multistage pump for well and river water supply applications.

This compact multistage pump is engineered for vertical or horizontal installation in wells and boreholes to boost water pressure or deliver clean water to pressurised systems. The robust construction features stainless steel casing and suction screen with acetal resin impellers and polycarbonate diffusers for reliable long-term performance. An integrated non-return valve prevents backflow when the pump stops.

Key Features

• Stainless steel pump casing and suction screen for corrosion resistance
• Multistage design with acetal resin impellers and polycarbonate diffusers
• Integrated non-return valve
• Operates vertically or horizontally
• Internal capacitor, supplied with 20m power cable
• Clean water only application

Specifications

• Diameter: 4 inches
• Maximum flow rate: 55 L/min
• Maximum head: 50 metres
• Maximum submersion depth: 20 metres
• Maximum liquid temperature: 40°C
• Outlet connection: 1¼" BSP female
• Power supply: 230V 50Hz single phase

Applications

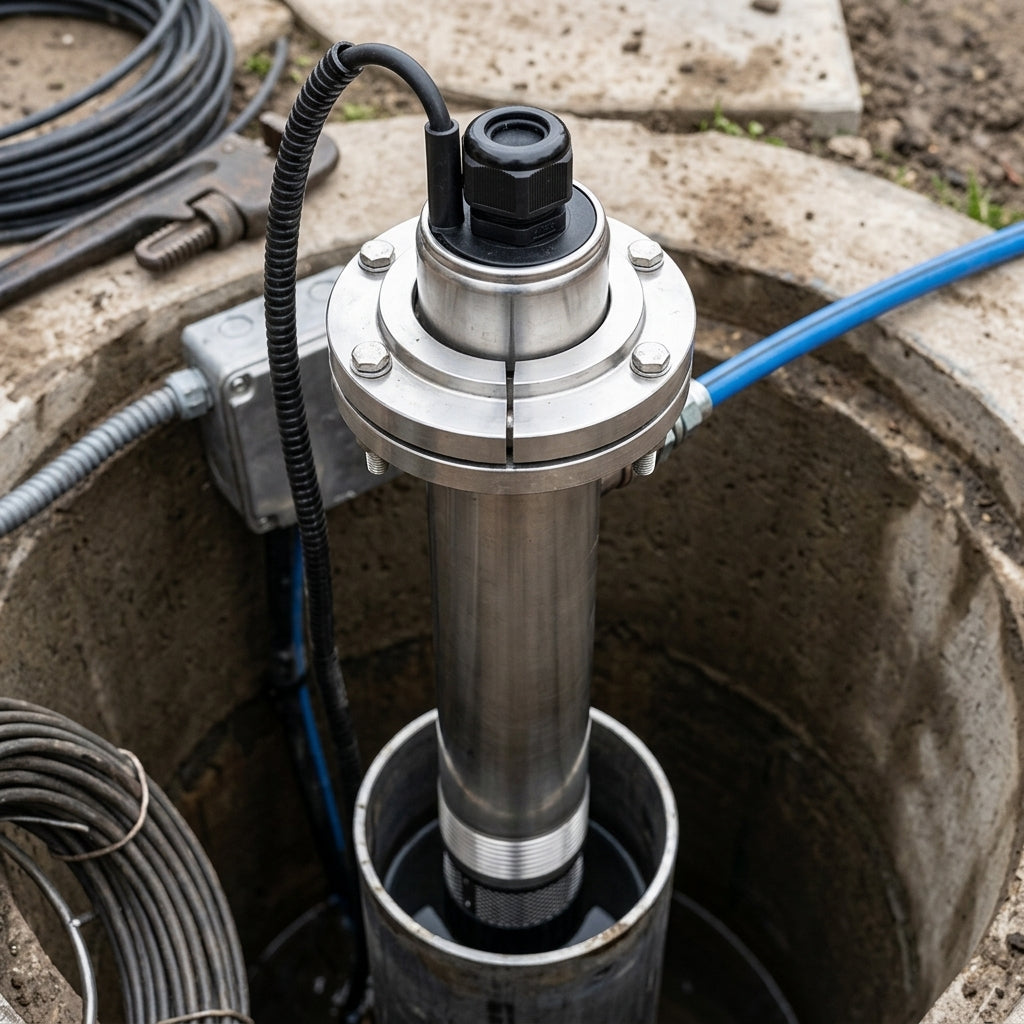

• Domestic well and borehole water supply
• Water pressure boosting systems
• River and surface water extraction
• Pressurised irrigation supply
• Agricultural water distribution
